FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2009
>>
Grand Marquis V8-4.6L Flex Fuel
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic Routines
>>
Torque Converter Clutch (TCC) Operation Concerns 240/340 - 242/342
>>
241/341, Always Applied/Stalls Vehicle
241/341, Always Applied/Stalls Vehicle
4R70E/4R75E
Diagnostic Routines

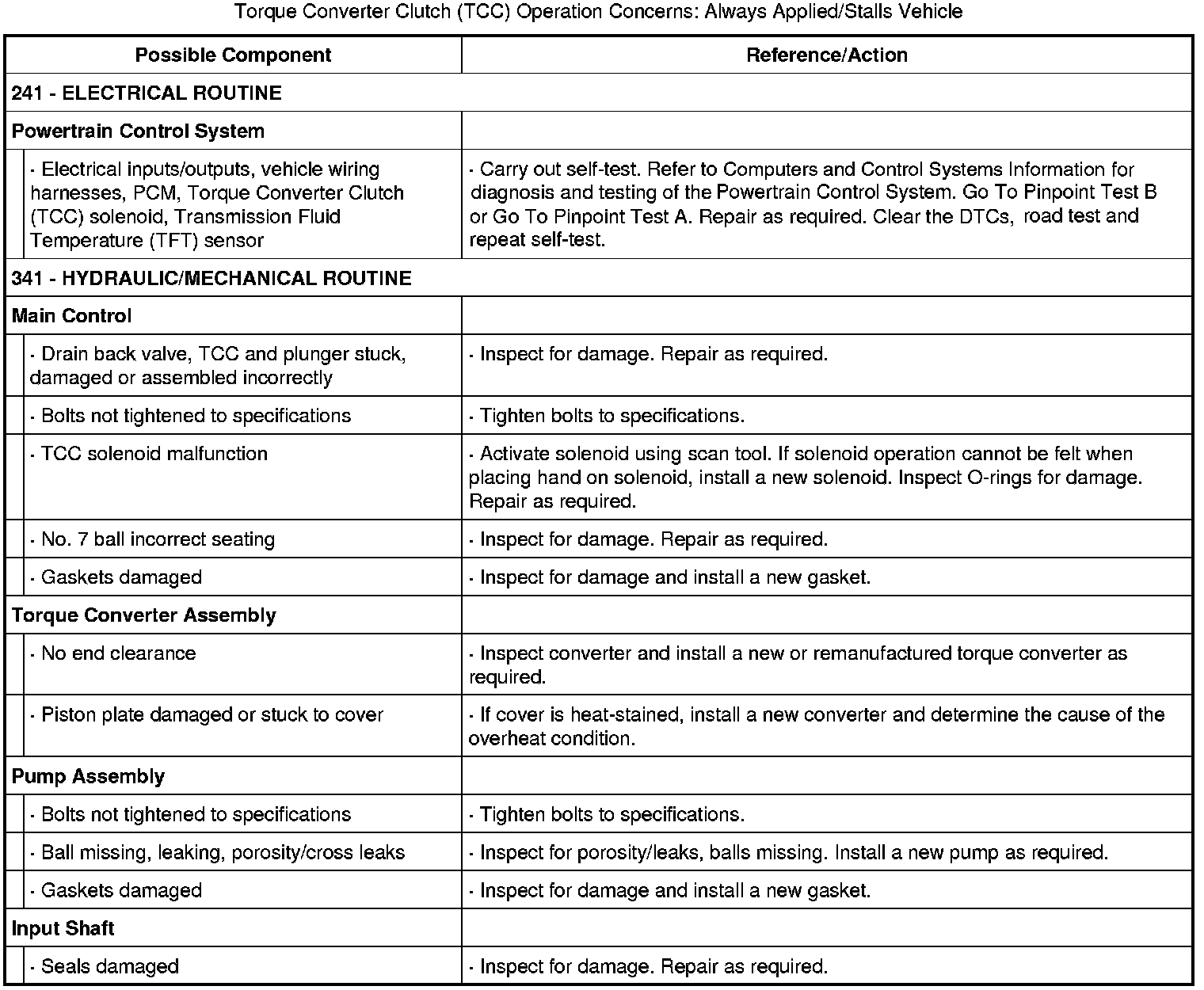

Torque Converter Clutch (TCC) Operation Concerns: Always Applied/Stalls Vehicle:
