Home >> Mercury >> 2009 >> Grand Marquis V8-4.6L Flex Fuel >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> Shift Concerns 210/310 - 225/325 >> 217/317, No Manual 2nd Gear

217/317, No Manual 2nd Gear




4R70E/4R75E

Diagnostic Routines

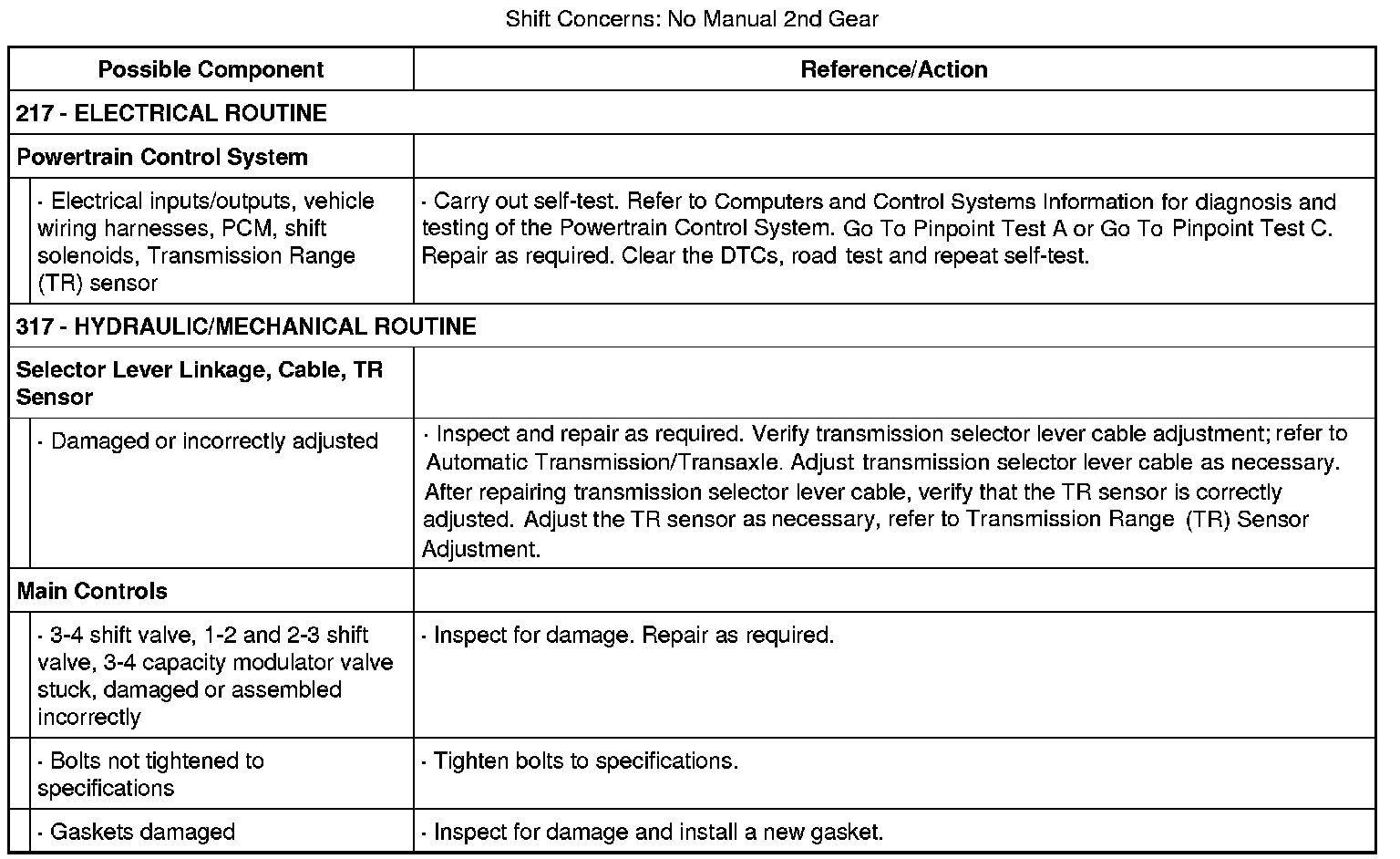

Shift Concerns: No Manual 2nd Gear:
