Engine Control Module: Diagrams

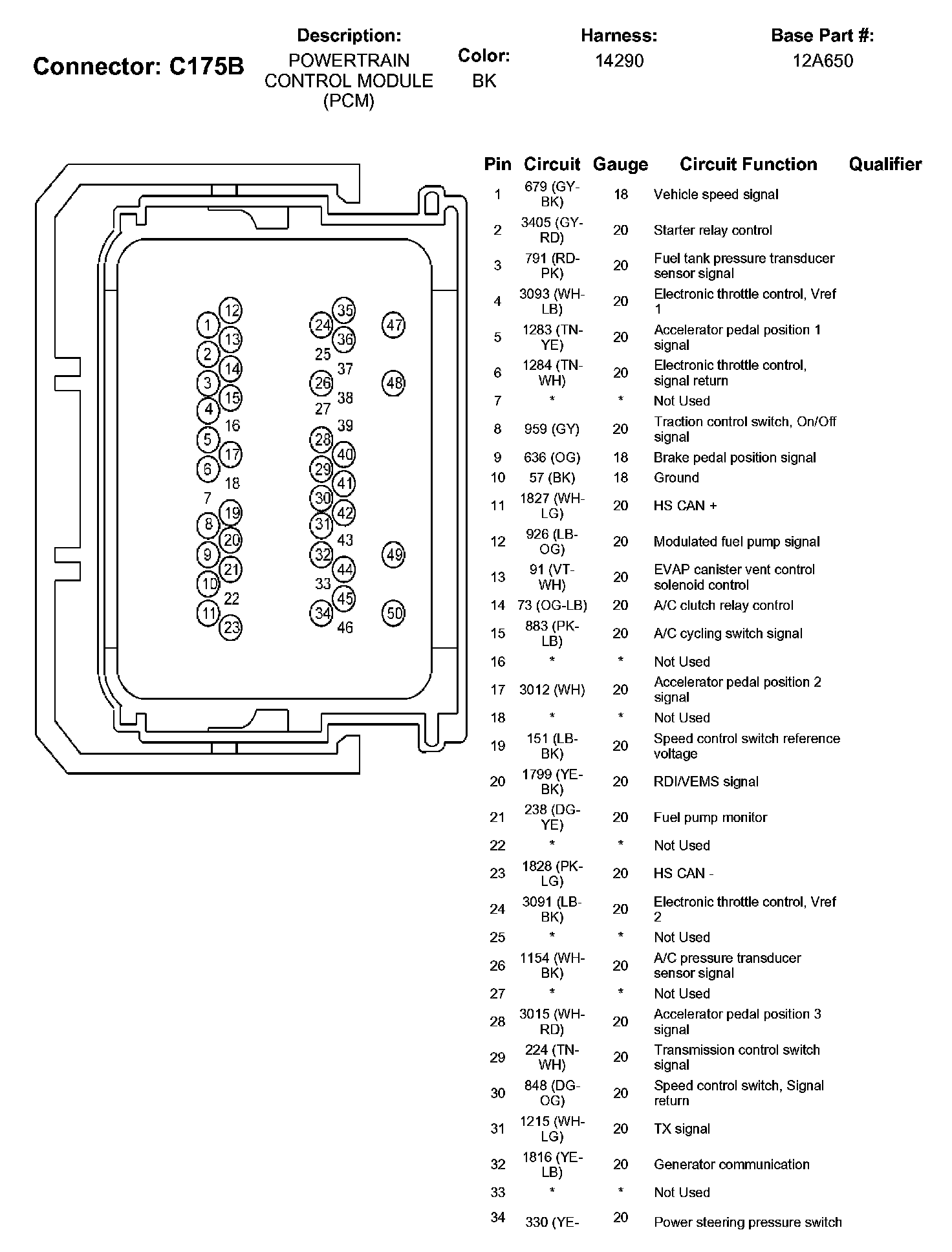

C175B Part 1:

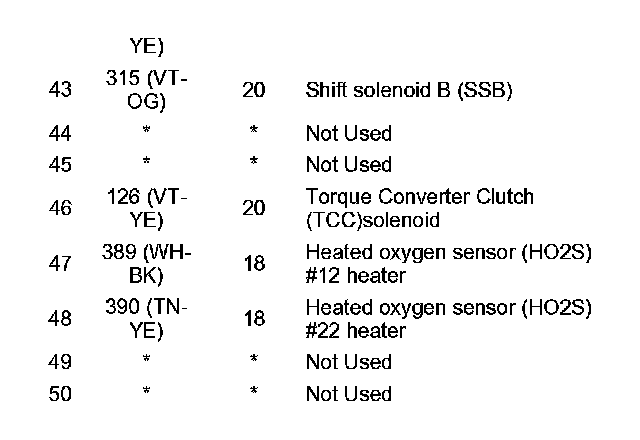

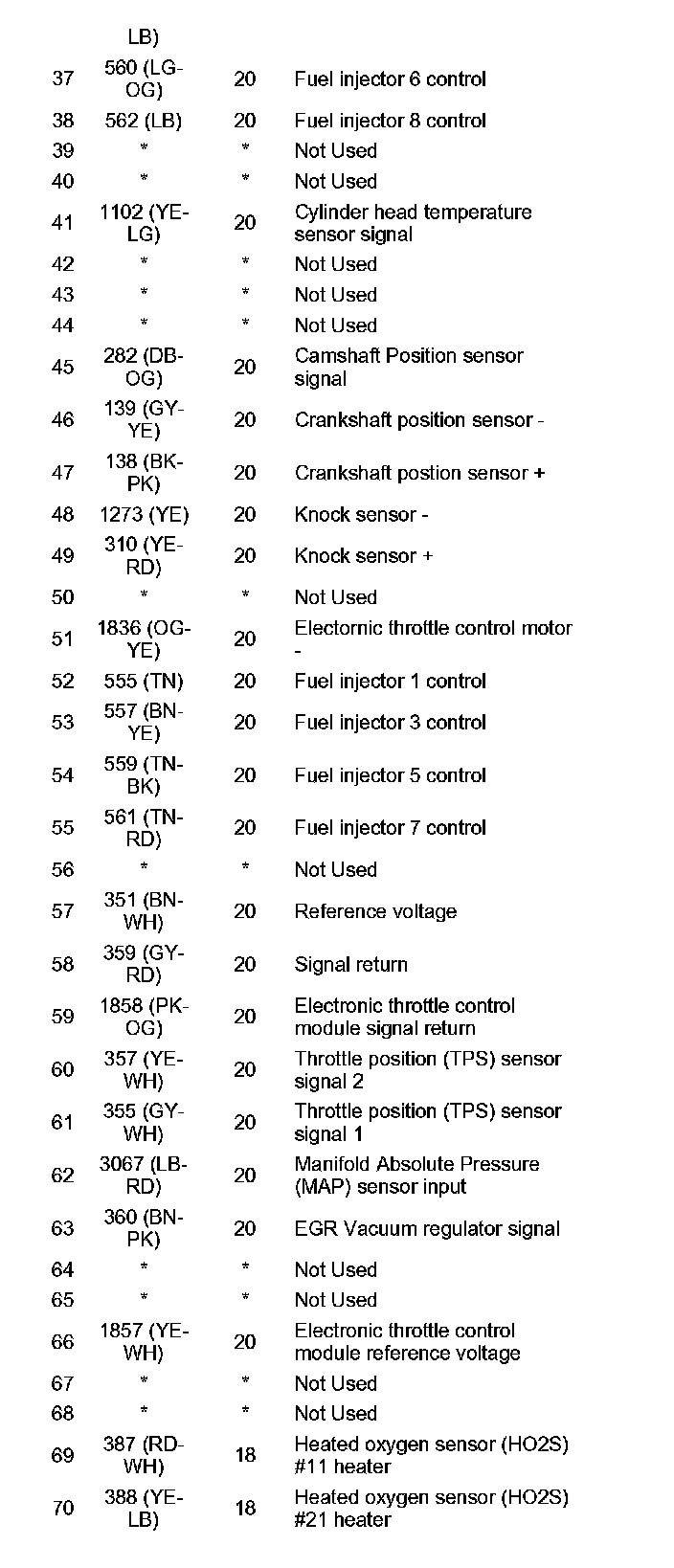

C175B Part 2:

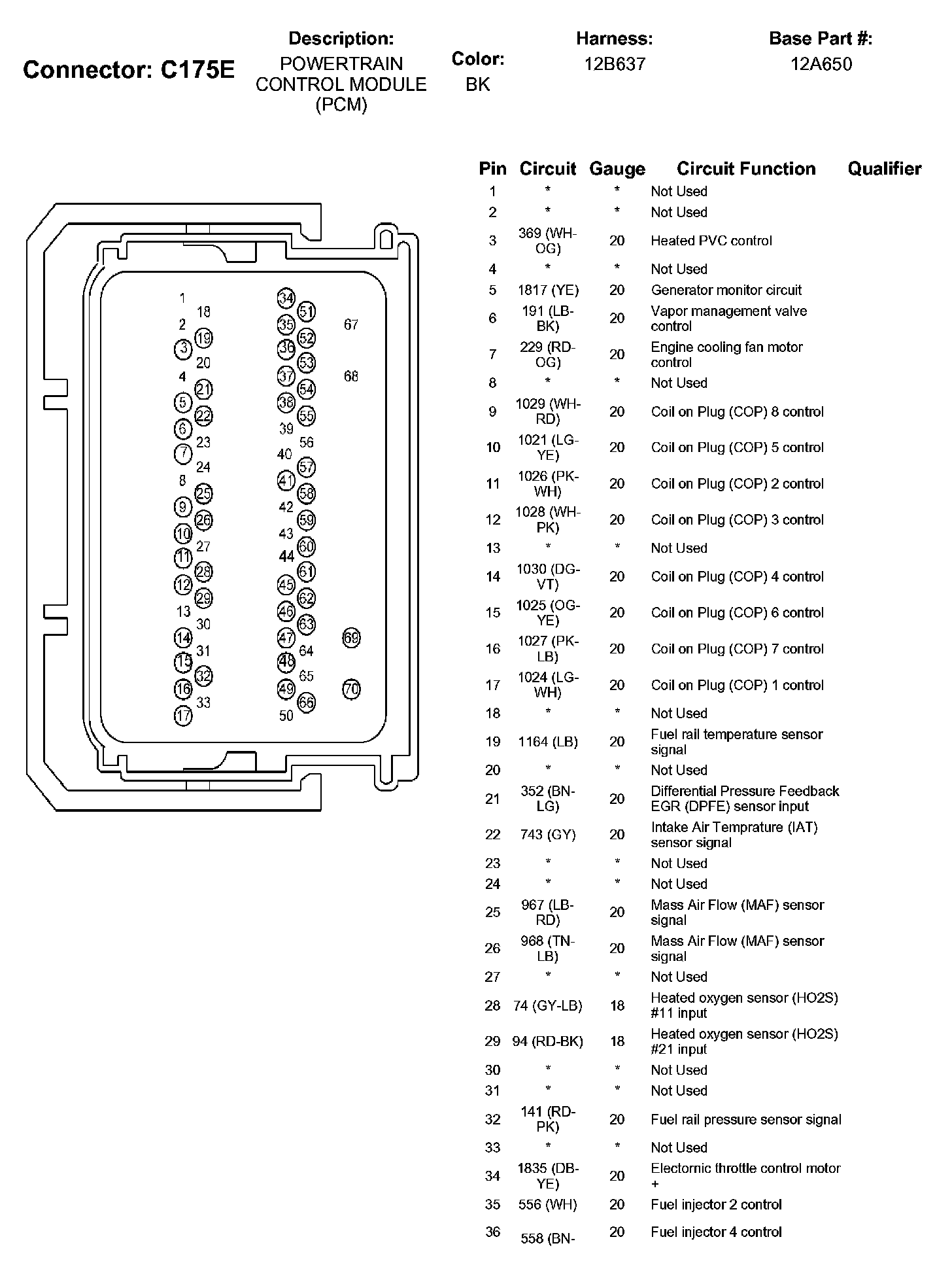

C175E Part 1:



C175E Part 2:

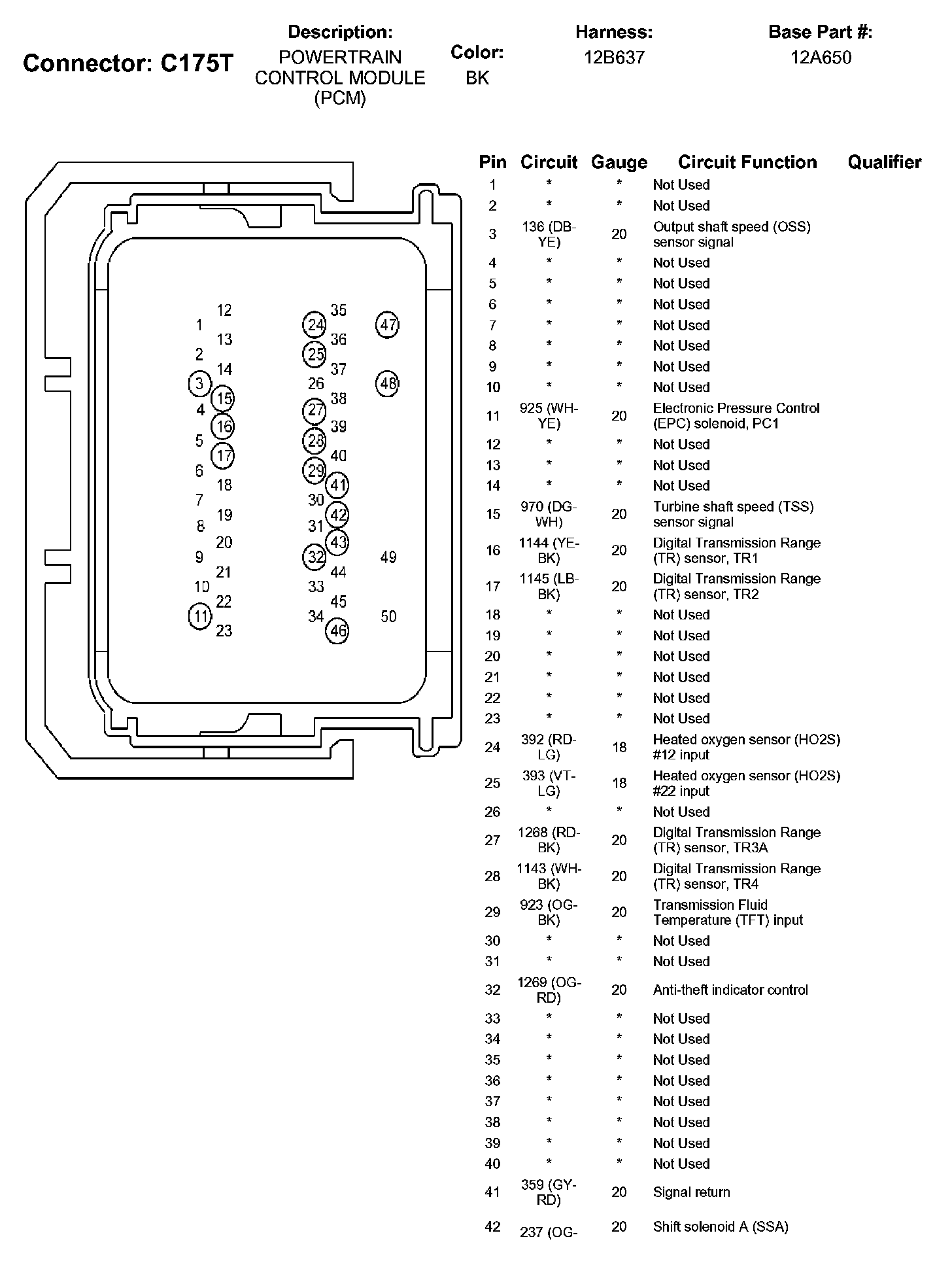

C175T Part 1:

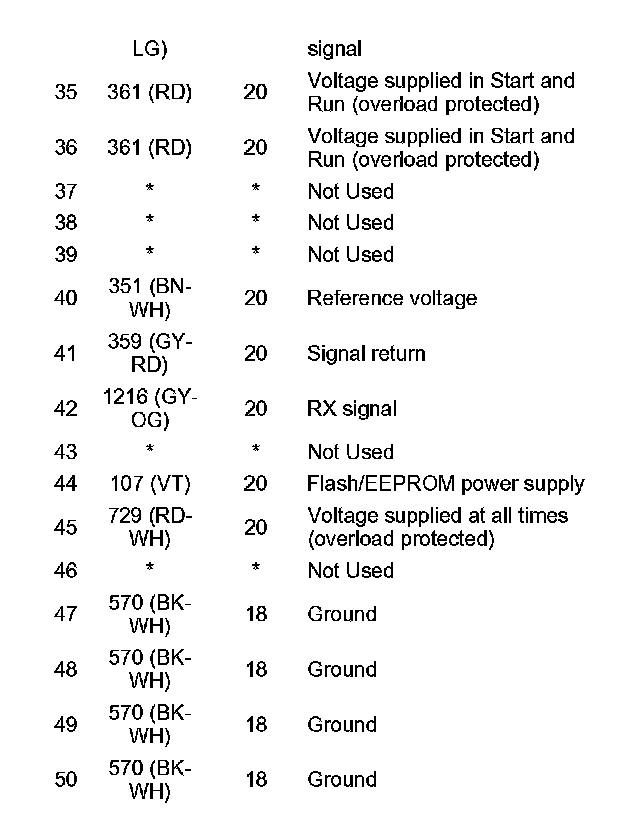

C175T Part 2:
