Wiper Motor - Windshield

WIPER MOTOR - WINDSHIELD

Exploded View

Front Wipers:

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation

NOTE: A new wiper motor assembly comes with the linkage arm installed.

1. Remove the wiper mounting arm and pivot shaft assembly.

2. CAUTION: Do not remove the wiper motor linkage arm from the wiper motor assembly. If the arm is removed, the wiper arms may not park in the correct location.

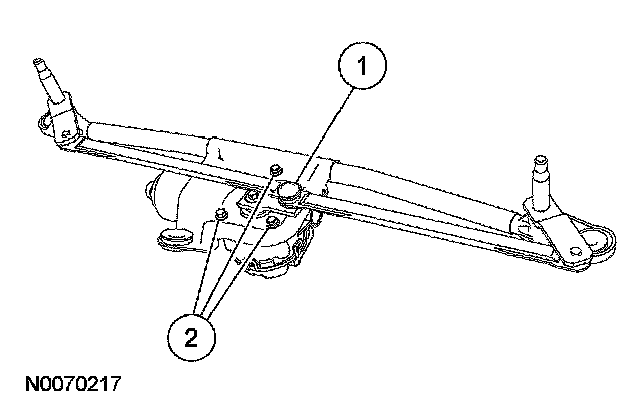

Remove the windshield motor.
1 Use a suitable tool at the location shown to separate the wiper motor linkage arm from the wiper pivot arm linkage.
2 Remove the 3 bolts.
- To install, tighten to 18 Nm (13 lb-ft).







3. To install, reverse the removal procedure.
