Wiper Motor - Rear Window

WIPER MOTOR - REAR WINDOW

Exploded View

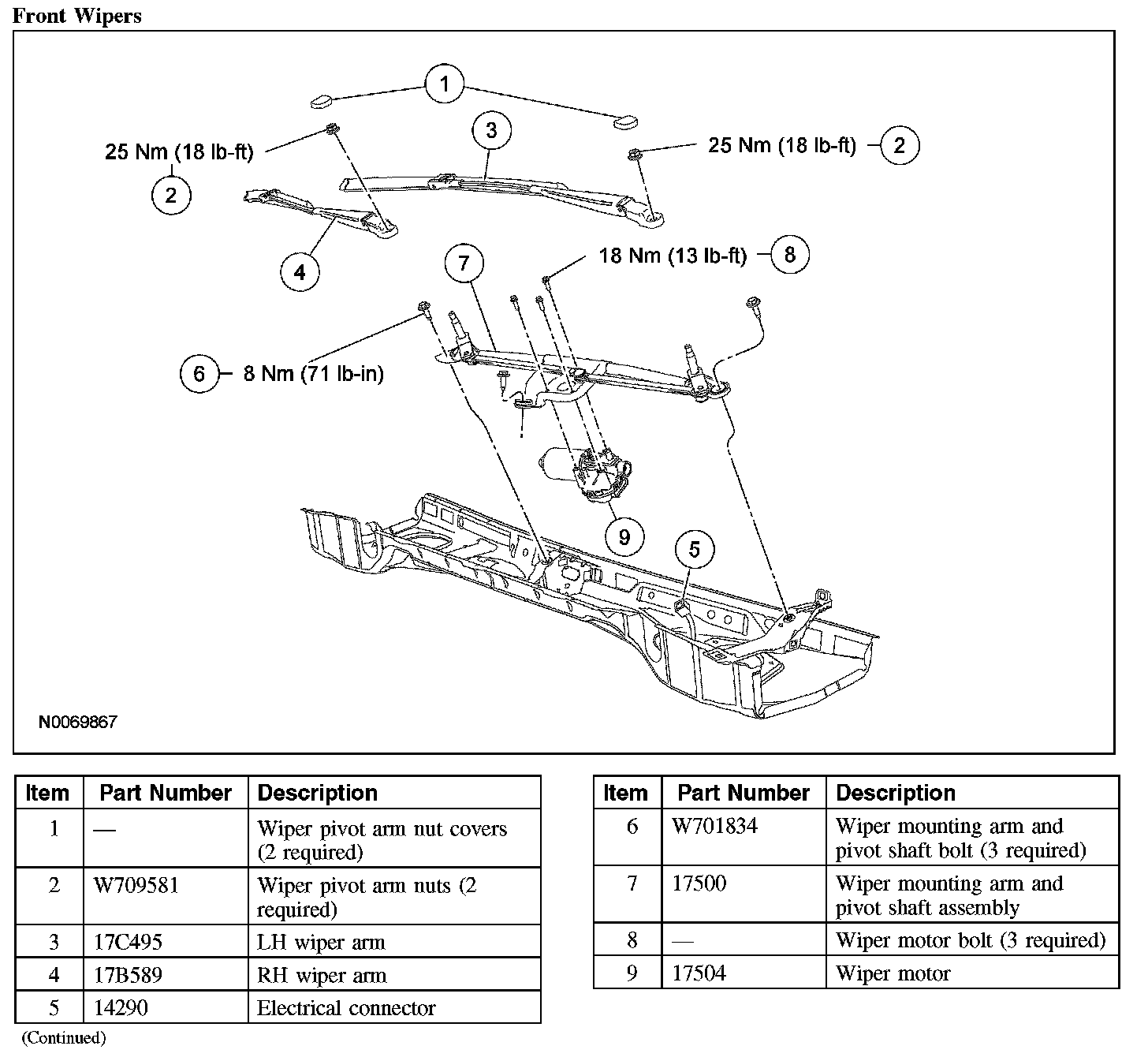

Front Wipers:

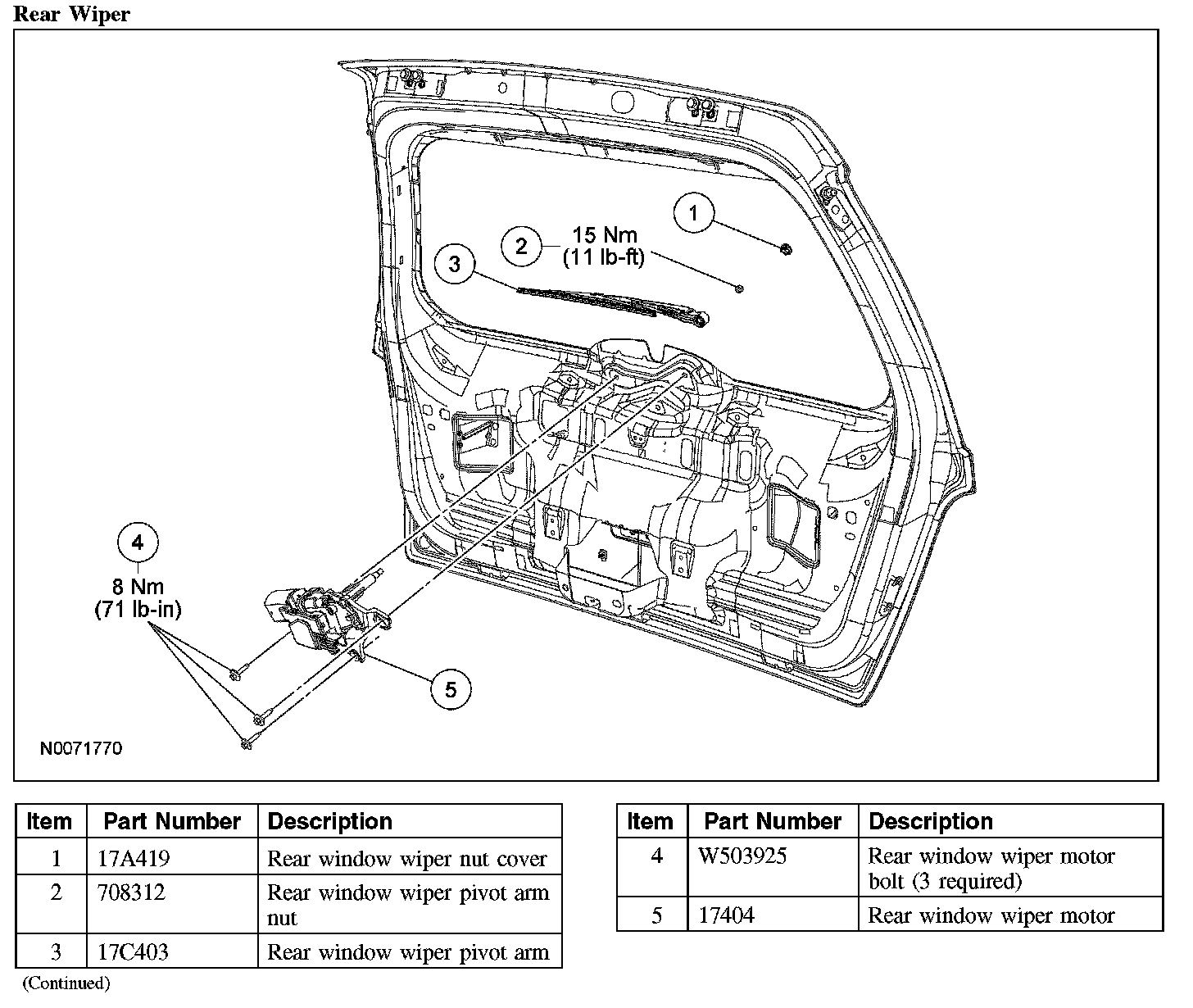

Rear Wiper:

Washer Pump And Reservoir:

Removal and Installation
1. Remove the rear wiper pivot arm.
2. Remove the liftgate trim panel.

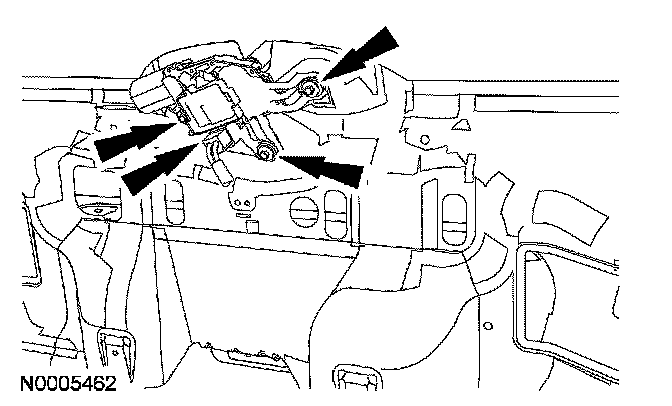

3. Remove the rear window wiper motor assembly.
- Disconnect the electrical connector.
- Remove the 3 bolts.
- To install, tighten to 8 Nm (71 lb-in).







4. To install, reverse the removal procedure.
