Test G: The Intermittent Wiper Speed Does Not Operate Correctly - Windshield

PINPOINT TEST G: THE INTERMITTENT WIPER SPEED DOES NOT OPERATE CORRECTLY - WINDSHIELD

Normal Operation
Under normal operation, the windshield wiper motor receives open and ground inputs from the multi-function switch through circuits CRW17 (GN/VT), CRW18 (VT/WH), CRW19 (BU/OG) and CRW08 (VT/OG) to activate the wipers to the appropriate speeds.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Multi-function switch
- Windshield wiper motor

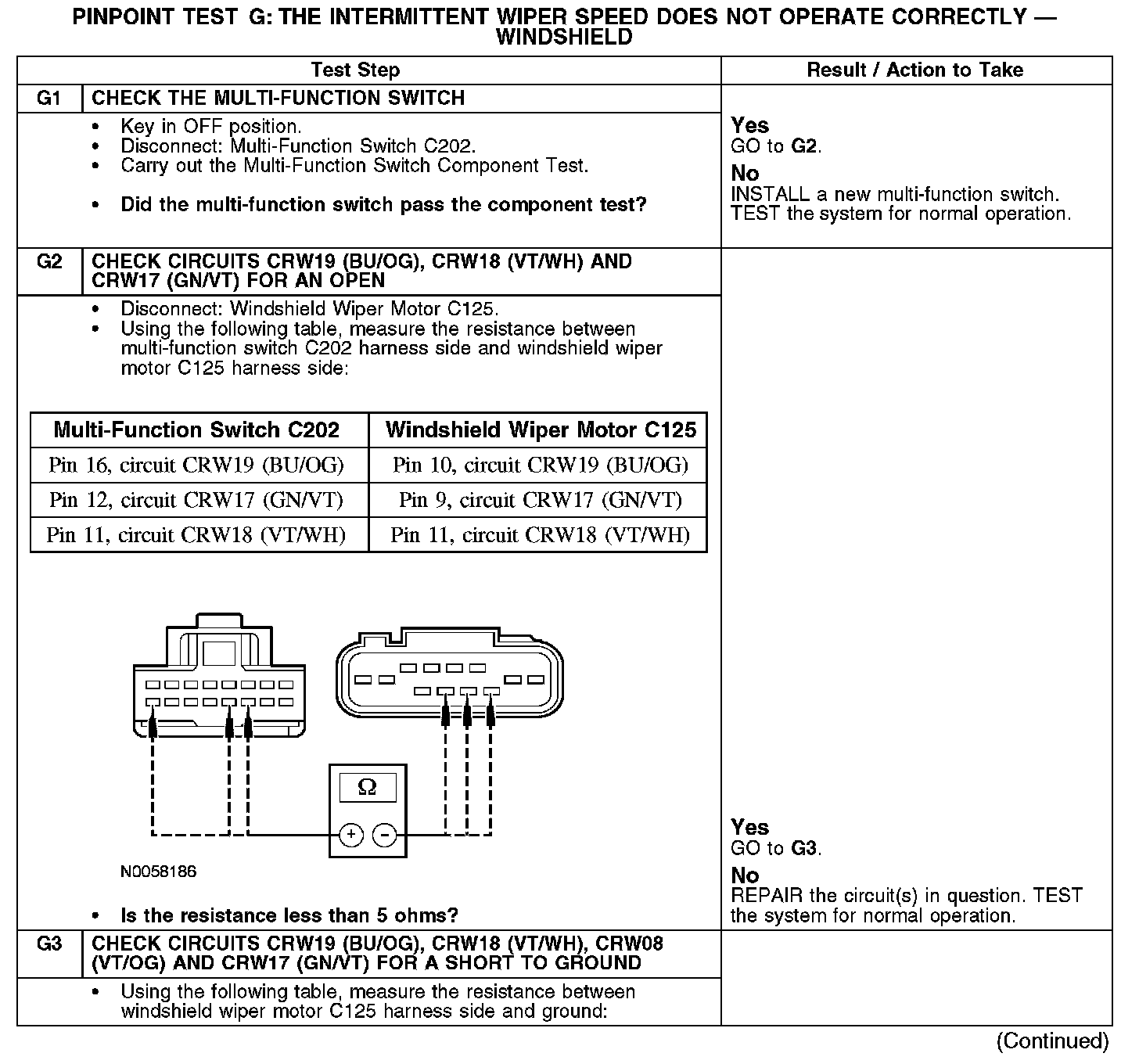

G1-G3:

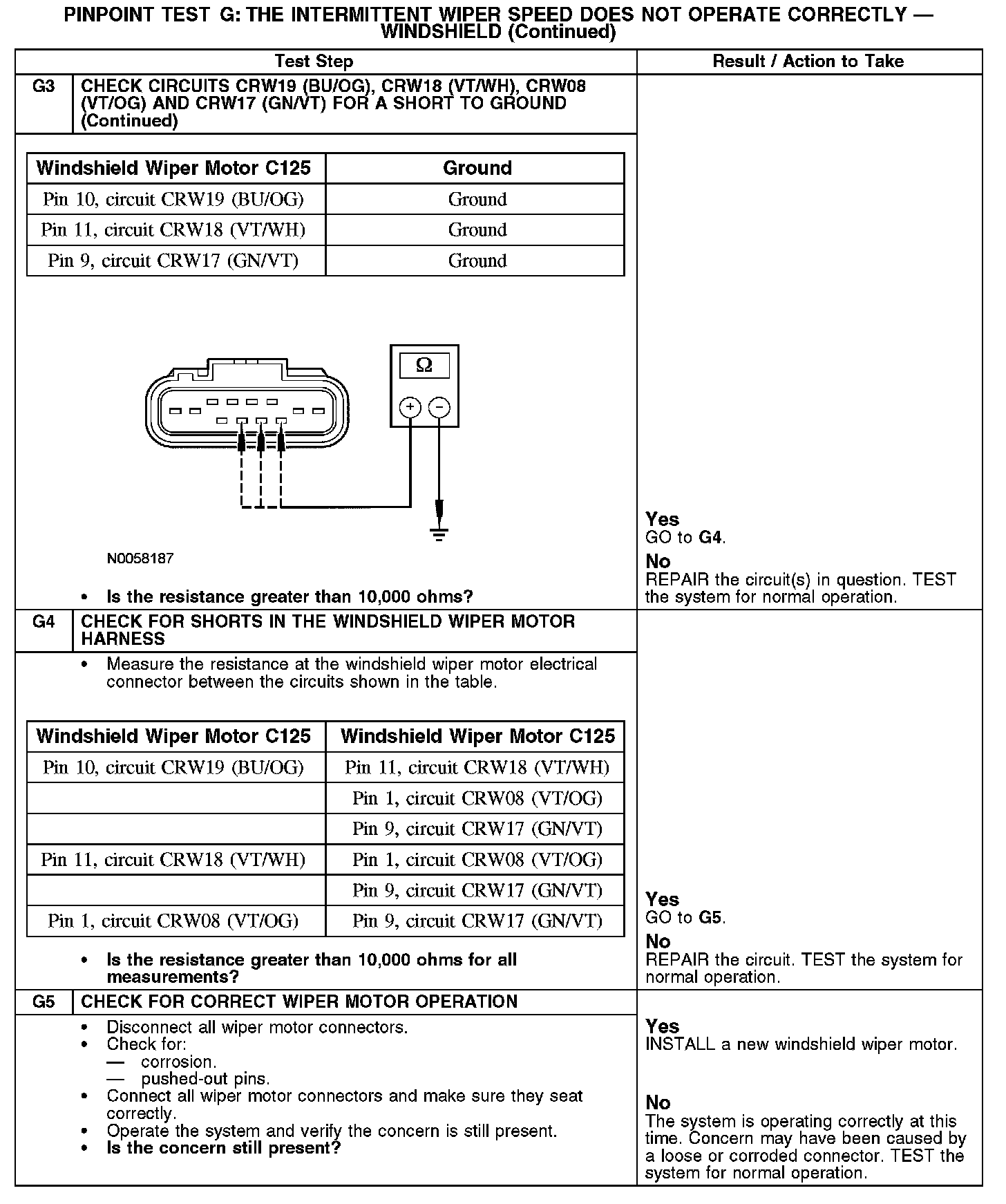

G3-G5:
