Test E: The High/Low Wiper Speeds Do Not Operate Correctly - Windshield

PINPOINT TEST E: THE HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY - WINDSHIELD

Normal Operation
Under normal operation, the windshield wiper motor receives open and ground inputs from the multi-function switch through circuits CRW17 (GN/VT), CRW18 (VT/WH), CRW19 (BU/OG) and CRW08 (VT/OG) to activate the wipers to the appropriate speeds.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Windshield wiper motor
- Multi-function switch

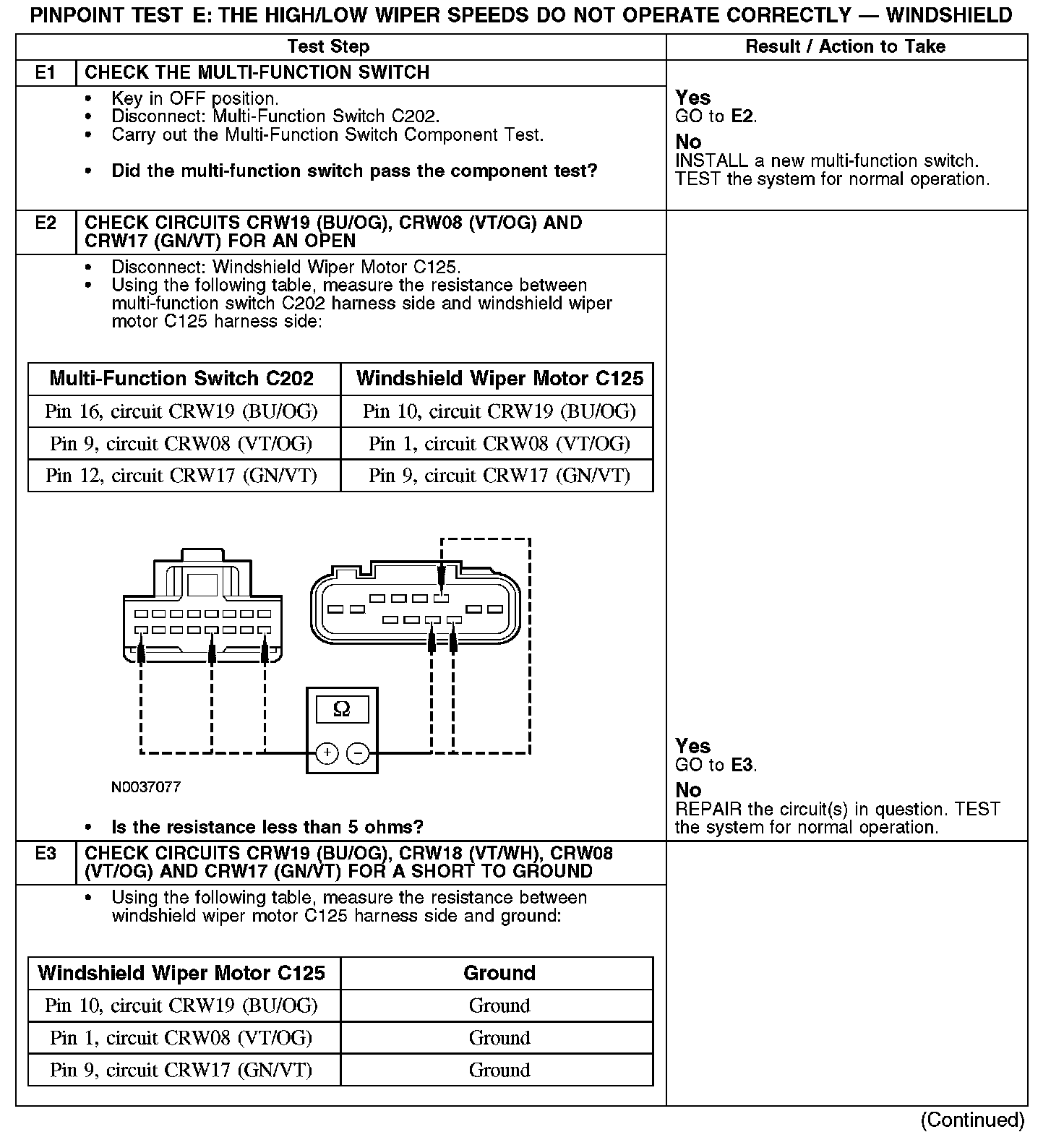

E1-E3:

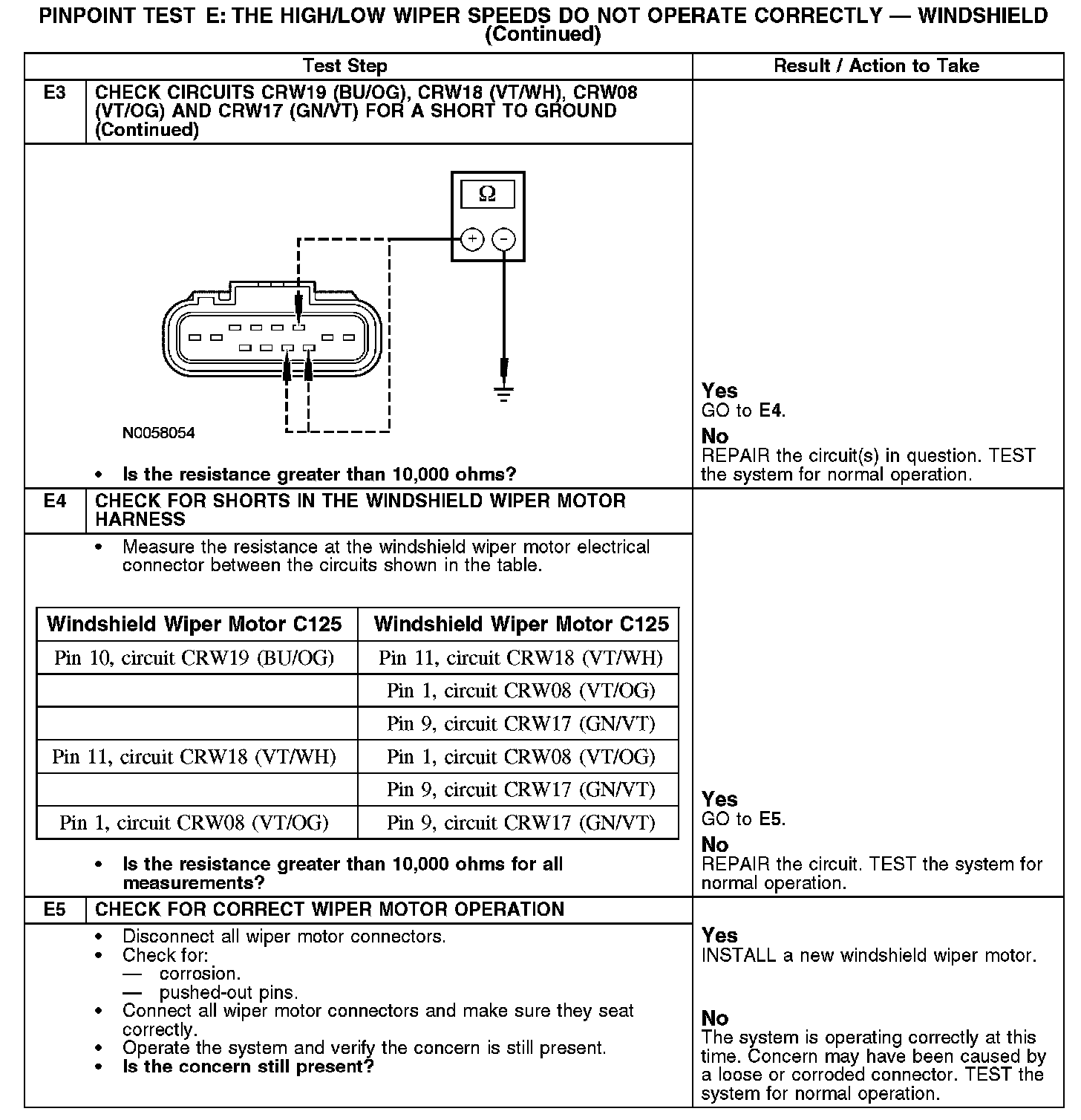

E3-E5:
