Rear Door Window Glass Weatherstrip: Service and Repair

DOOR GLASS RUN AND BRACKET - REAR

Exploded View







Removal and Installation
1. Remove the rear door trim panel.
2. Remove the rear door module.
3. Lower the rear door window glass into the door.

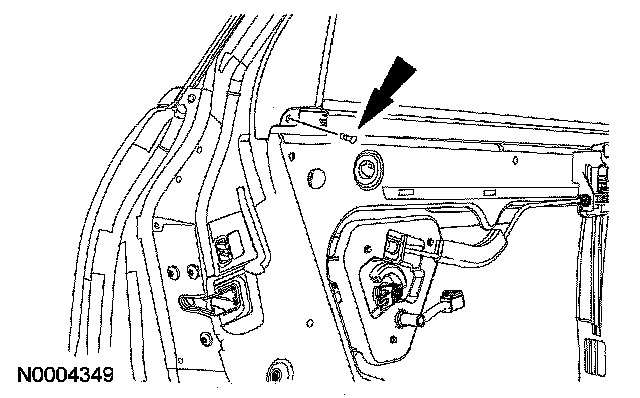

4. Remove the scrivet.

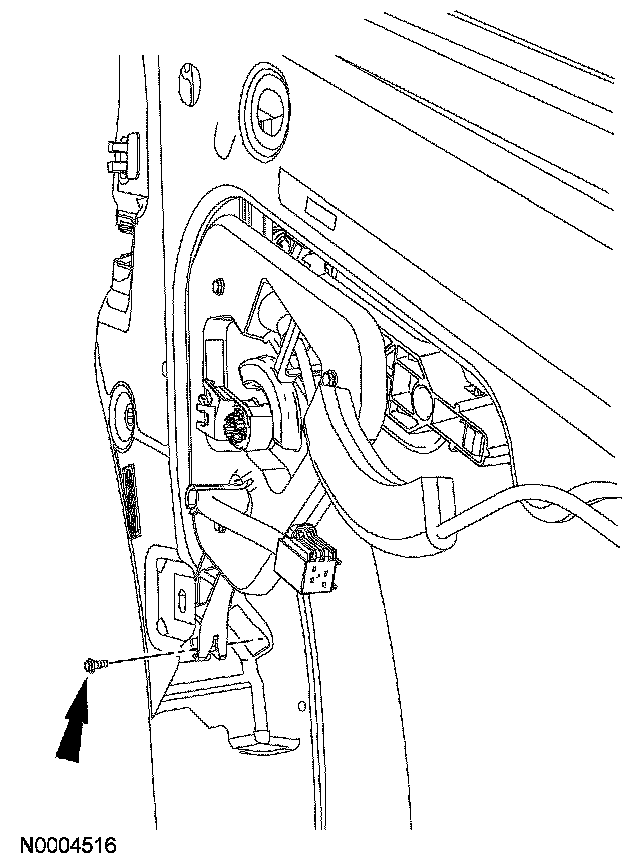

5. Remove the rear door glass top run bolt.







6. Remove the rear door glass inner weatherstrip.
7. Carefully position the glass aside, then remove the rear door glass top run.
8. To install, reverse the removal procedure.
