Test I: The Delayed Accessory Does Not Turn Off
PINPOINT TEST I: THE DELAYED ACCESSORY DOES NOT TURN OFFNormal Operation
The accessory delay relay is located in the smart junction box (SJB). When the ignition key is turned ON, the SJB activates the accessory delay relay, which provides power to the LH front window switch through circuit CBP47 (GN/BU). The delayed accessory feature remains active for 10 minutes after the ignition key is turned OFF or until either front door is opened.
- DTC B1304 Accessory Delay Relay Coil Circuit Short to Battery - short to ground on output.
This pinpoint test is intended to diagnose the following:
- Accessory delay relay
- Wiring, terminals or connections
- SJB

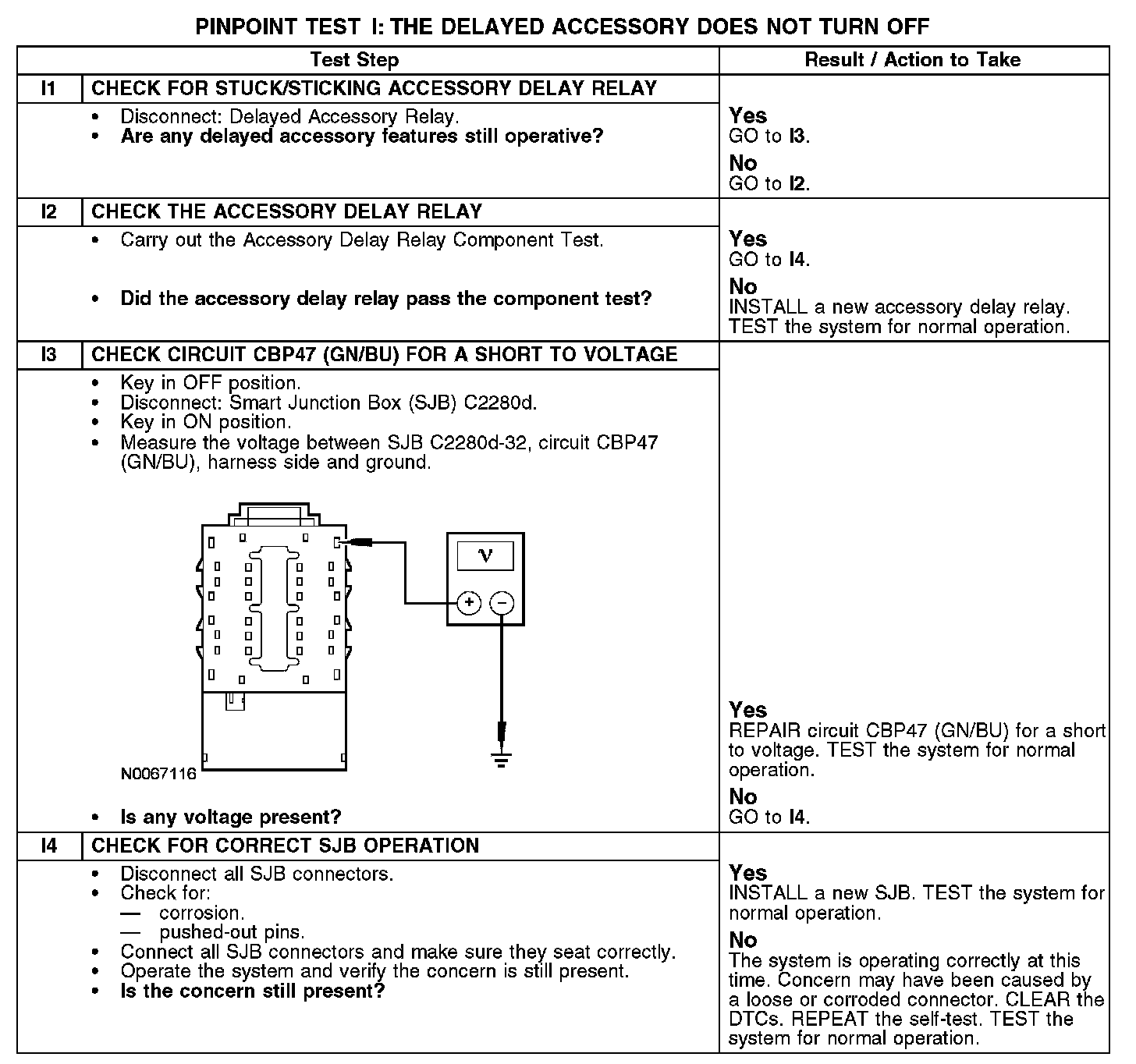

I1-I4:
