Test C: A Single Power Window Is Inoperative - RH Front

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - RH FRONT

Normal Operation
The RH front window control switch receives delayed accessory power through circuit CPW14 (VT/WH) when the window lock switch on the LH front window control switch is set to the unlock position, and the delayed accessory feature is active. When the RH front window control switch is pressed to the down position, the RH front window control switch receives ground from the LH front window switch through circuit CPW13 (BN/YE). When operating the RH front window in the down direction, the RH front window control switch supplies power to the RH front window motor through circuit CPW19 (VT) and ground through circuit CPW20 (WH/OG).

When the RH front window control switch is pressed to the up position, the RH front window control switch receives ground from the LH front window switch through circuit CPW12 (GN/OG). When operating the RH front window in the up direction, the RH front window control switch provides power to the RH front window motor through circuit CPW20 (WH/OG) and ground through circuit CPW19 (VT).

RH Front Window Operation From LH Front Switch
When the RH front power window is operated in the up direction from the LH front window control switch, power is sent to the RH front window control switch through circuit CPW13 (BN/YE), which transfers power to the RH front window motor through circuit CPW20 (WH/OG). Ground is provided to the RH front window switch through circuit CPW12 (GN/OG), which transfers ground to the RH front window motor through circuit CPW19 (VT).

When the RH front power window is operated in the down direction from the LH front window control switch, power is sent to the RH front window control switch through circuit CPW12 (GN/OG), which transfers power to the front window motor through circuit CPW19 (VT). Ground is provided to the RH front window switch through circuit CPW13 (BN/YE), which transfers ground to the RH front window motor through circuit CPW20 (WH/OG).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- LH front window control switch
- RH front window control switch
- RH front window motor

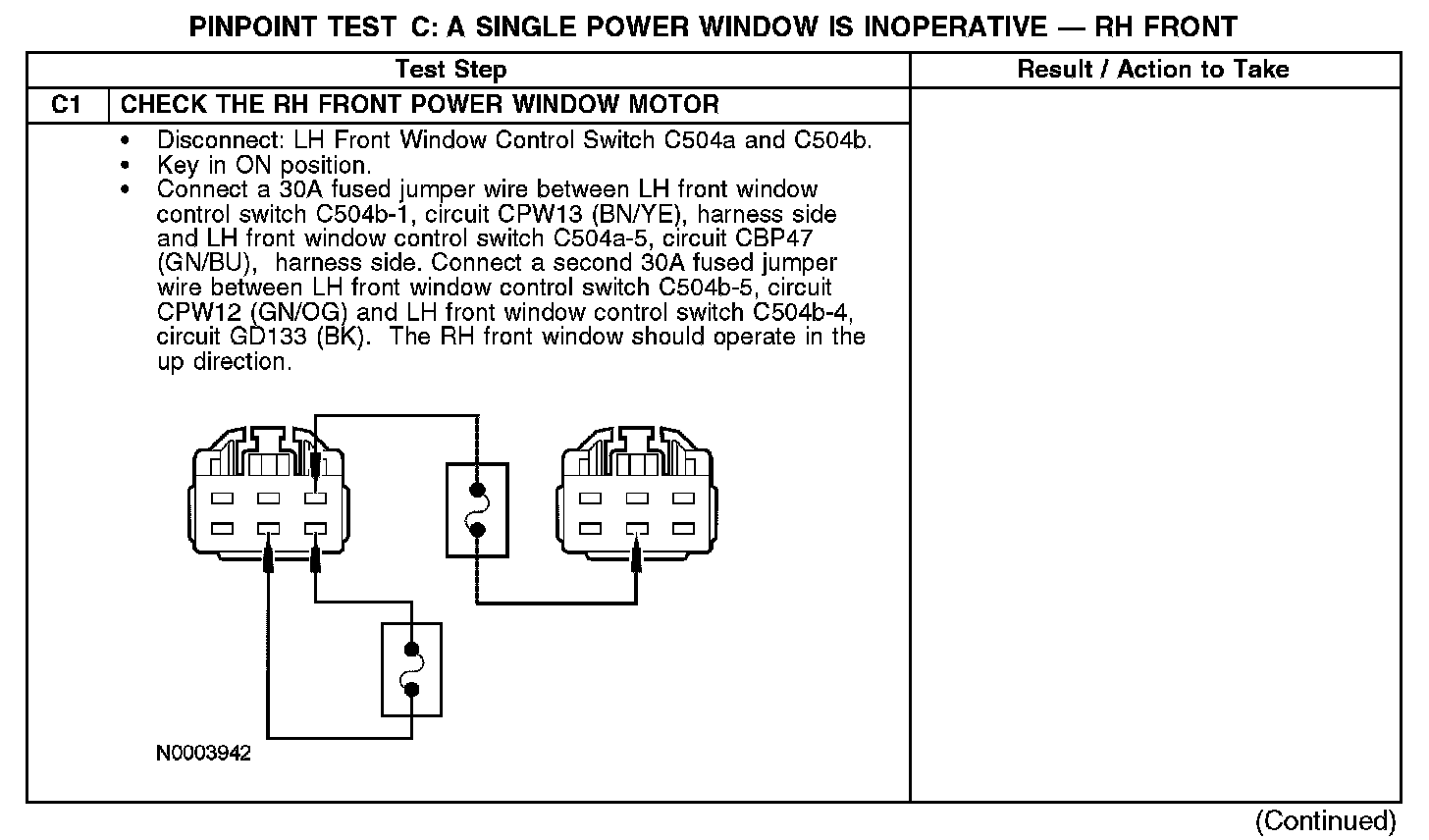

C1:

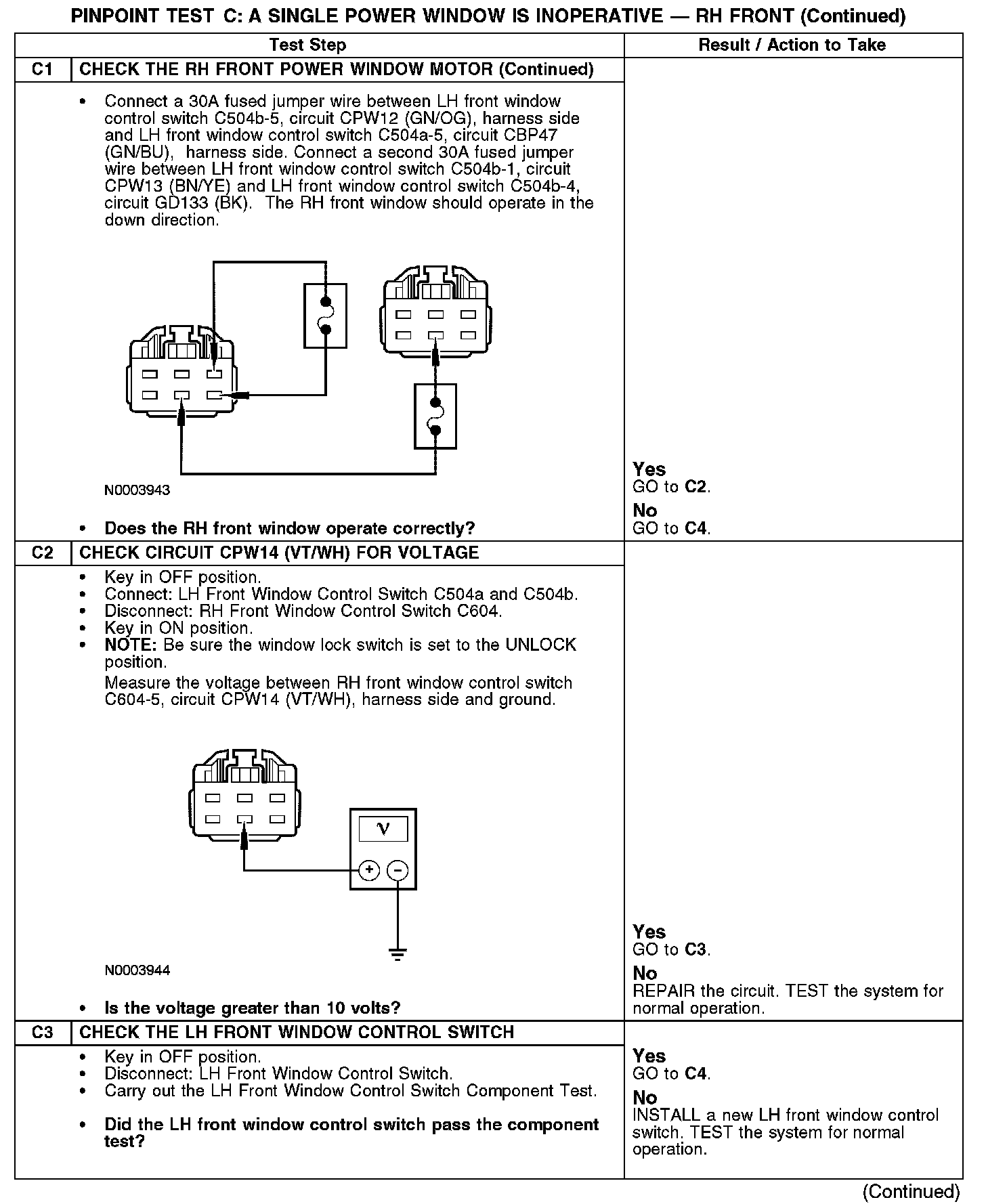

C1-C3:

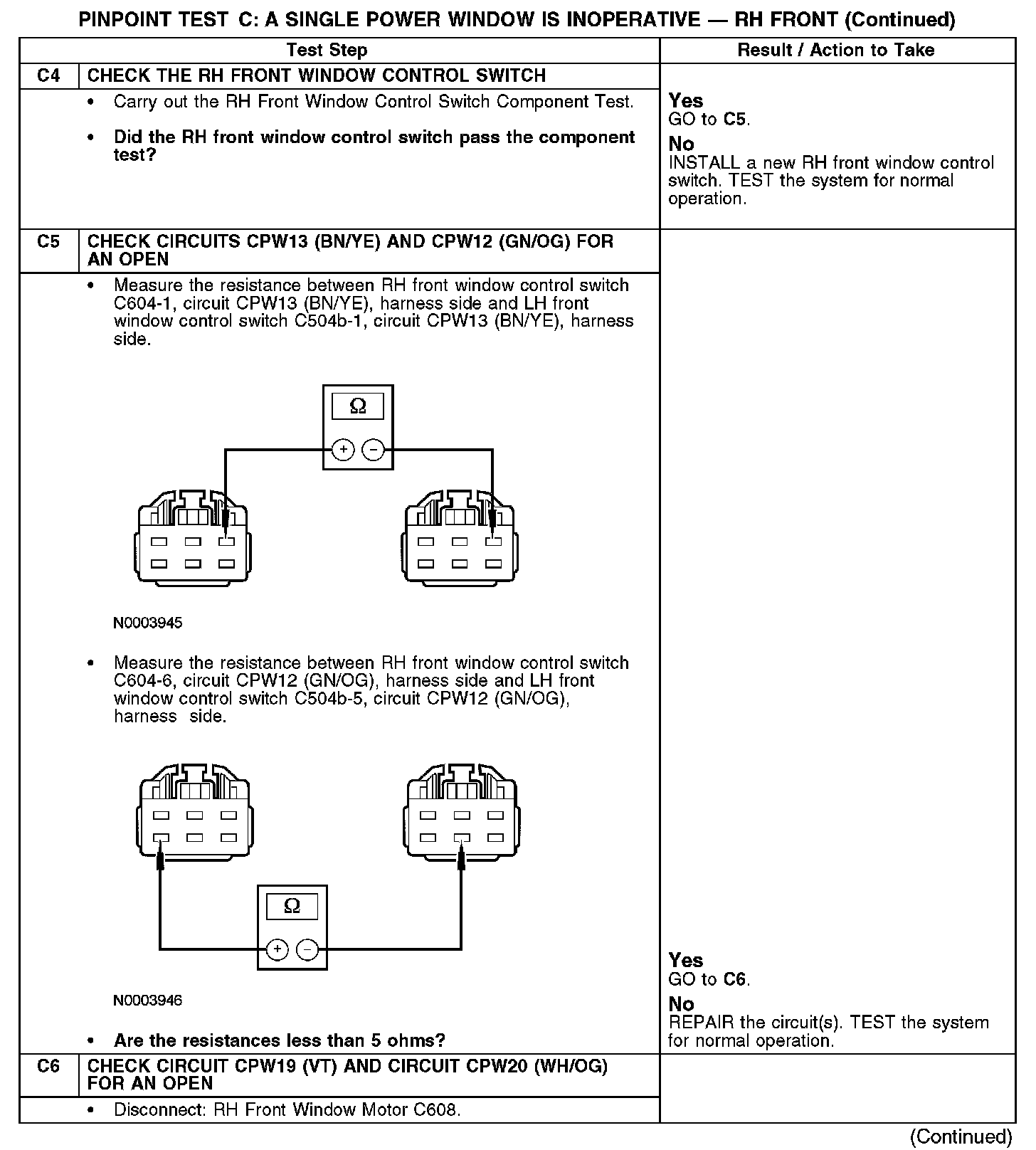

C4-C6:

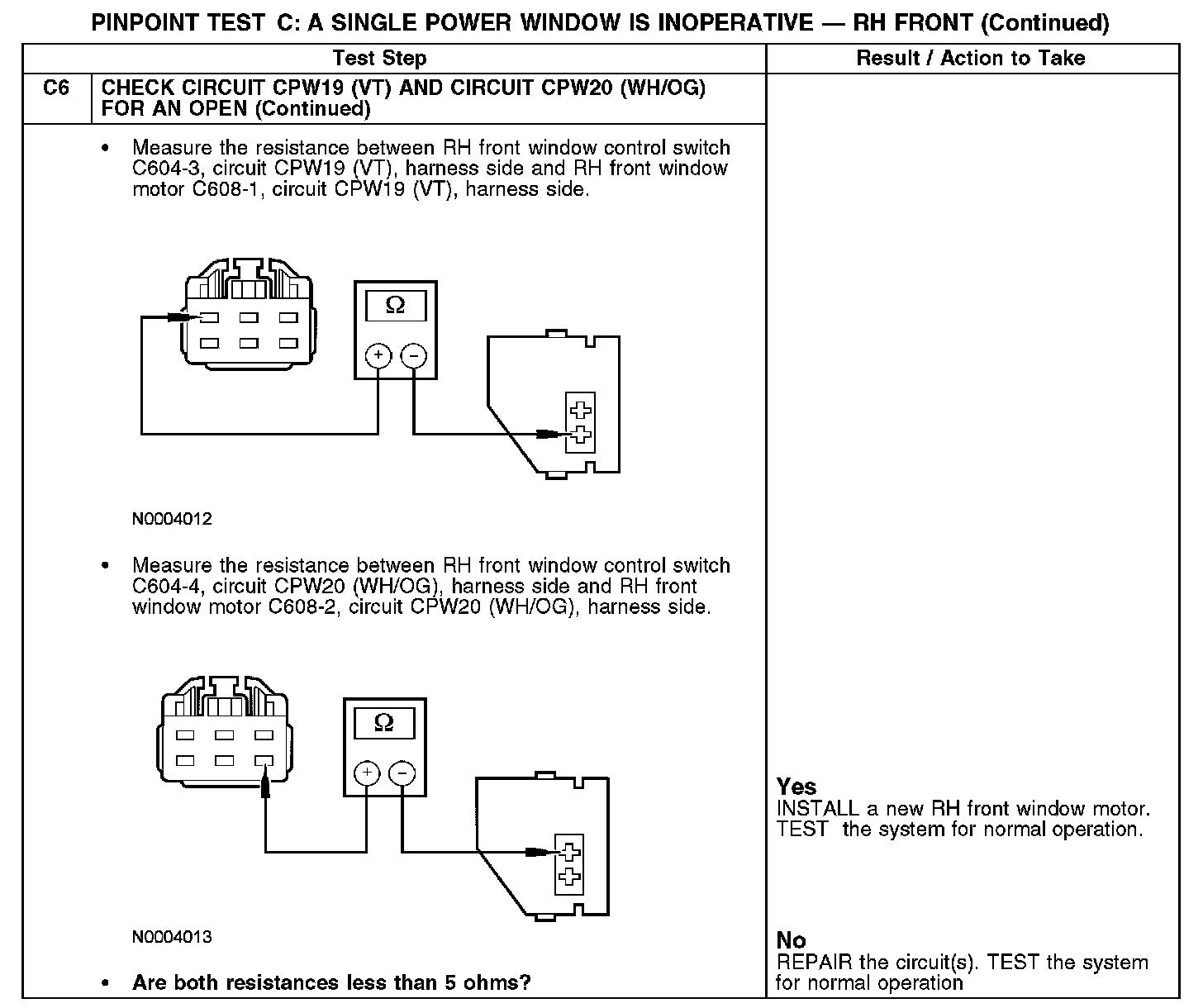

C6 Continued:
