Transaxle Connector Layouts

PCM Transaxle Connector - C175T:

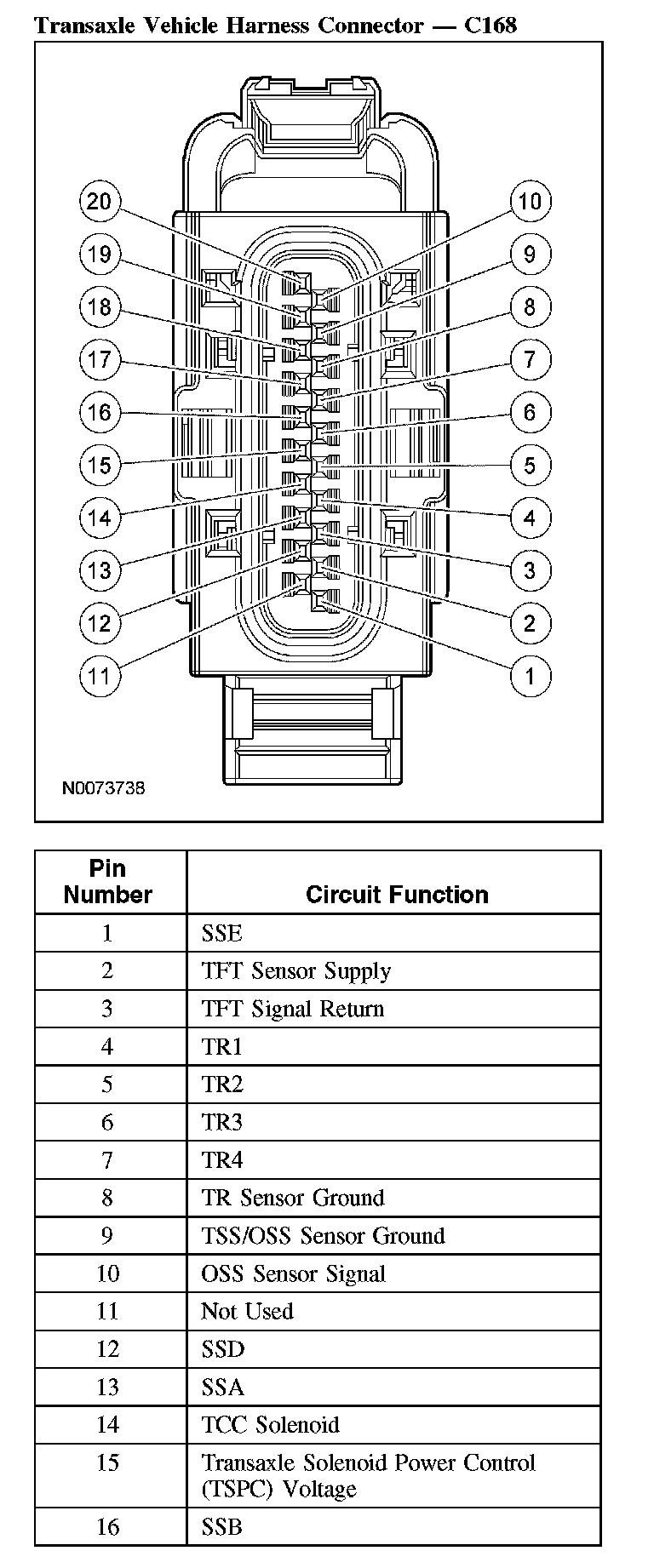

Transaxle Vehicle Harness Connector - C168 (Part 1):

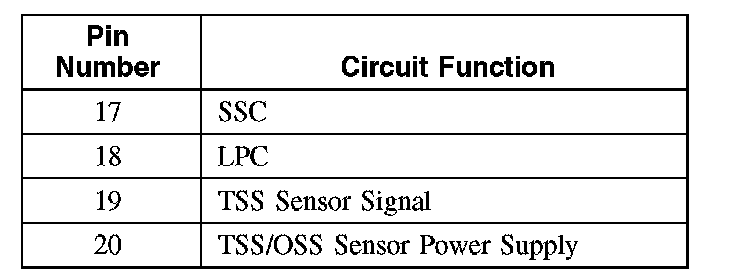

Transaxle Vehicle Harness Connector - C168 (Part 2):

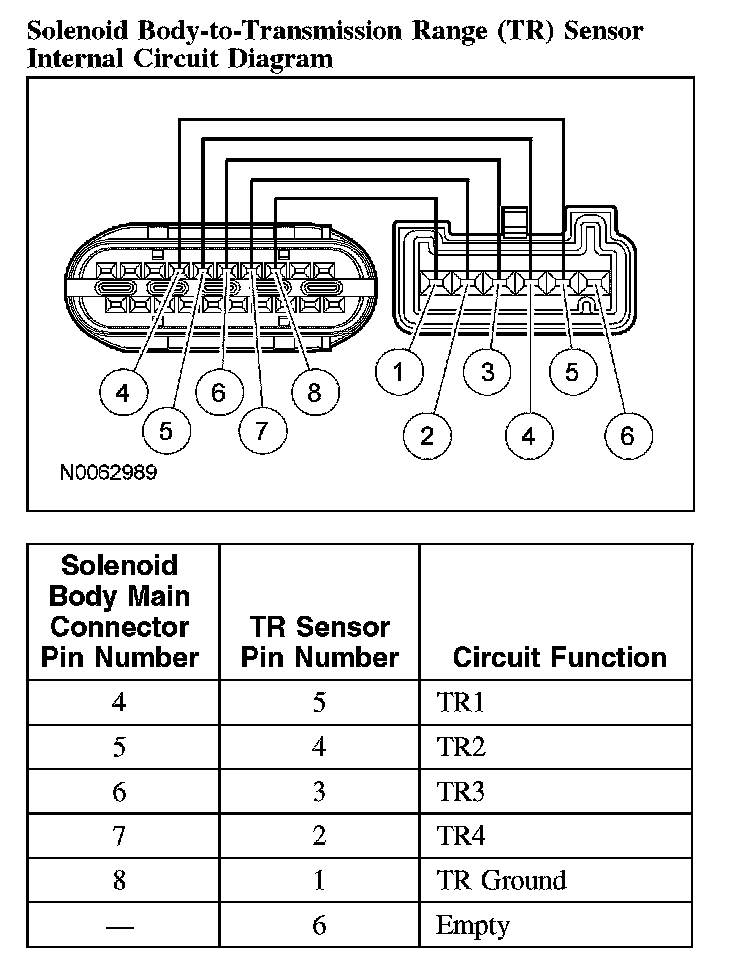

Solenoid Body-to-Transmission Range (TR) Sensor Internal Circuit Diagram:

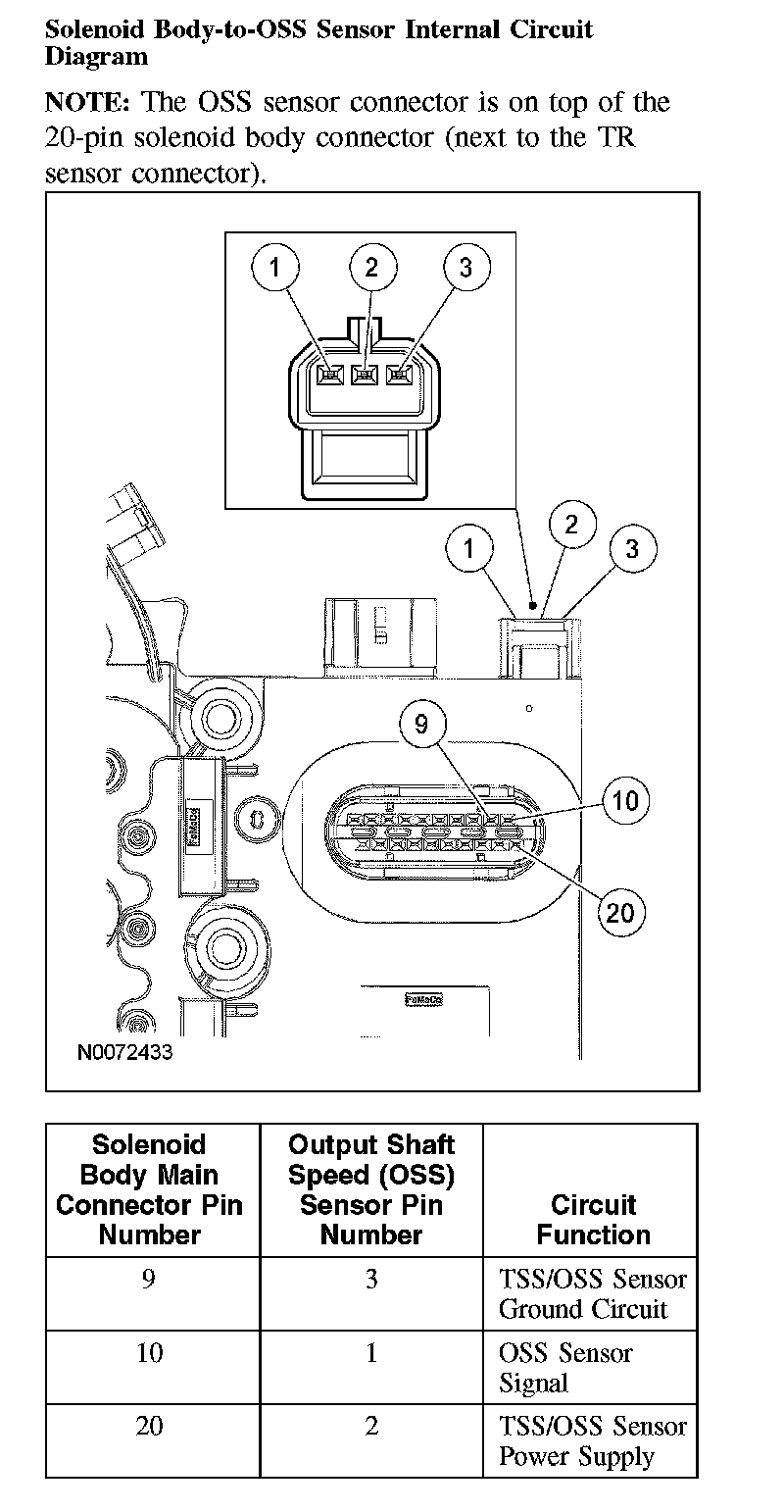

Solenoid Body-to-OSS Sensor Internal Circuit Diagram:

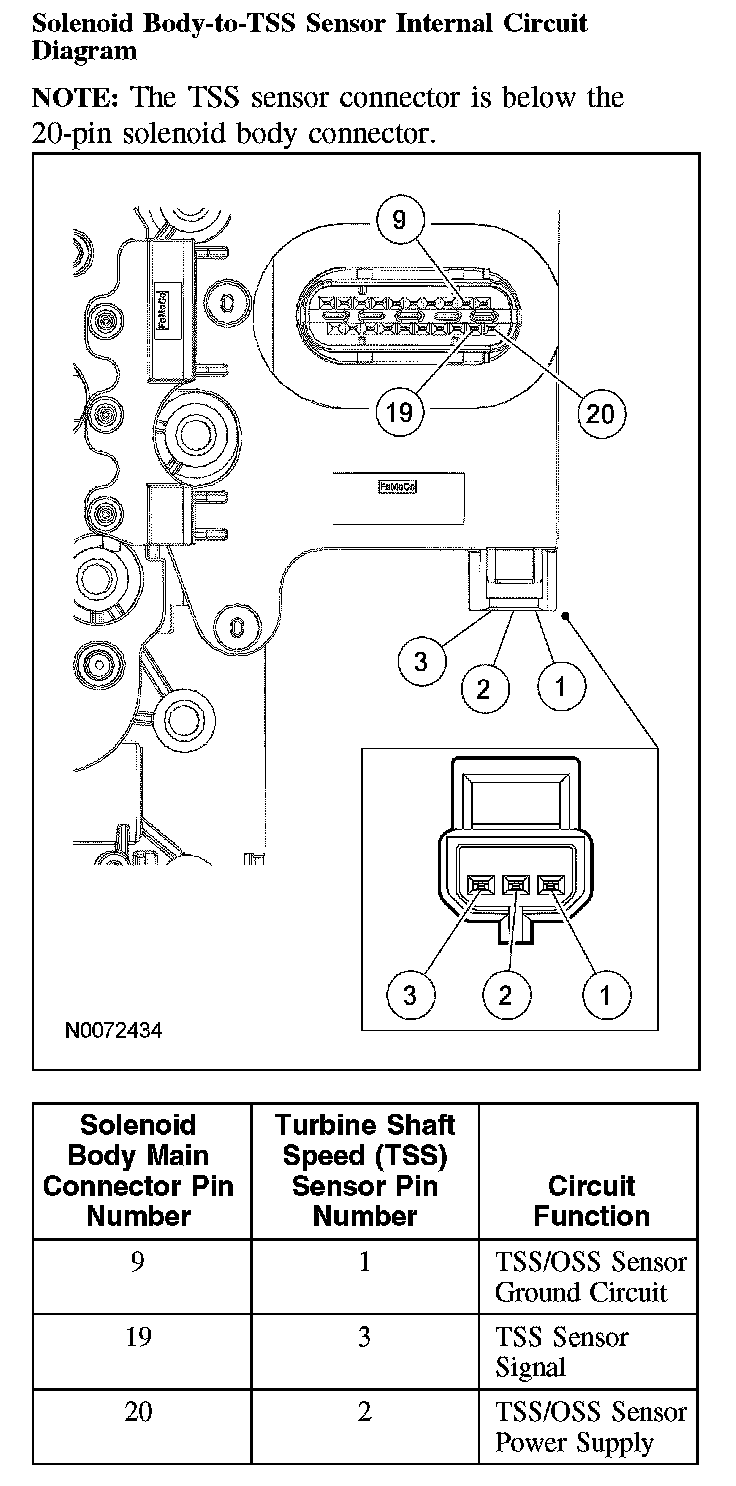

Solenoid Body-to-TSS Sensor Internal Circuit Diagram:

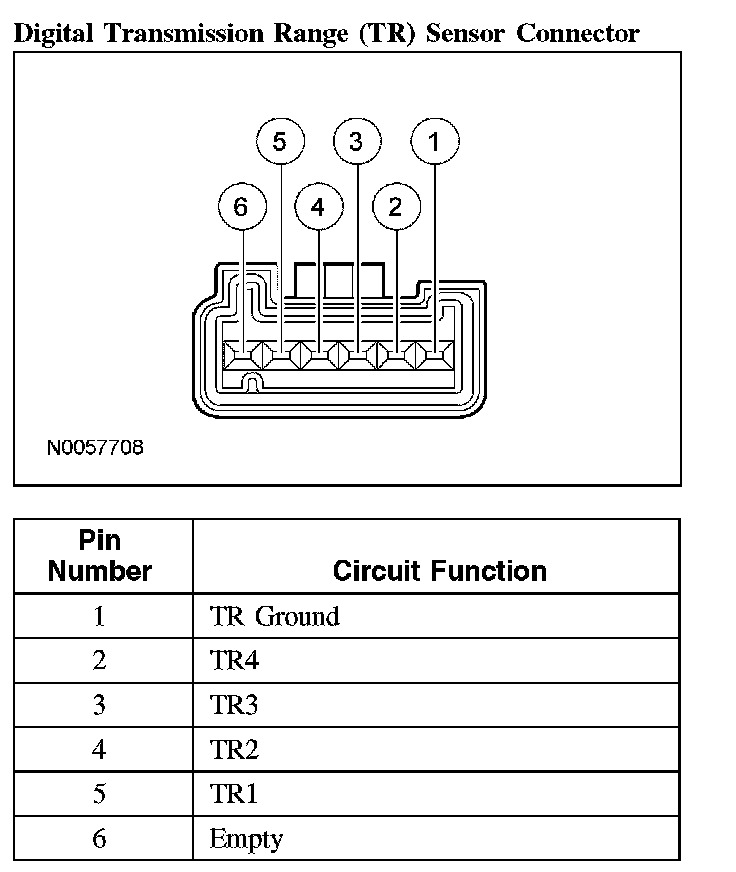

Digital Transmission Range (TR) Sensor Connector:

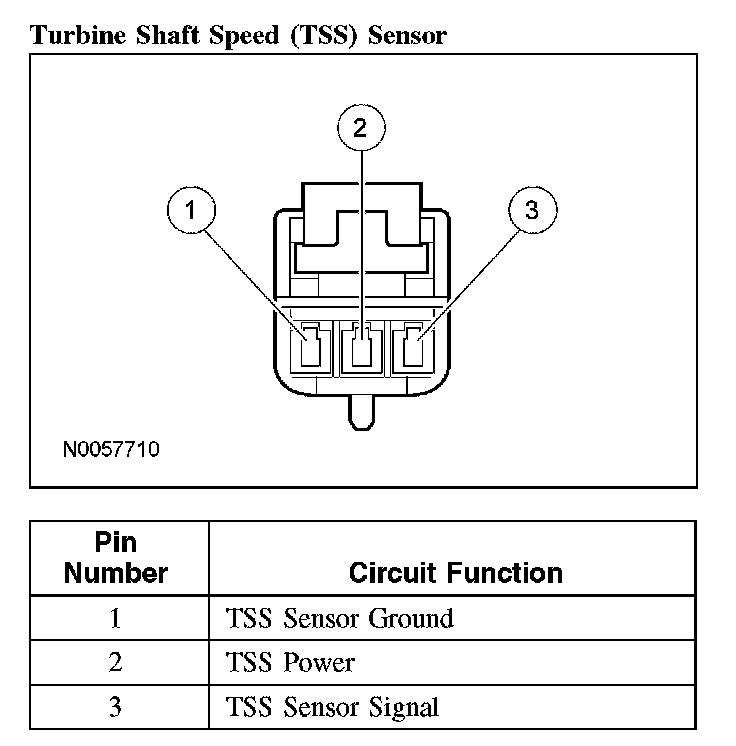

Turbine Shaft Speed (TSS) Sensor:

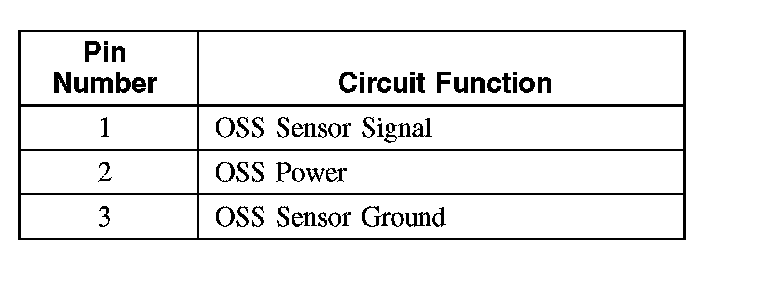

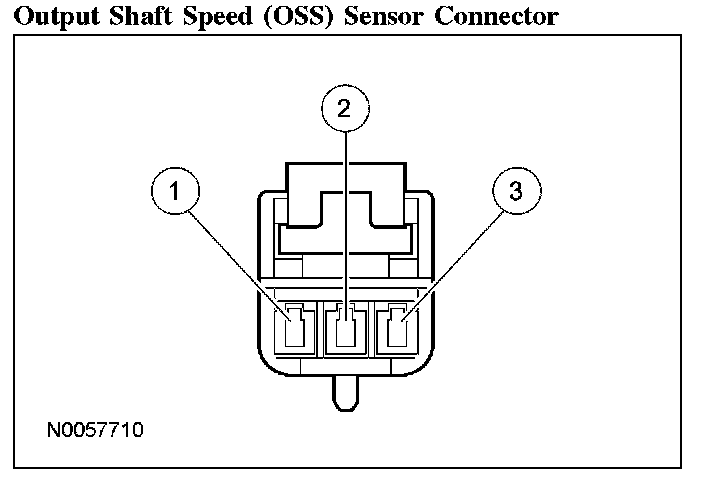

Output Shaft Speed (OSS) Sensor Connector (Part 1):

Output Shaft Speed (OSS) Sensor Connector (Part 2):
