Test C: Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) Sensors
Test C: Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) Sensors
PINPOINT TEST C: TURBINE SHAFT SPEED (TSS) AND OUTPUT SHAFT SPEED (OSS) SENSORS

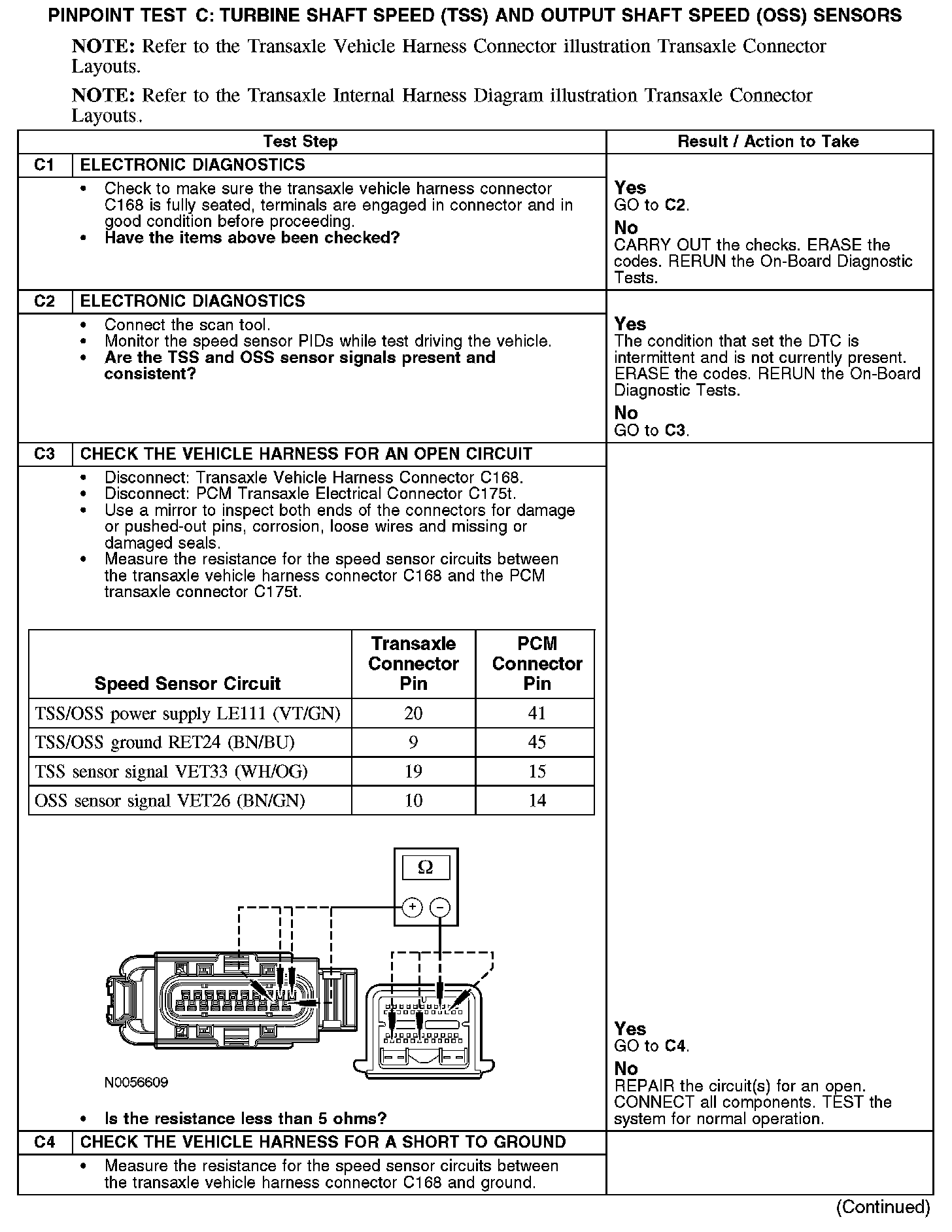

C1-C4:

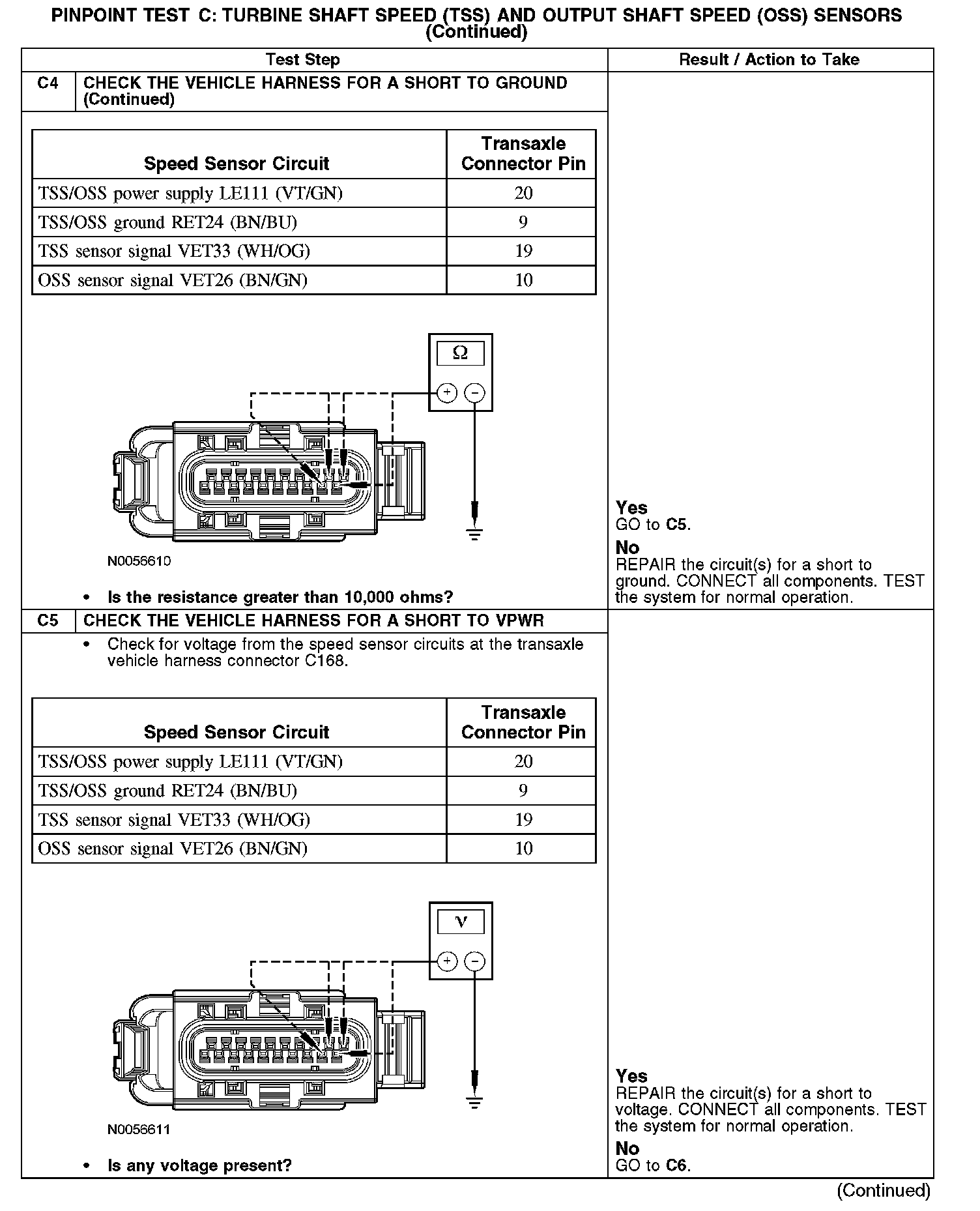

C4-C5:

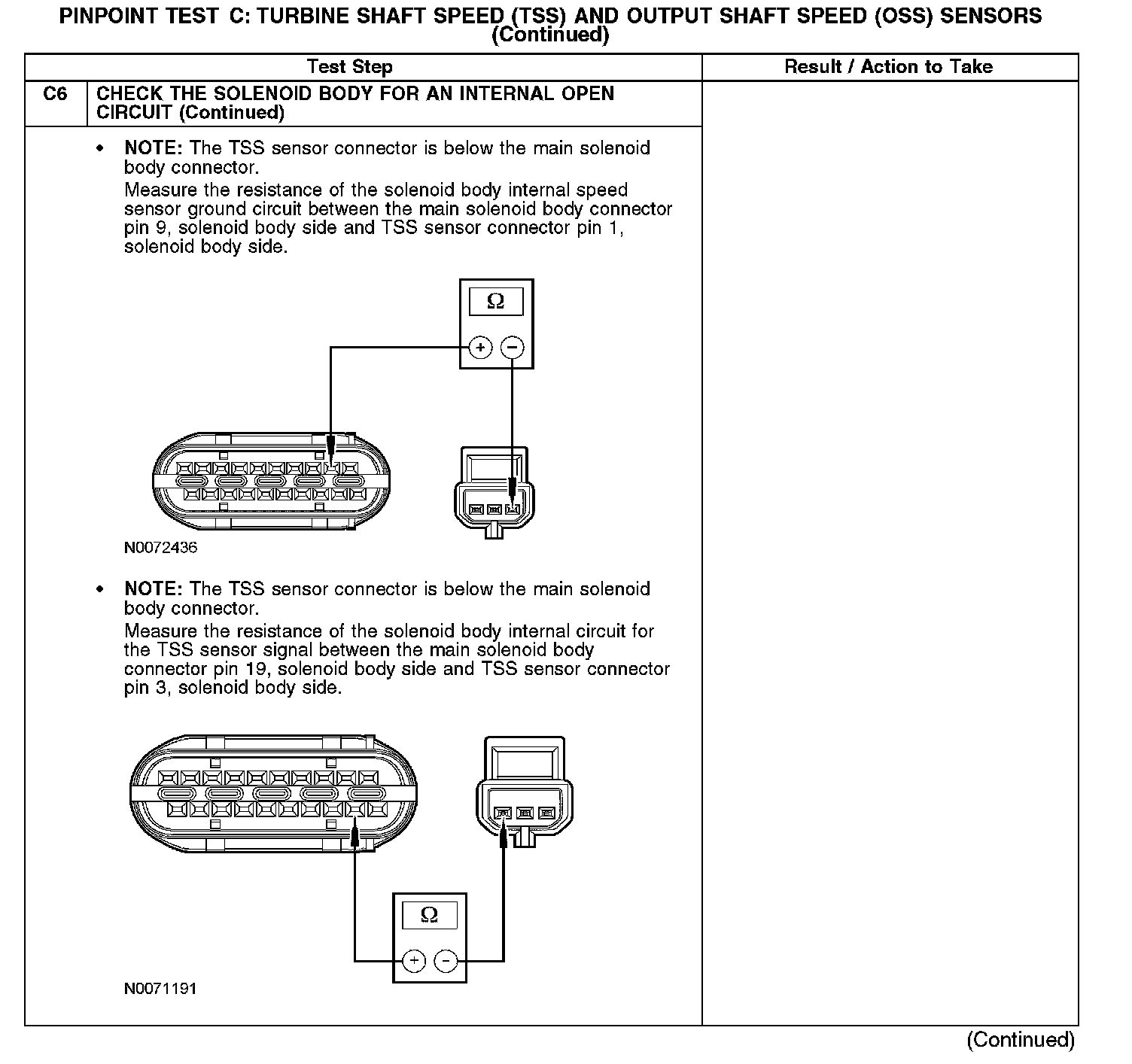

C6:

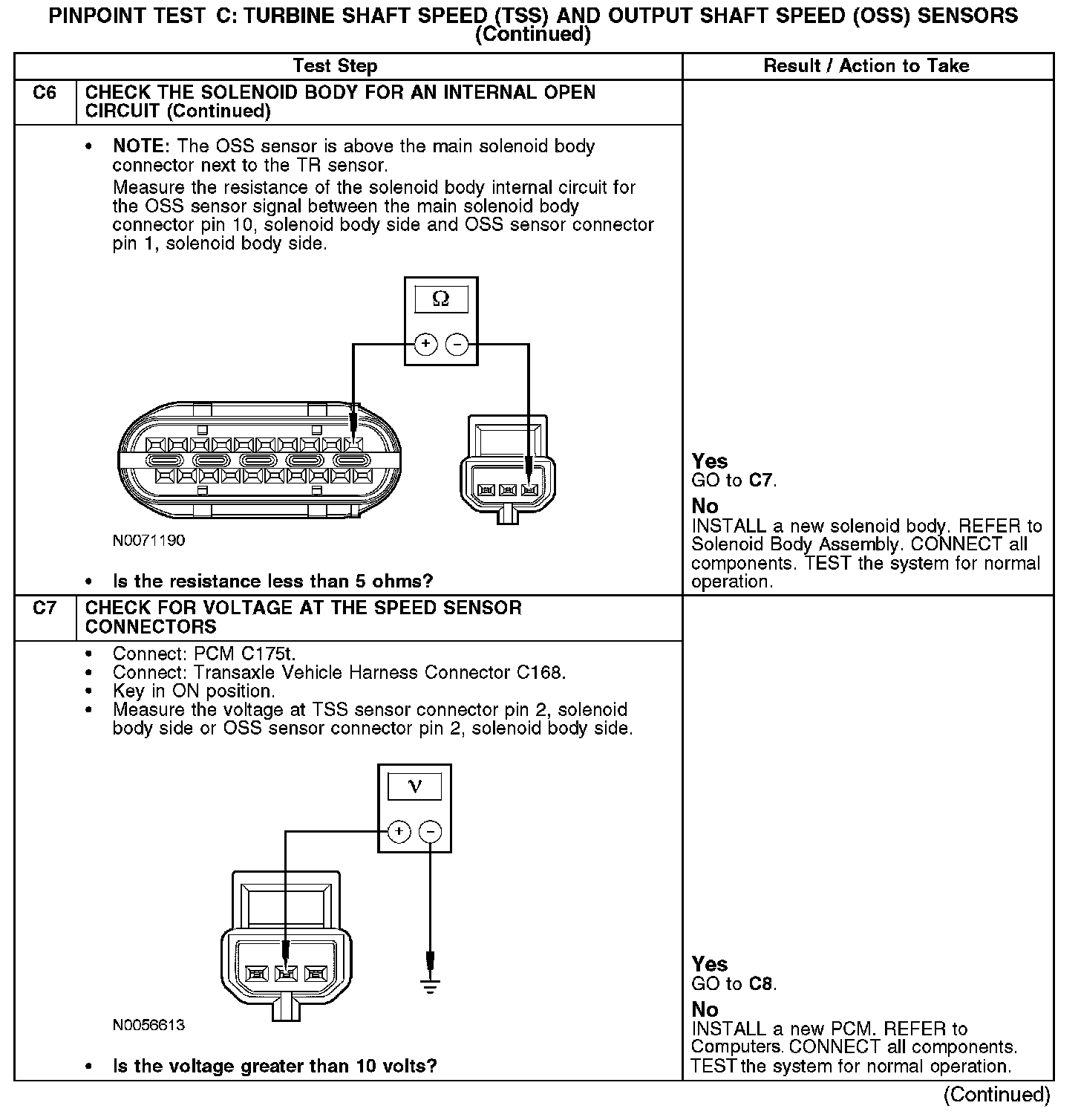

C6:
C6-C7:

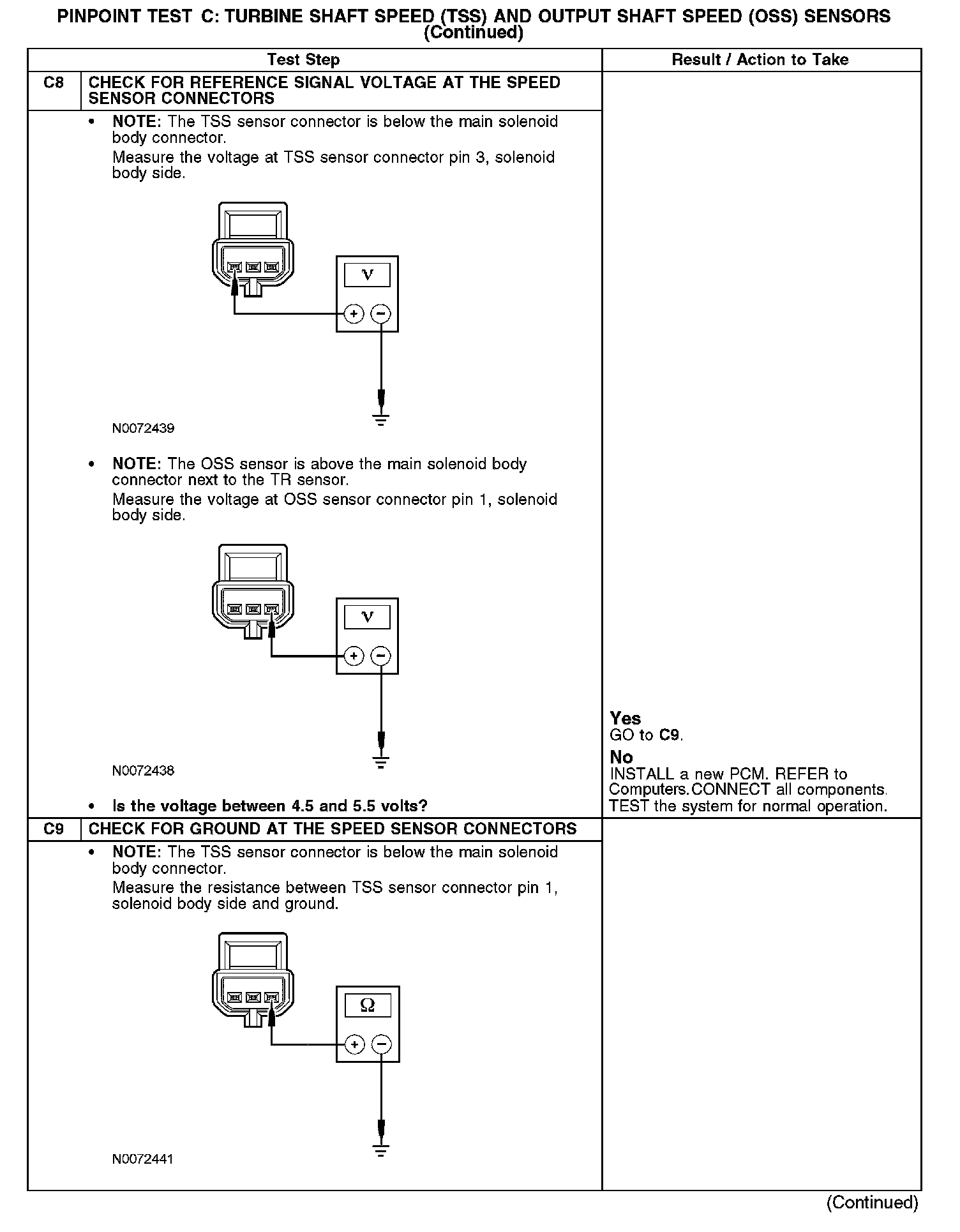

C8-C9:

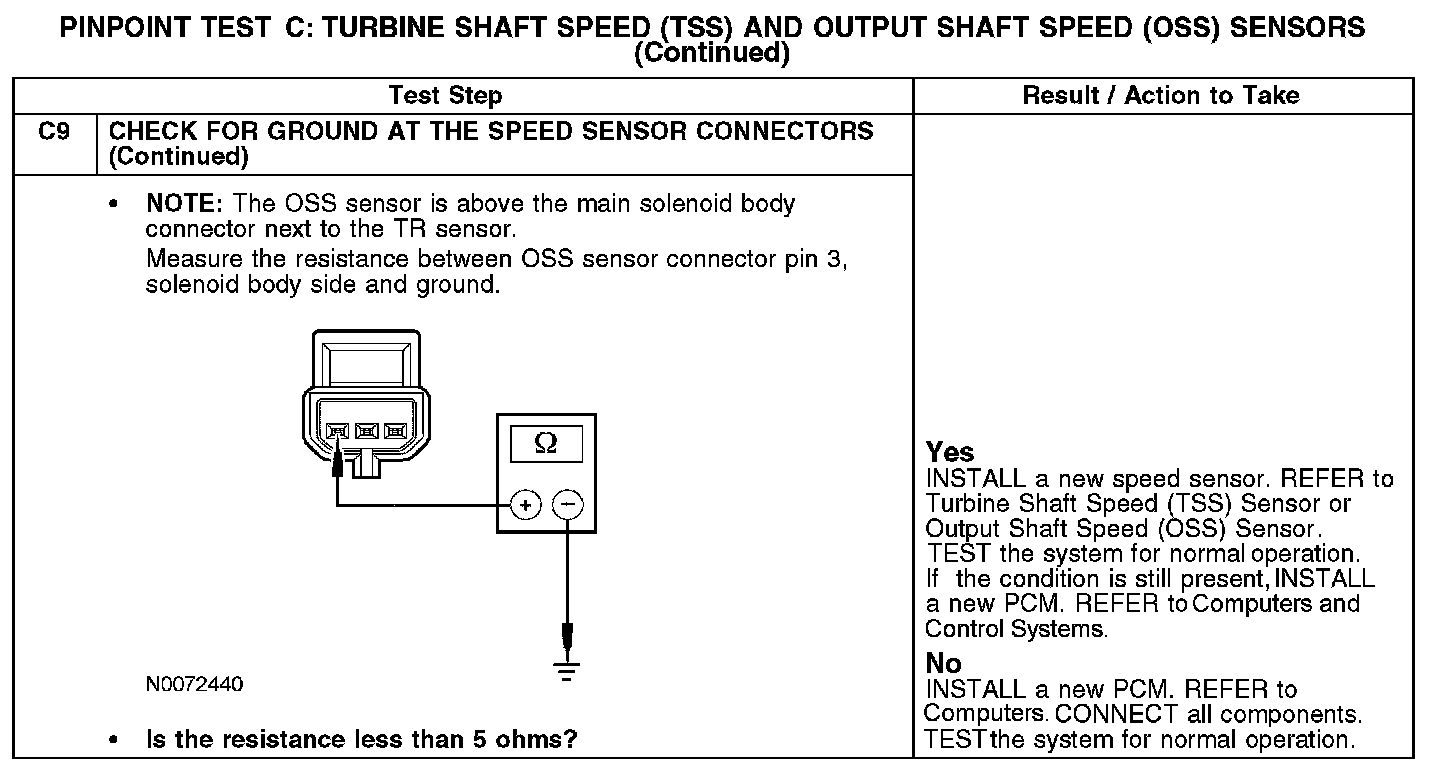

C9:
