Major Components

Major Components
This transaxle has the following major components:
^ Case with torque converter housing
^ Two drive clutches:
- Direct clutch
- Overdrive clutch
^ Four brake clutches:
- Forward clutch
- Low one-way clutch
- Low/reverse clutch
- Intermediate clutch
^ Three planetary gearsets:
- Front
- Center
- Rear
^ Final drive gearset:
- Transfer shaft drive gear
- Transfer shaft and gear assembly
- Differential ring gear
^ Differential
^ Pump and filter assembly
^ Main control:
- Valve body assembly
- Solenoid body assembly

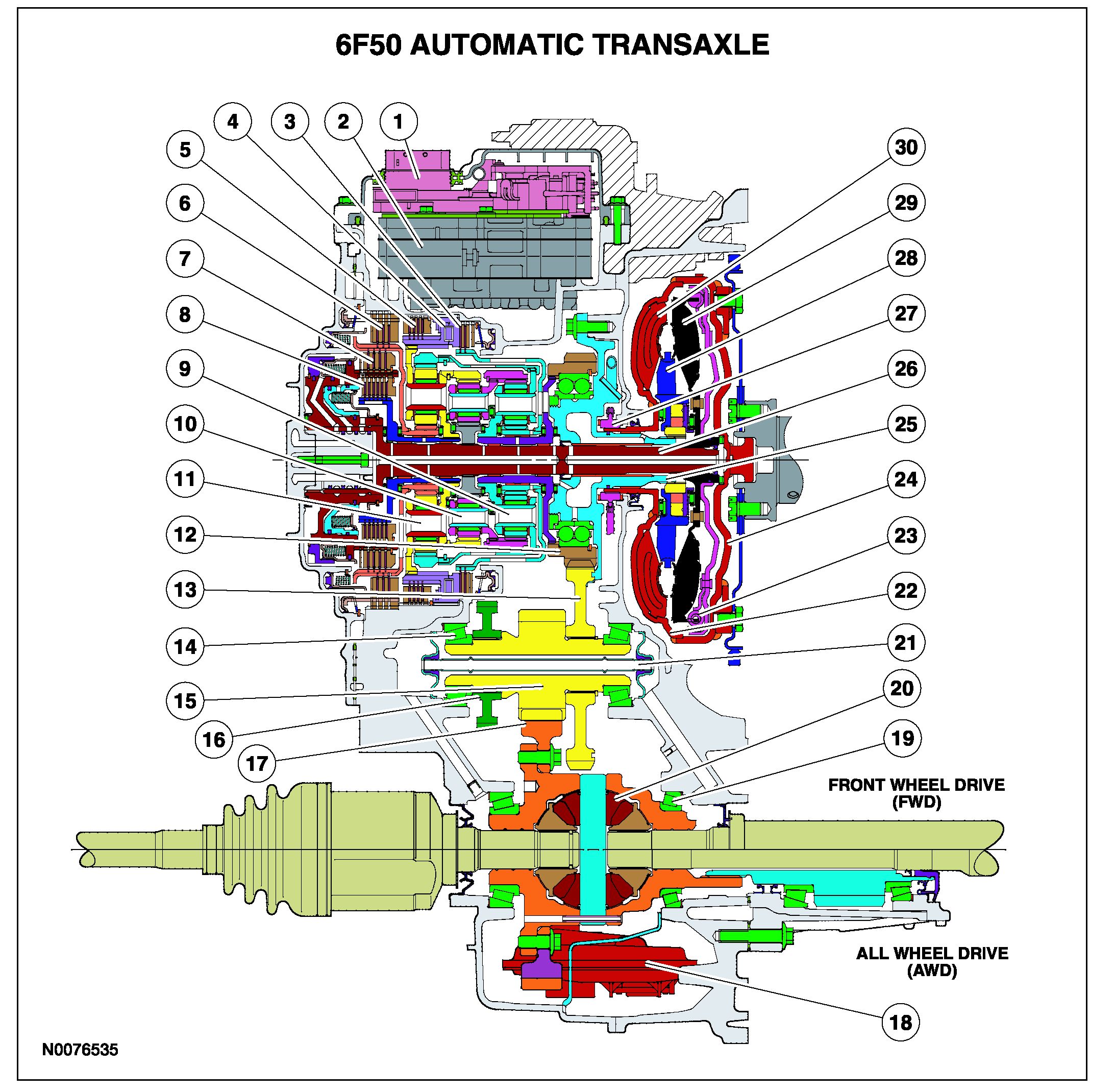

6F50 AUTOMATIC TRANSAXLE (Part 1):

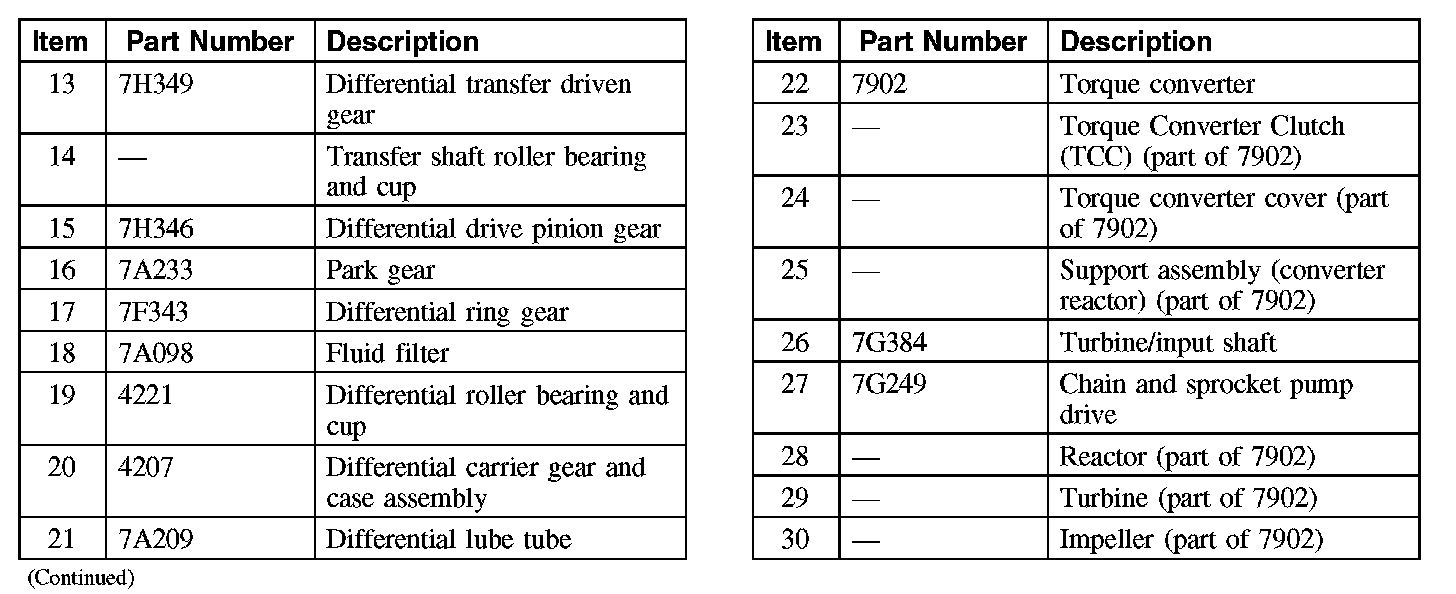

6F50 AUTOMATIC TRANSAXLE (Part 2):

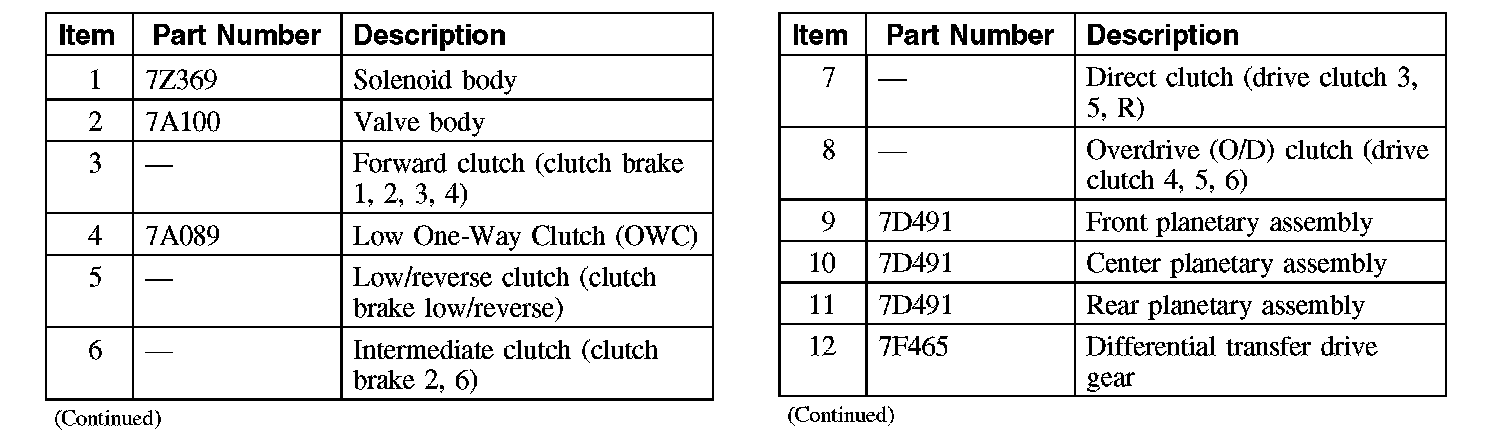

6F50 AUTOMATIC TRANSAXLE (Part 3):
