External Controls

External Controls

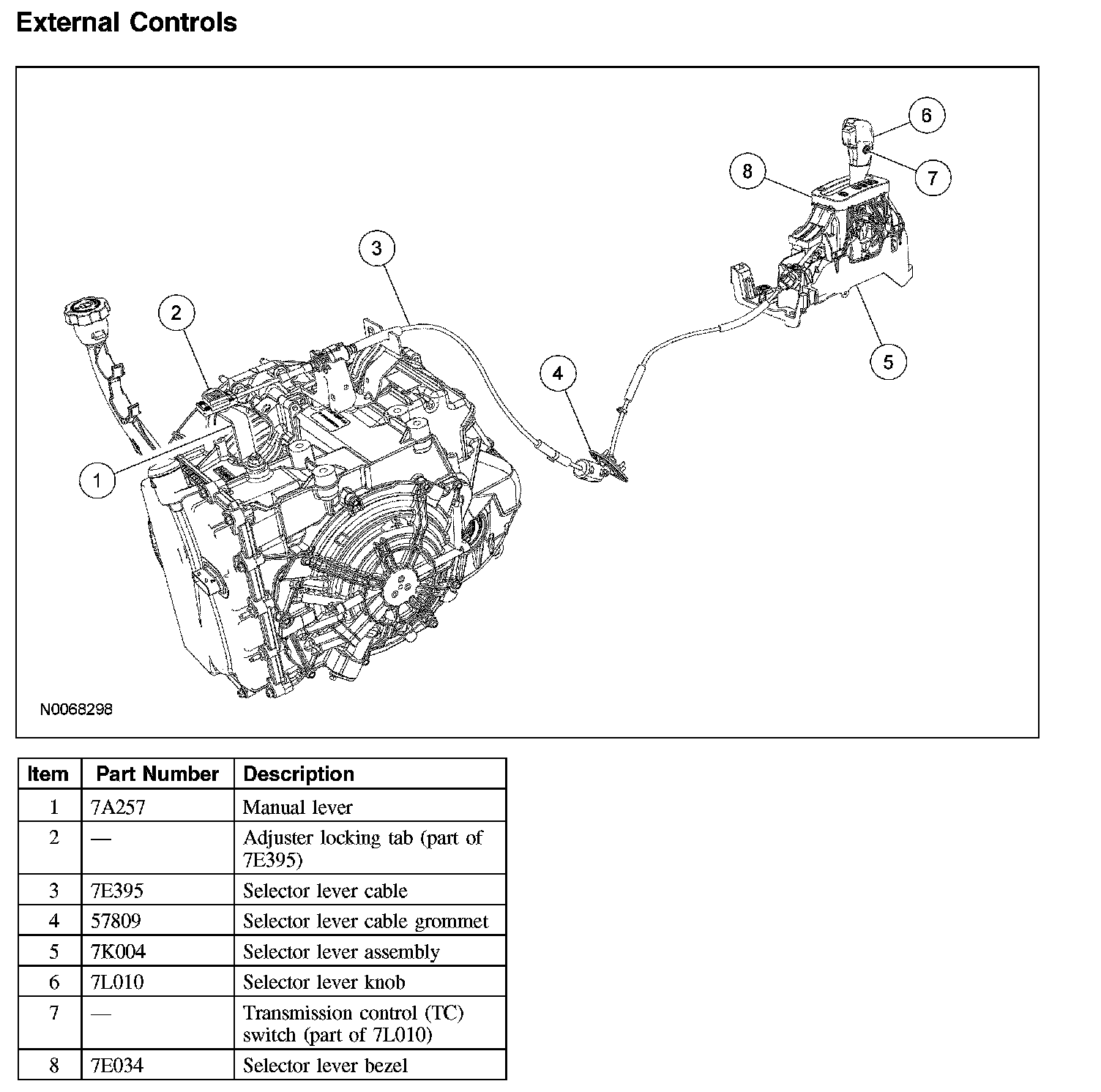

External Controls:

The transaxle shift control linkage consists of:
^ a selector lever cable that connects the transaxle manual lever to the selector lever assembly.
^ a brake shift interlock actuator that is integral to the selector lever assembly.
^ a transmission control (TC) switch that turns off the operation of 6th gear.

The selector lever assembly:
^ locks the transaxle selector lever in the PARK position when the ignition switch is in the LOCK position.
^ requires the transaxle selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
