Automatic Transmission/Transaxle: Application and ID

Identification Tags

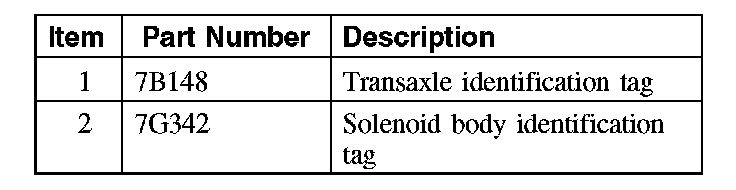

Identification Tag Location

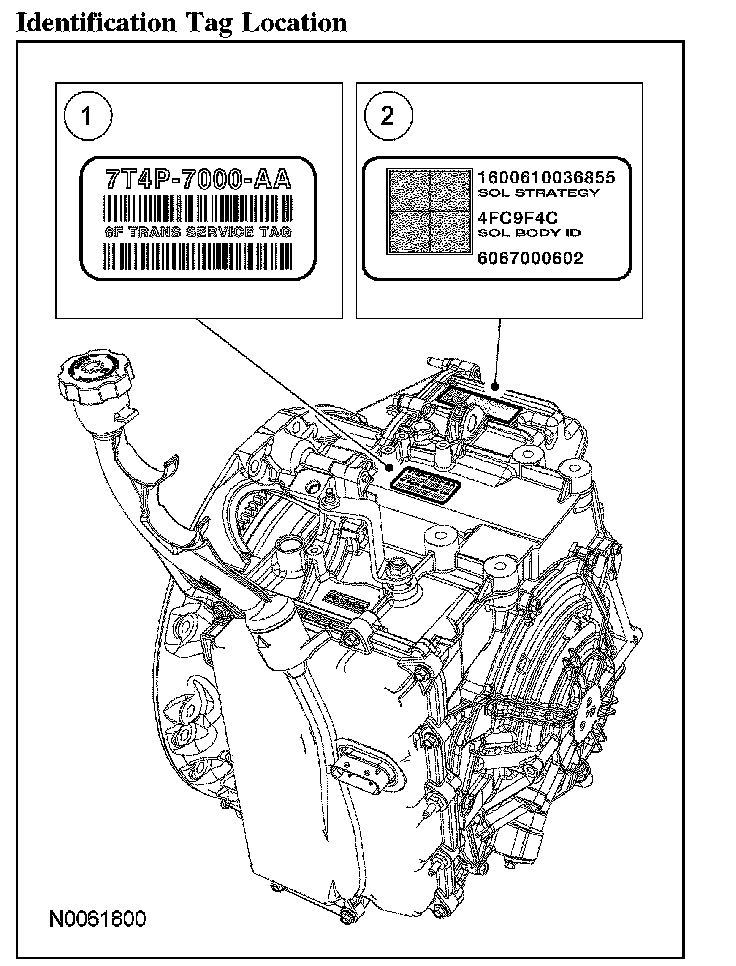

Identification Tag Location (Part 1):

Identification Tag Location (Part 2):

Transaxle Identification Tag

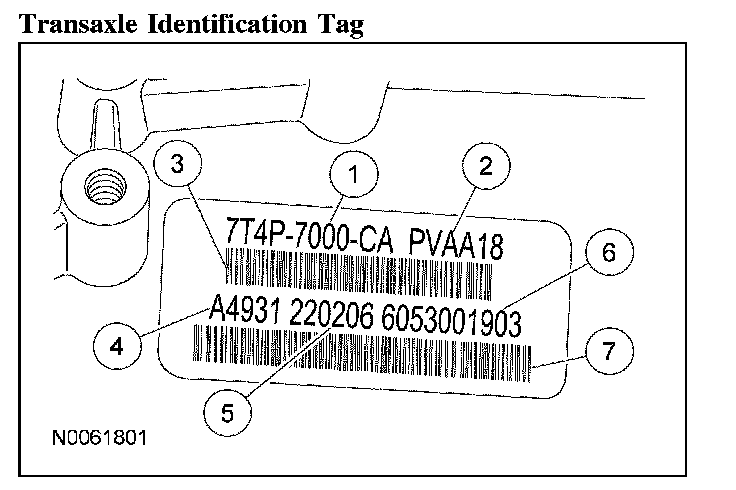

Transaxle Identification Tag (Part 1):

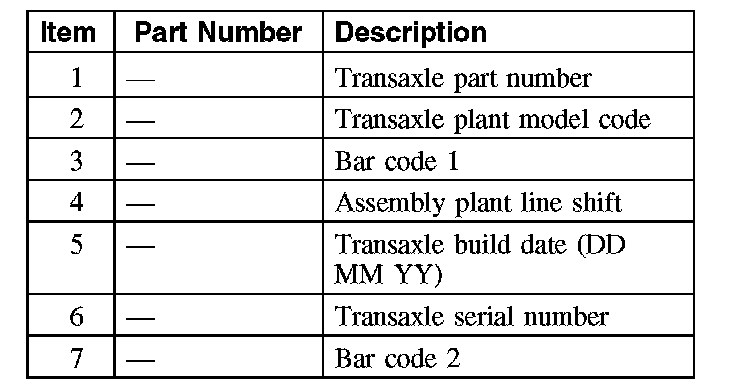

Transaxle Identification Tag (Part 2):

When servicing the transaxle, use the identification tag located on top of the transaxle case.

Original Solenoid Body Tag

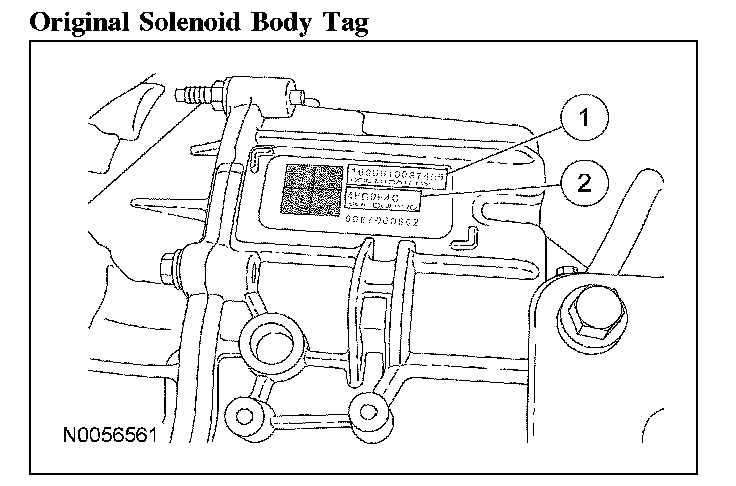

Original Solenoid Body Tag (Part 1):

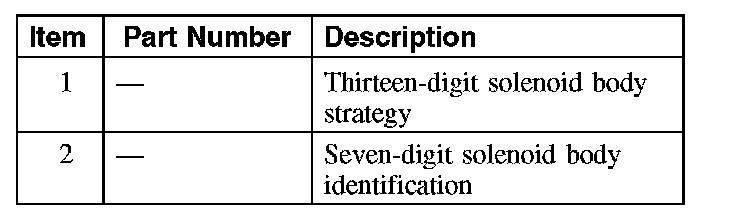

Original Solenoid Body Tag (Part 2):

Replacement Solenoid Body Tag

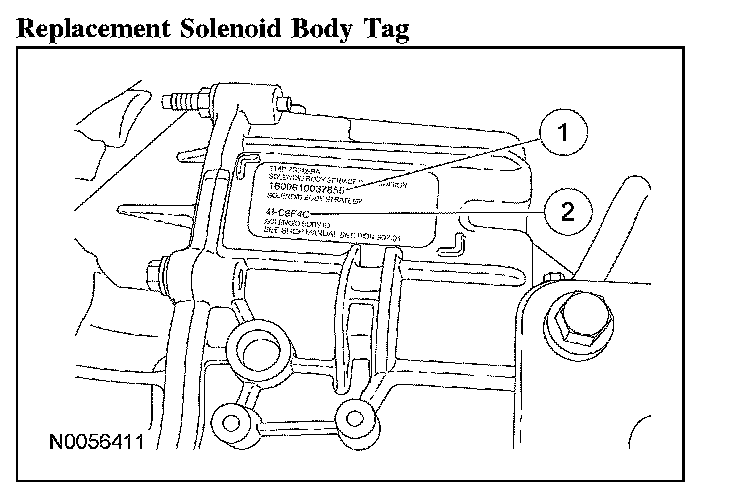

Replacement Solenoid Body Tag (Part 1):

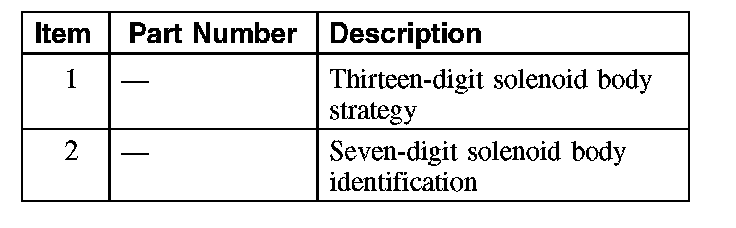

Replacement Solenoid Body Tag (Part 2):

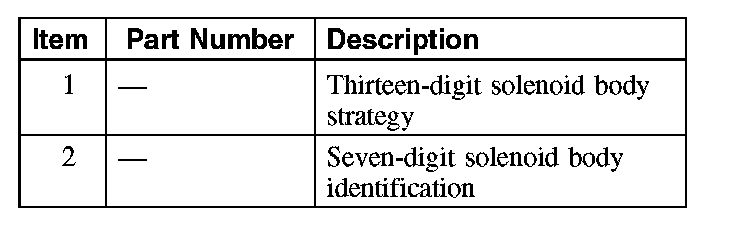

Solenoid Body Identification Tag

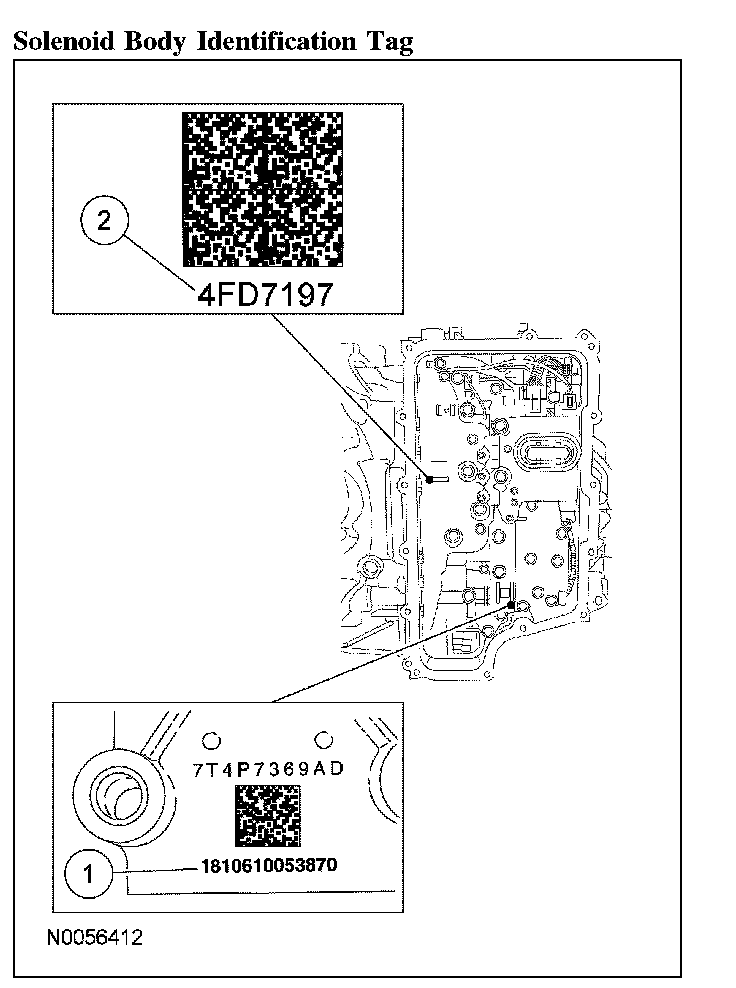

Solenoid Body Identification Tag (Part 1):

Solenoid Body Identification Tag (Part 2):

When servicing the solenoid body, use the identification tag located on top of the transaxle case.
