Test F: Steering System Drift/Pull/Wander

Pinpoint Test F: Steering System Drift/Pull/Wander

This pinpoint test is intended to diagnose the following:
^ Steering gear
^ Intermediate shaft
^ Intermediate shaft U-joints
^ Steering gear mounts
^ Suspension components

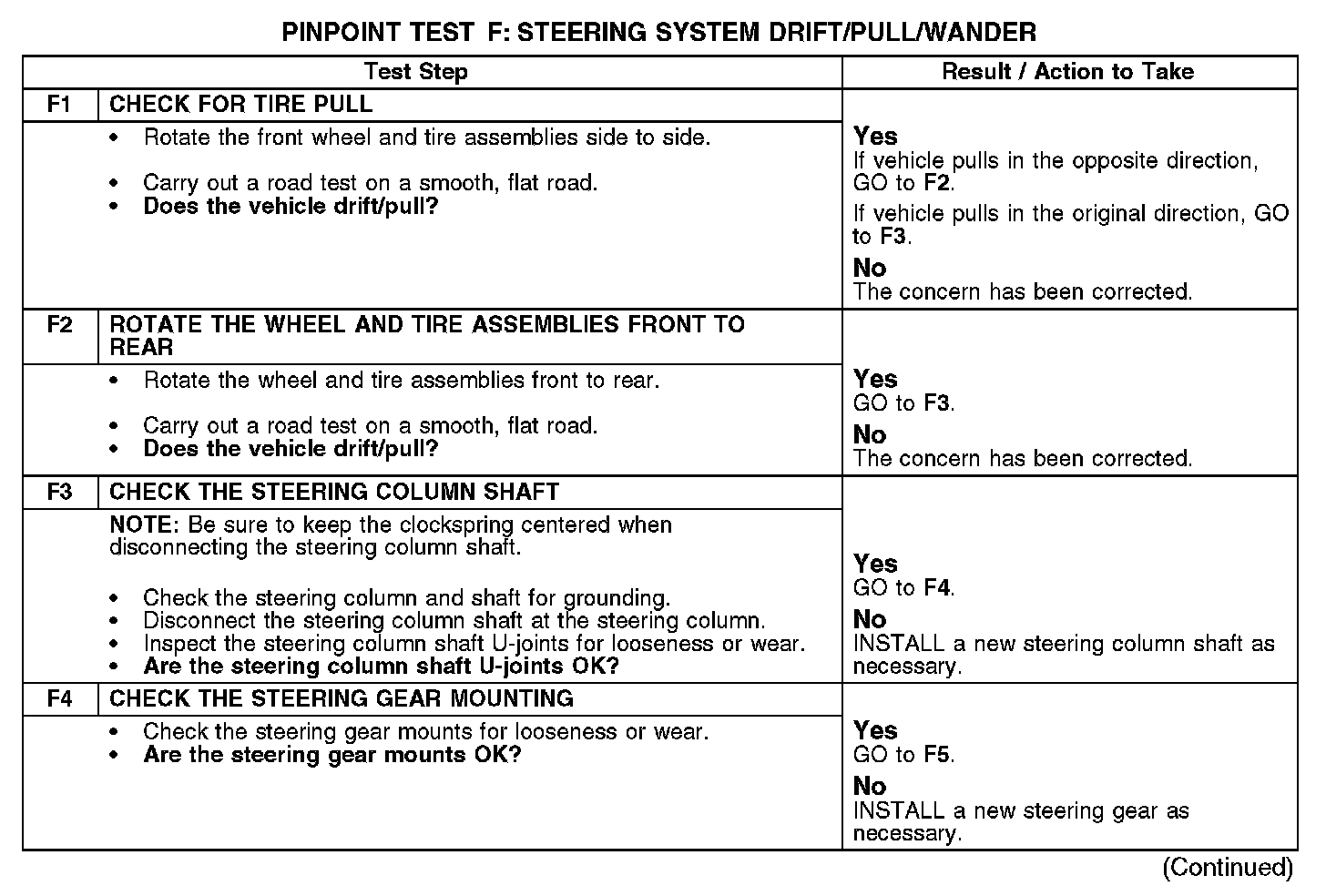

F1-F4:

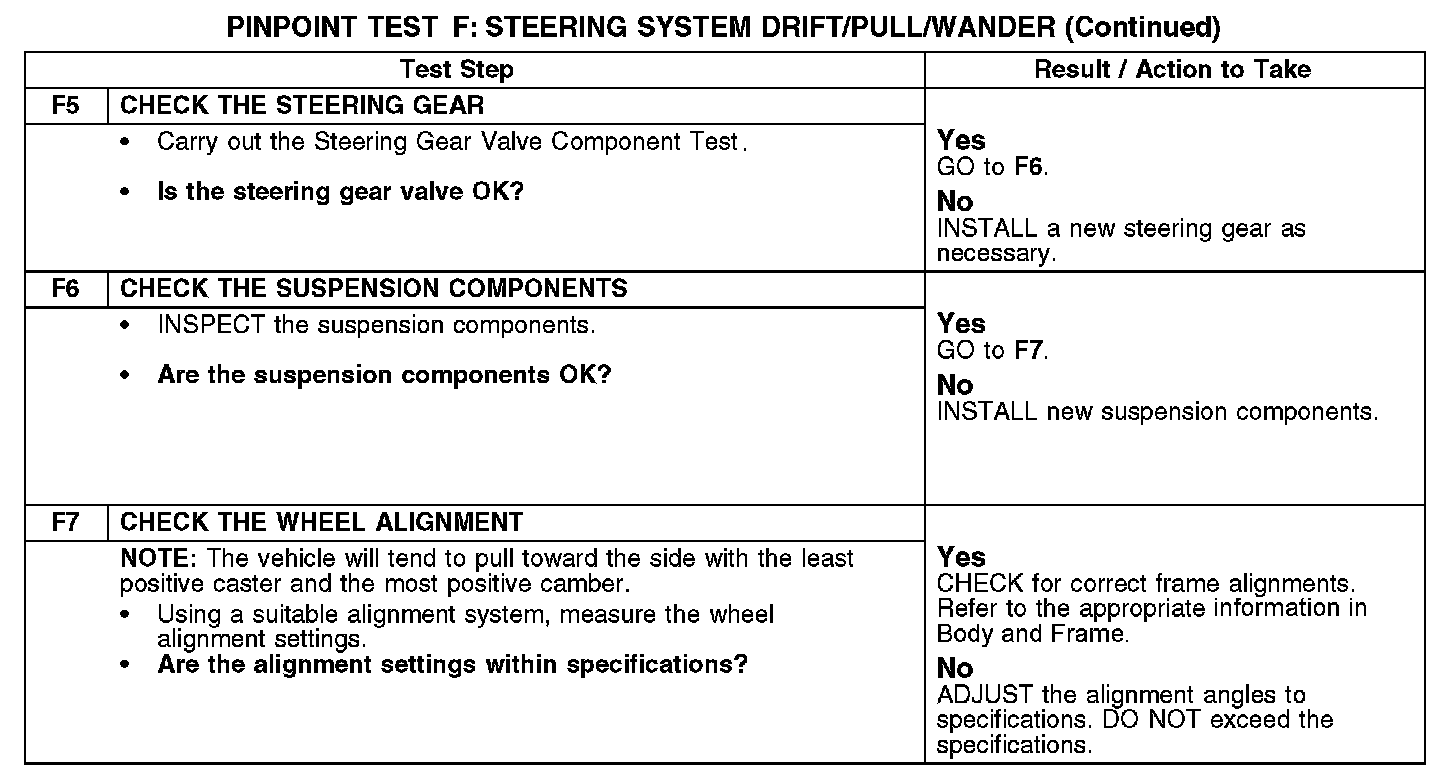

F5-F7:
