Test C: Unusual Starter Noise

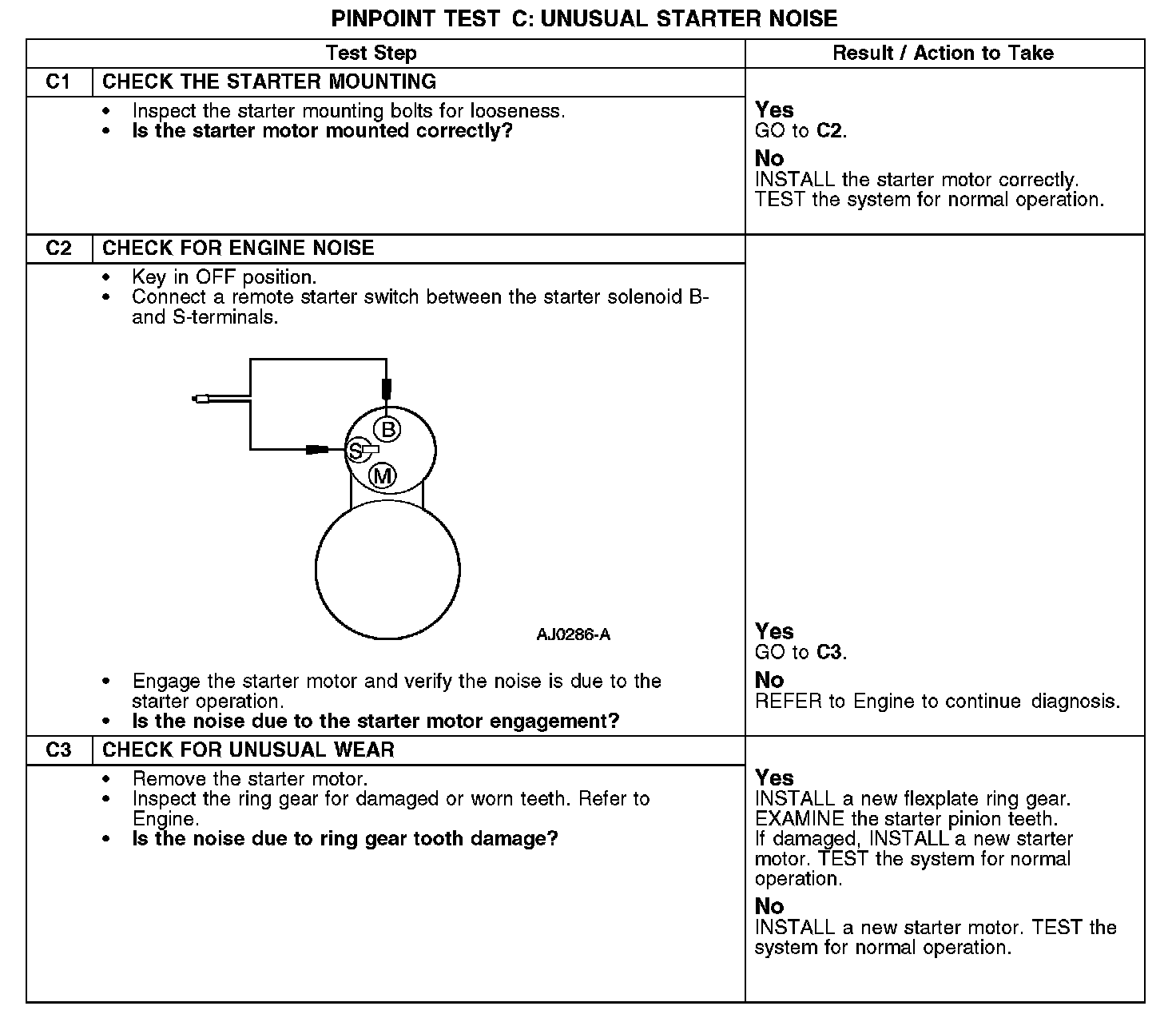

PINPOINT TEST C: UNUSUAL STARTER NOISE

This pinpoint test is intended to diagnose the following:
- Starter motor
- Ring gear


C1-C3:
