Test D: The Generator Is Noisy

PINPOINT TEST D: THE GENERATOR IS NOISY

Normal Operation
The generator is belt-driven by the engine accessory drive system.

This pinpoint test is intended to diagnose the following:
- Accessory drive belt
- Loose bolts/brackets
- Generator/pulley

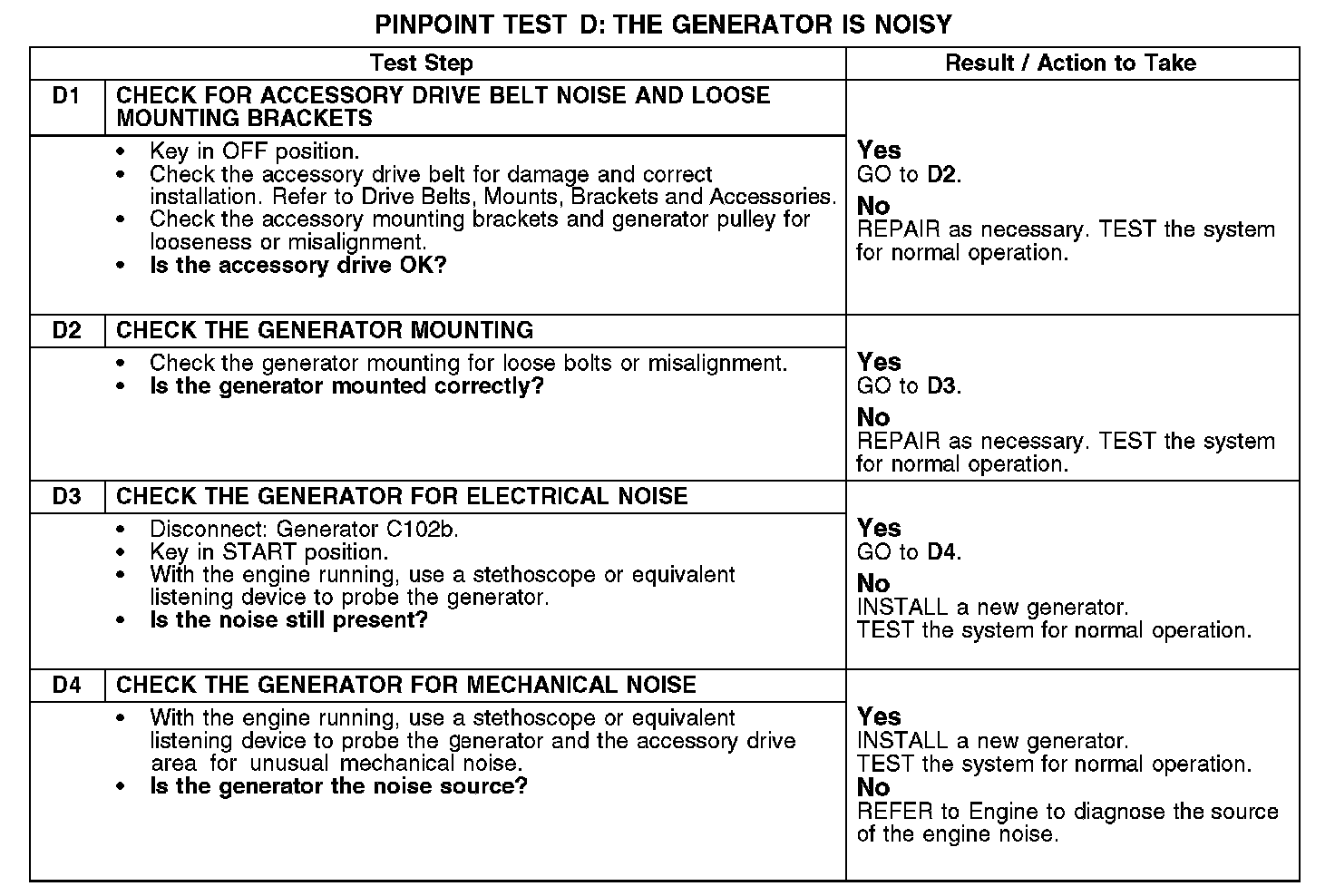

D1-D4:
