Mercury
>>
2008
>>
Sable FWD V6-3.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
Alternator: Diagrams

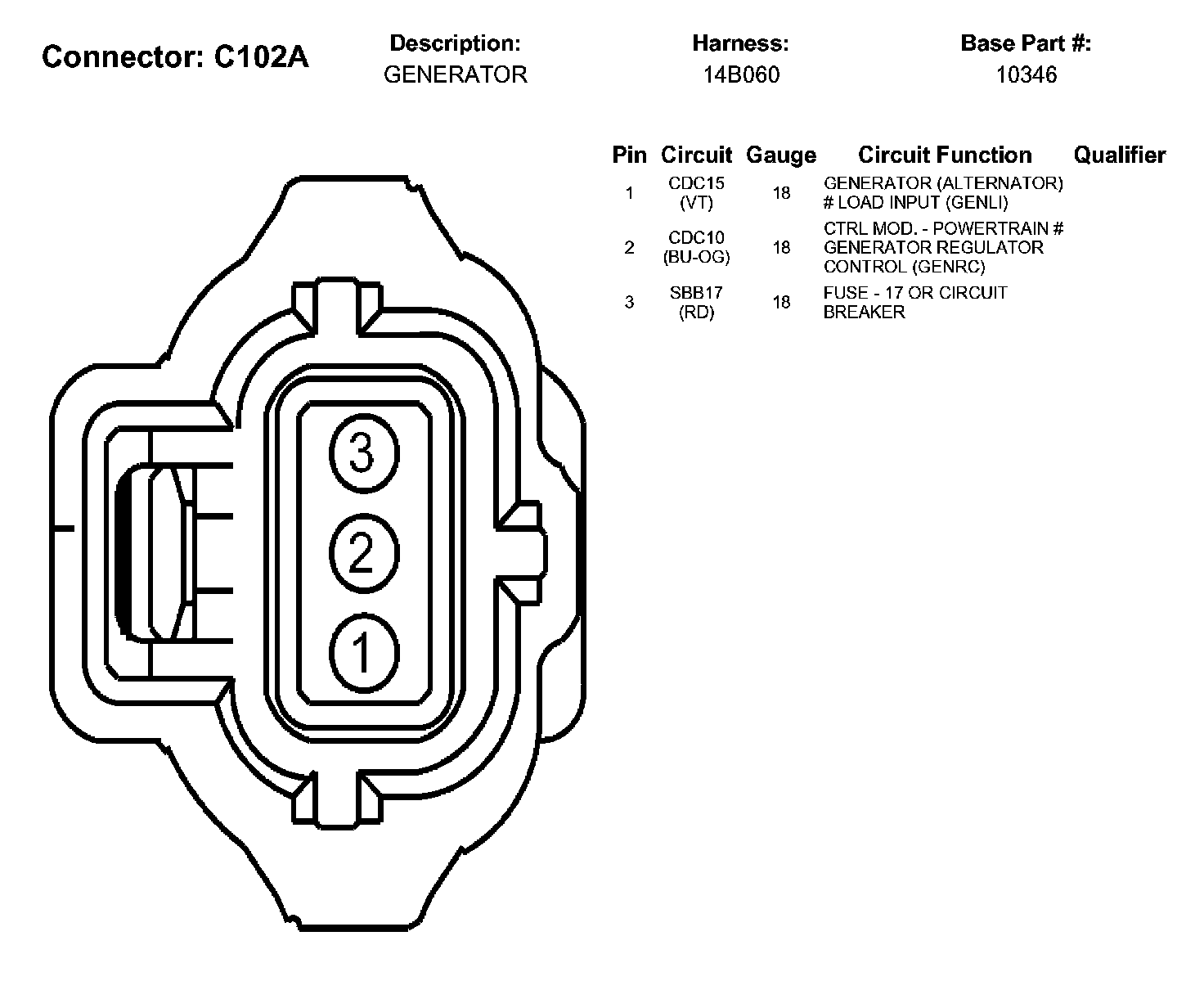

C102A:

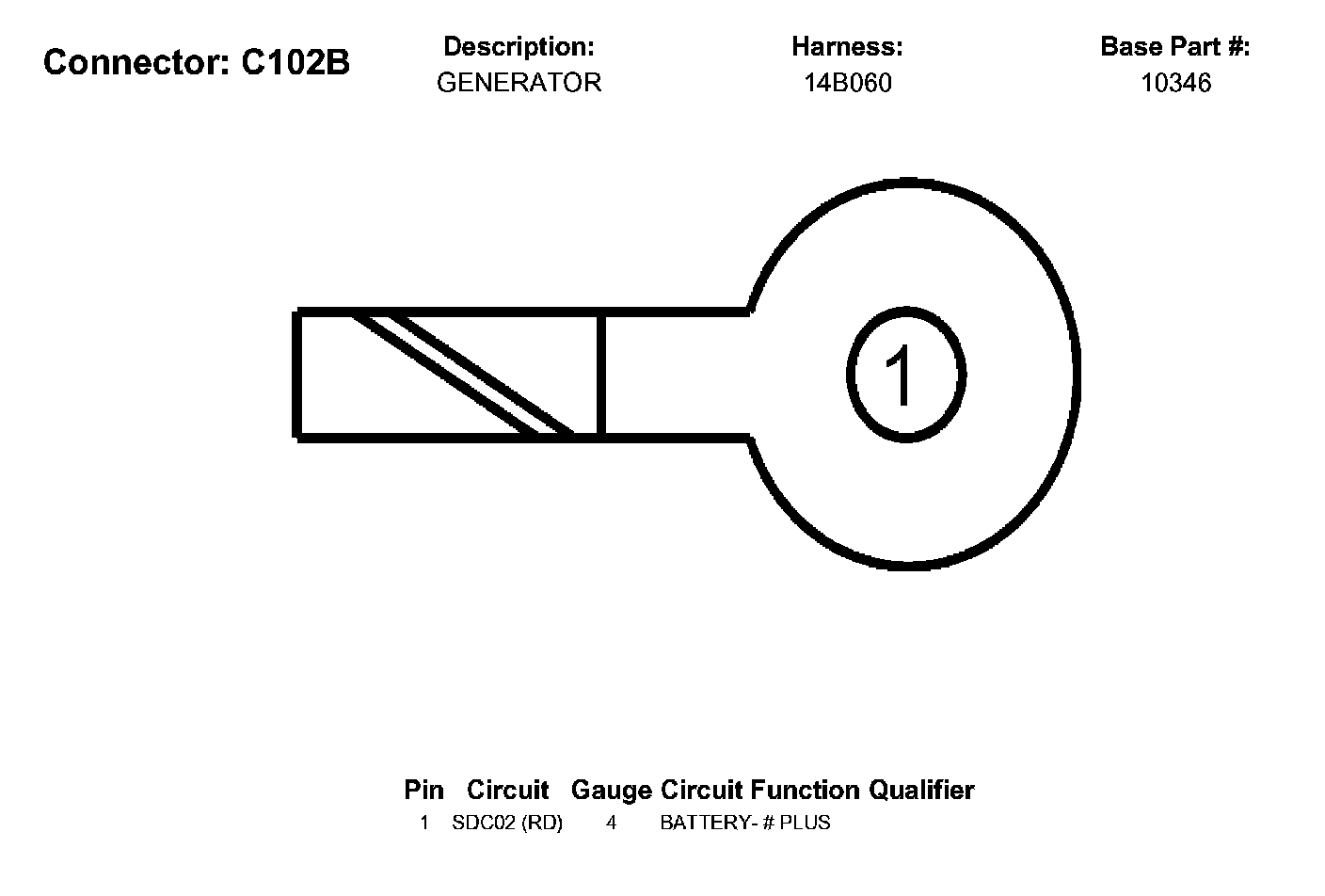

C102B:
