Home >> Mercury >> 2008 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Washer Fluid Level Switch >> Locations

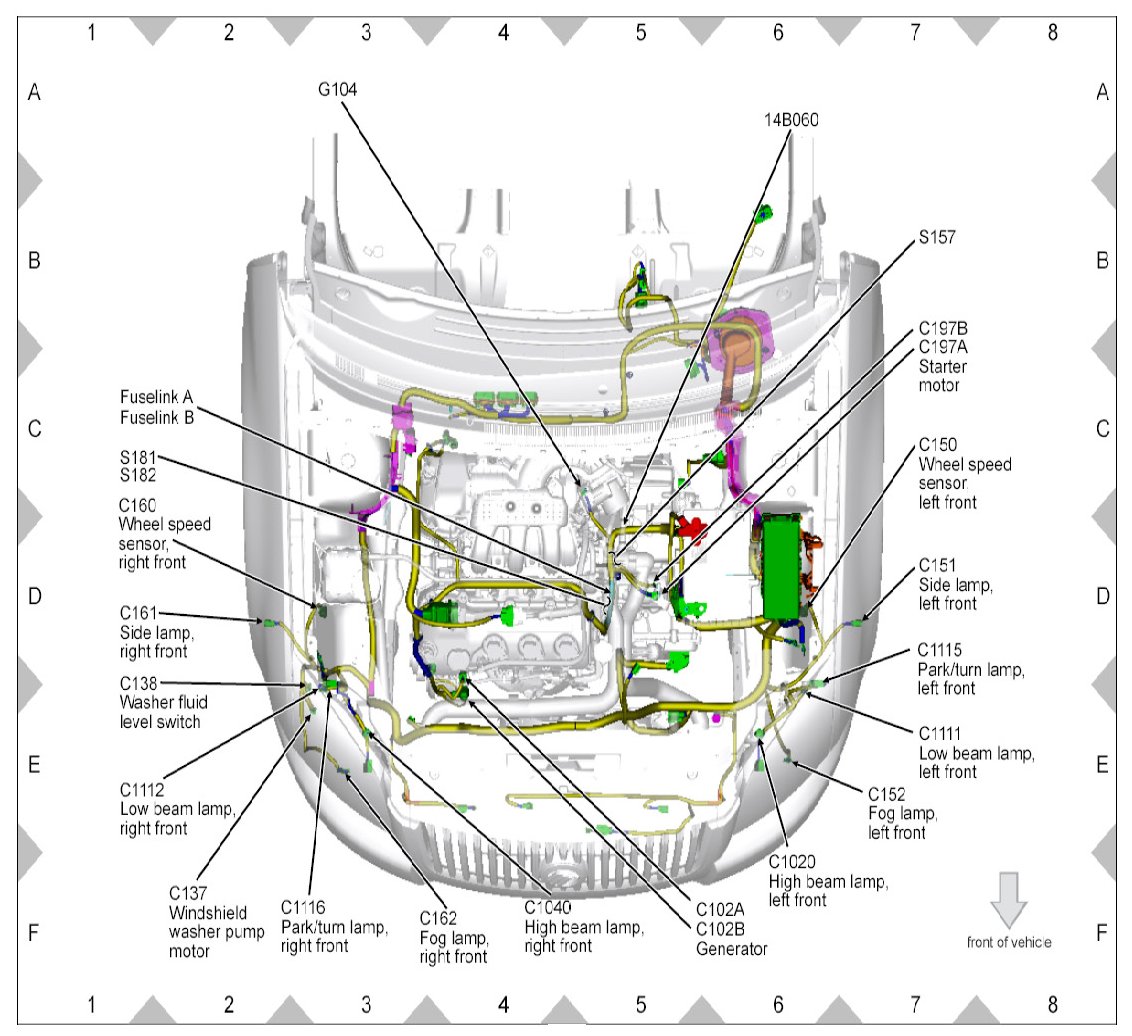

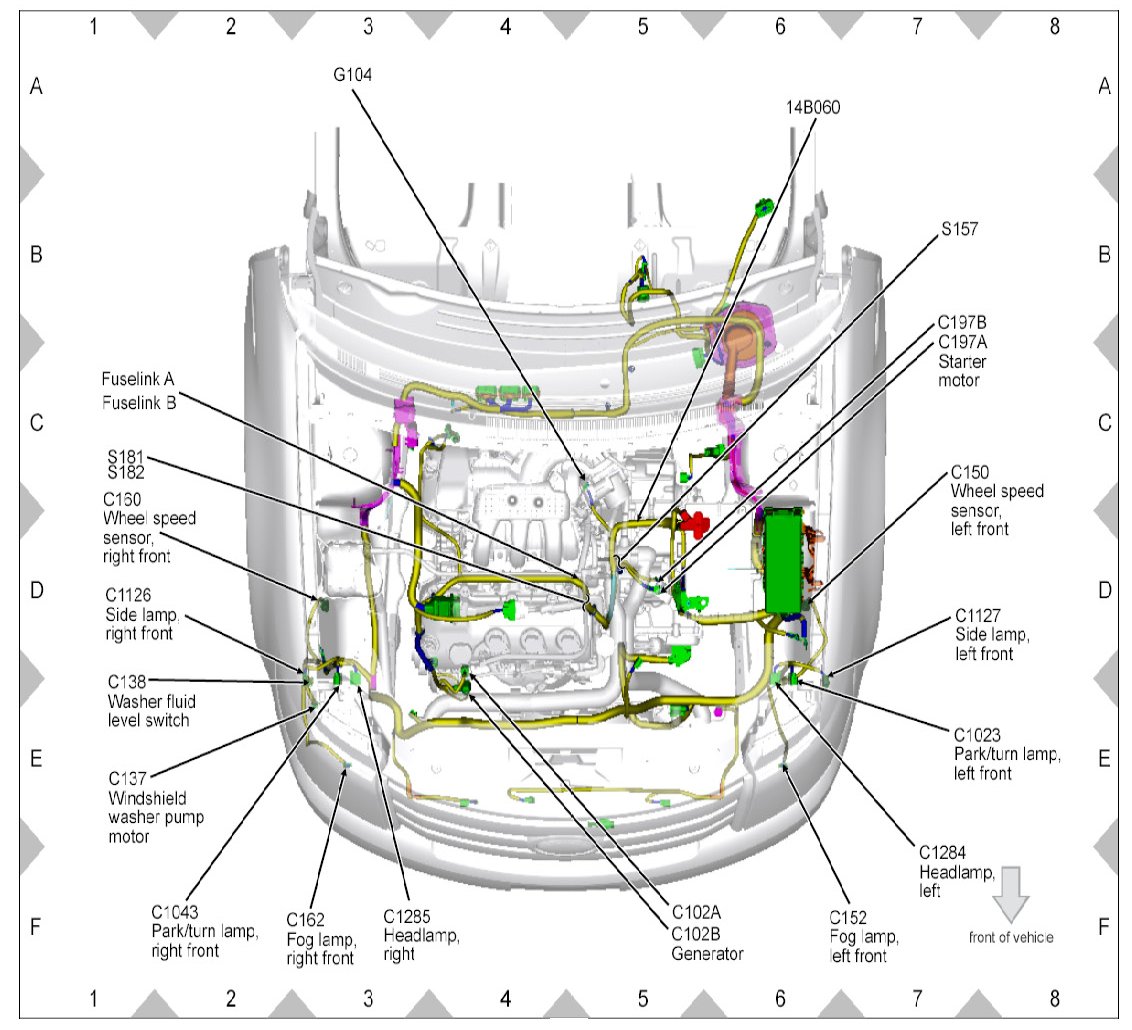

Washer Fluid Level Switch: Locations

View 151-3:



View 151-4:



View 151-5:
