Side Impact Sensor - Second Row, C-Pillar

SIDE IMPACT SENSOR - SECOND ROW, C-PILLAR







Removal and Installation

WARNING:
- If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

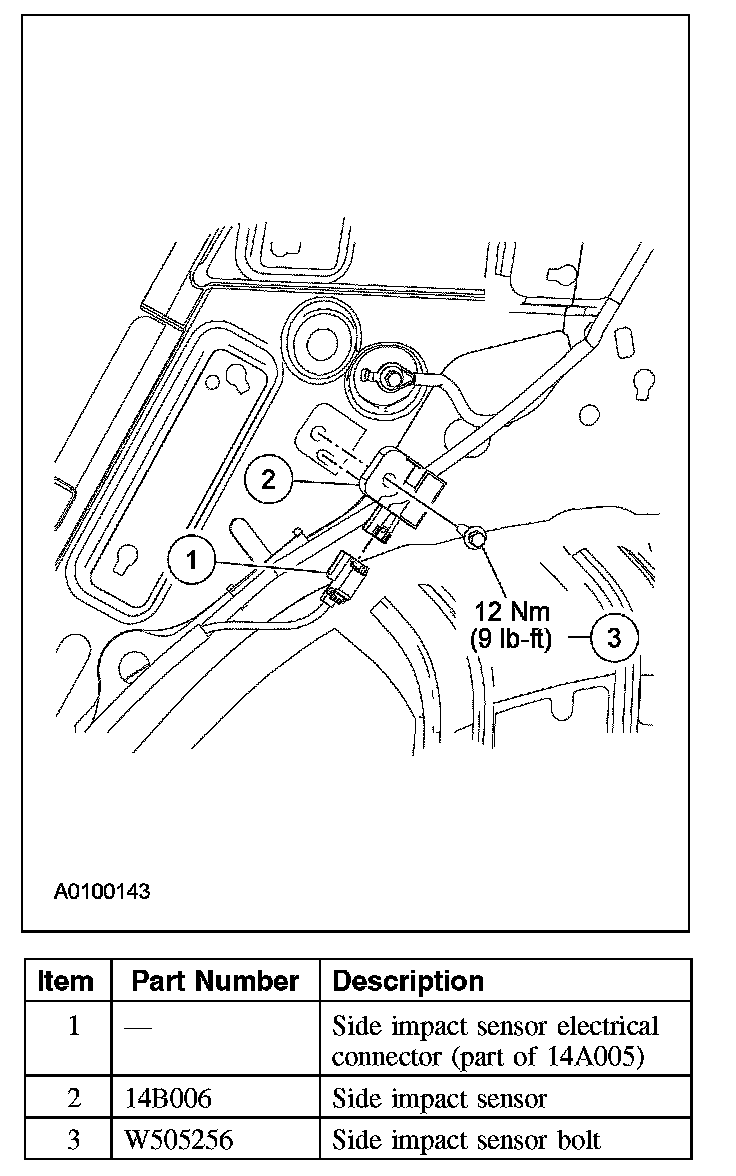

- RH shown, LH similar.

1. Depower the SRS.
2. Remove the rear seat bolster.
3. Disconnect the side impact sensor electrical connector.

4. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.

NOTE:
- Note the position of the side impact sensor and locating tab for installation.
- Make sure the C-pillar and side impact sensor mating surfaces are clean and free of foreign material.

Remove the bolt and side impact sensor.
- To install, tighten to 12 Nm (9 lb-ft).

5. To install, reverse the removal procedure.
6. Repower the SRS.
