Side Impact Sensor - Front Door

SIDE IMPACT SENSOR - FRONT DOOR







Removal and Installation

WARNING:
- If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
- To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- RH shown, LH similar.

1. Depower the SRS.
2. Remove the front door trim panel.
3. Disconnect the side impact sensor electrical connector.

4. WARNING: Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.

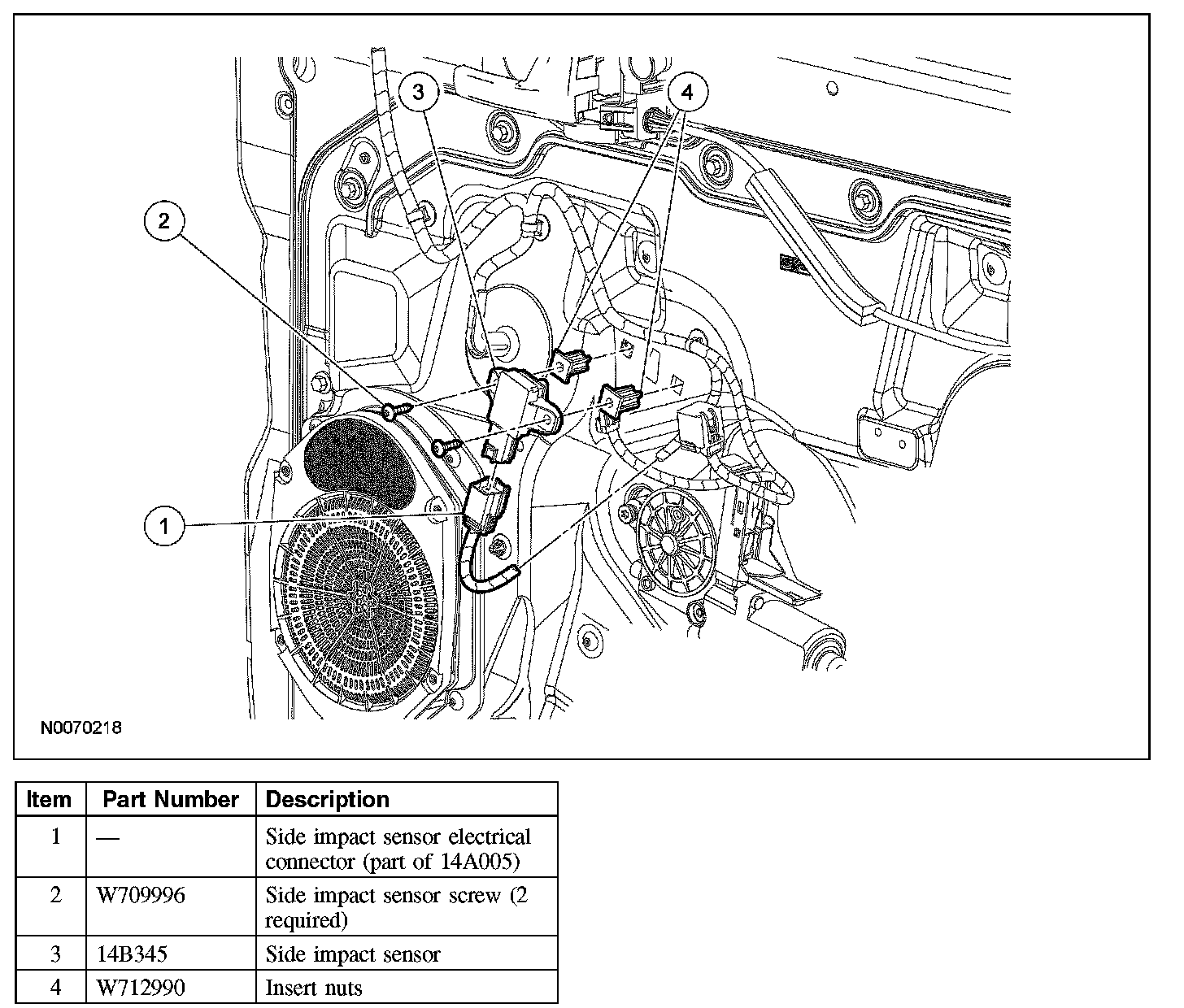

Remove the 2 side impact sensor screws and remove the side impact sensor.

- NOTE: Inspect the insert nut for damage. If the insert nut is damaged, install a new part.

To install, tighten to 0.9 Nm (9 lb-in).

5. To install, reverse the removal procedure.
6. Repower the SRS.
