Headlamp Switch: Service and Repair

HEADLAMP SWITCH







Removal and Installation

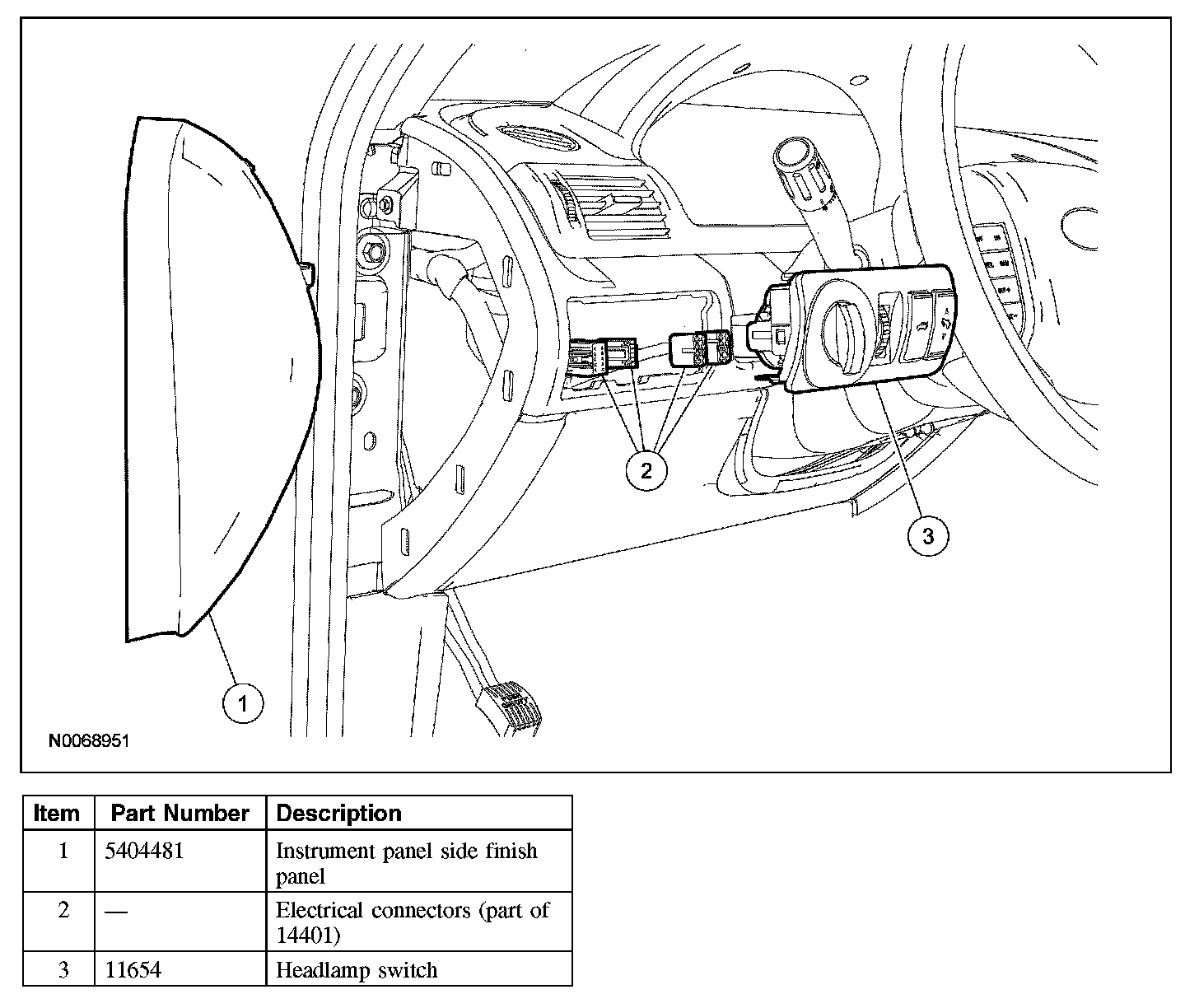

NOTE: The headlamp switch is removed by releasing the tabs and pushing from behind.

1. Remove the instrument panel side finish panel.
2. Disconnect the connectors and remove the headlamp switch.
3. To install, reverse the removal procedure.
