Traction Control Switch: Service and Repair

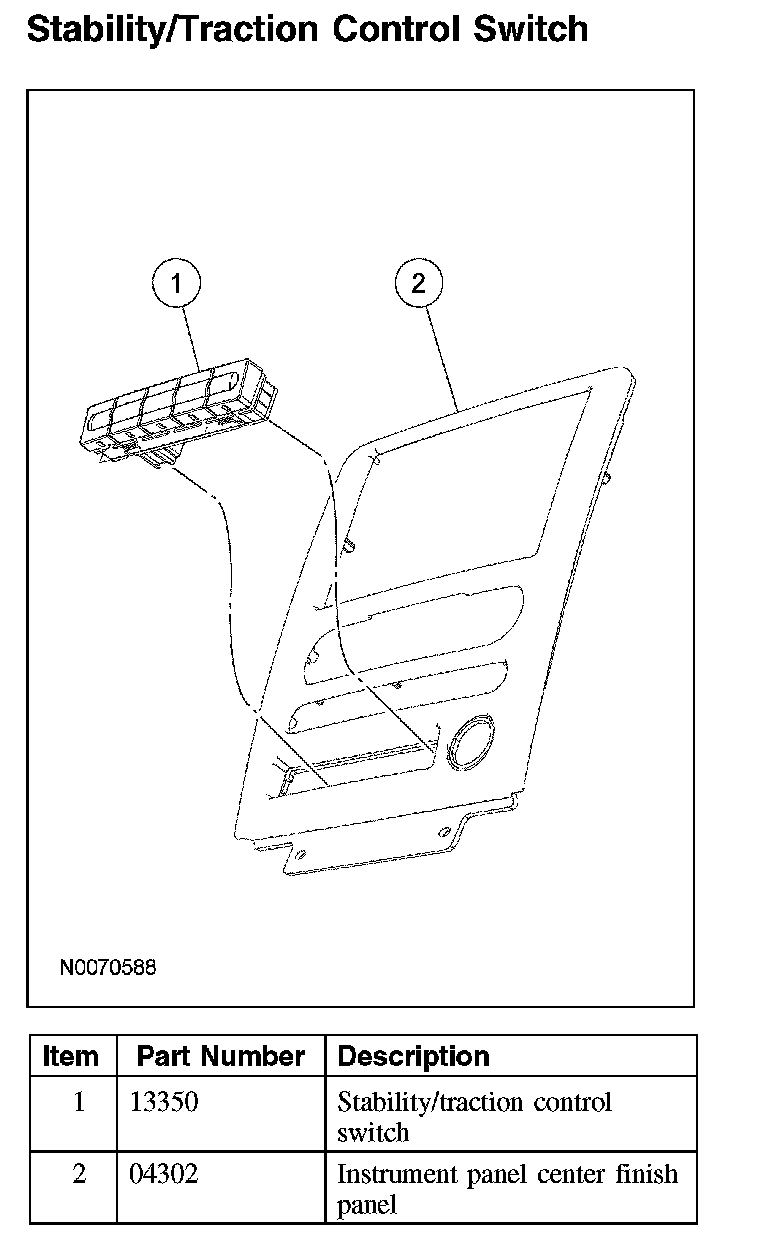

Stability/Traction Control Switch

Stability/Traction Control Switch:





Removal and Installation
1. Remove the instrument panel center finish panel.
2. Depress the 4 tabs and remove the stability/traction control switch from the instrument panel center finish panel.





3. To install, reverse the removal procedure.
