Test X: LFC 55 DTC C2202 - Front Passenger's Seat Track Position Switch Circuit Short to Ground

PINPOINT TEST X: LFC 55 DTC C2202 - FRONT PASSENGER'S SEAT TRACK POSITION SWITCH CIRCUIT SHORT TO GROUND

Normal Operation
The restraints control module (RCM) monitors the passenger seat track position sensor circuits. If the RCM detects a short to ground on the passenger seat track position sensor circuit, it will store DTC C2202 in memory and send a message to the instrument cluster module to flash a LFC 55 (or higher priority code if one exists) on the air bag warning indicator.

NOTE: When monitoring fault and/or resistance PIDs with the scan tool, it may take up to 2 seconds for the scan tool display to update.

- DTC C2202 Front Passenger's Seat Track Position Switch Circuit Short to Ground - If the RCM detects a short to ground on the passenger seat track position sensor circuit for greater than 2.5 seconds, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Driver seat track position sensor
- RCM

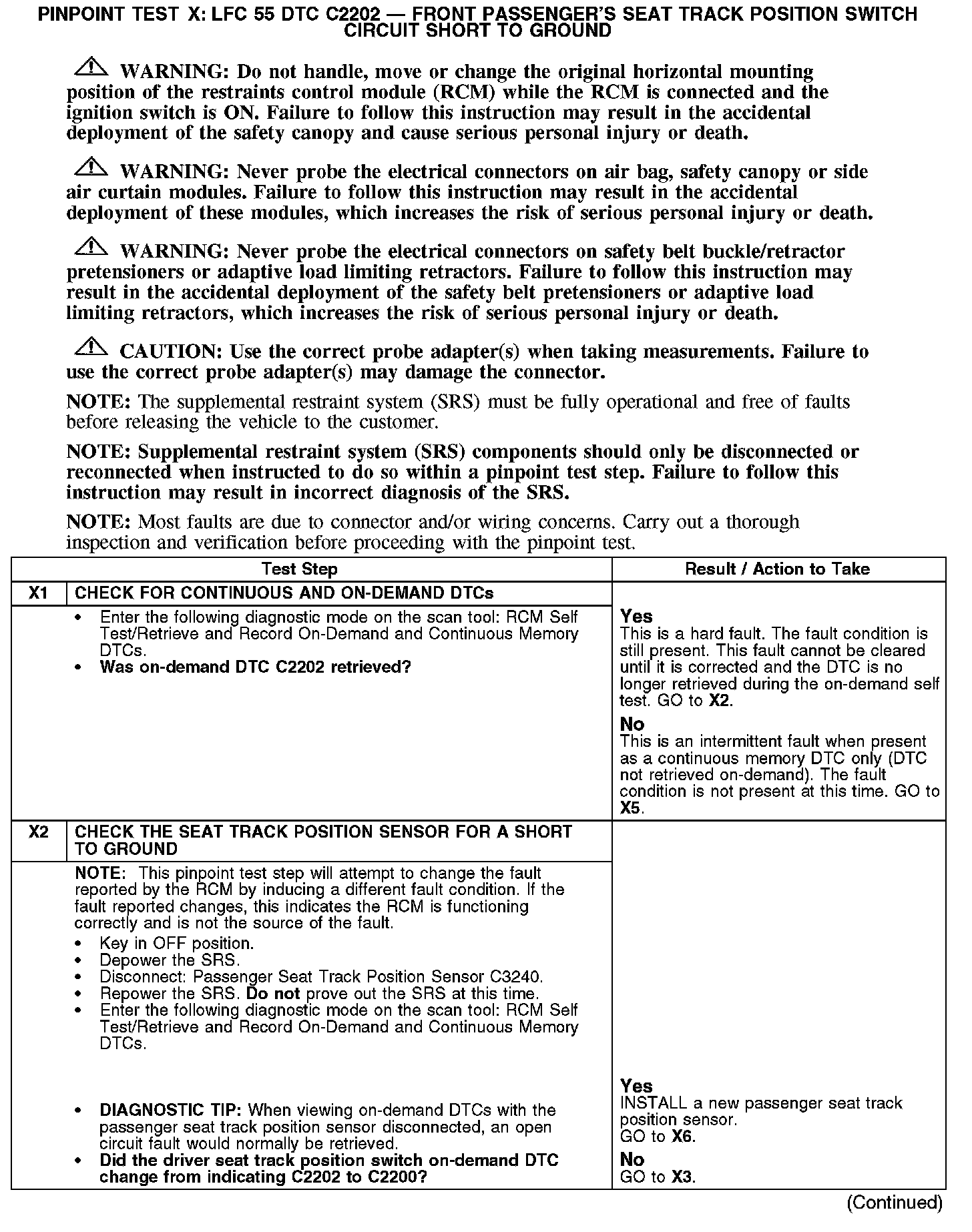

X1-X2:

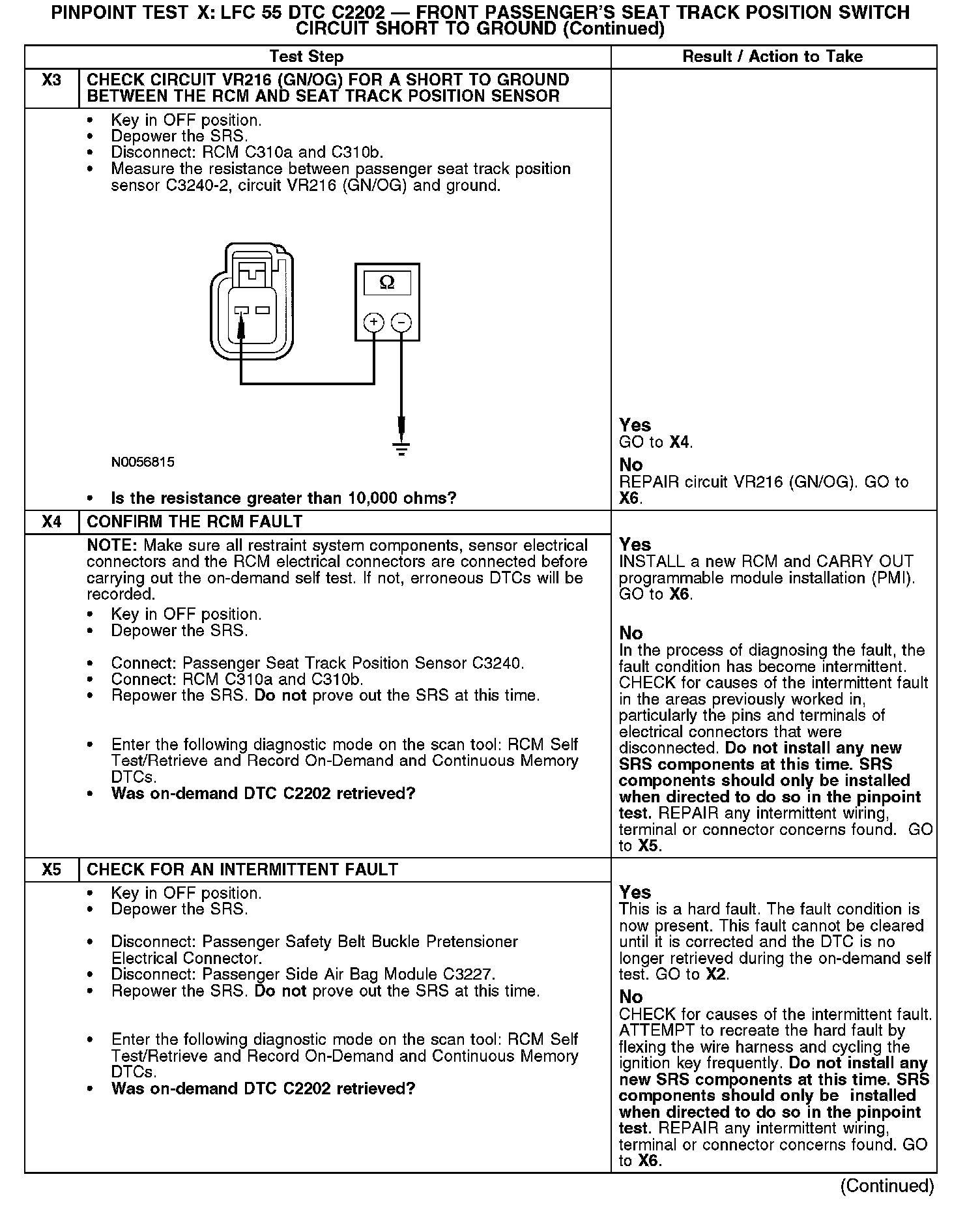

X3-X5:

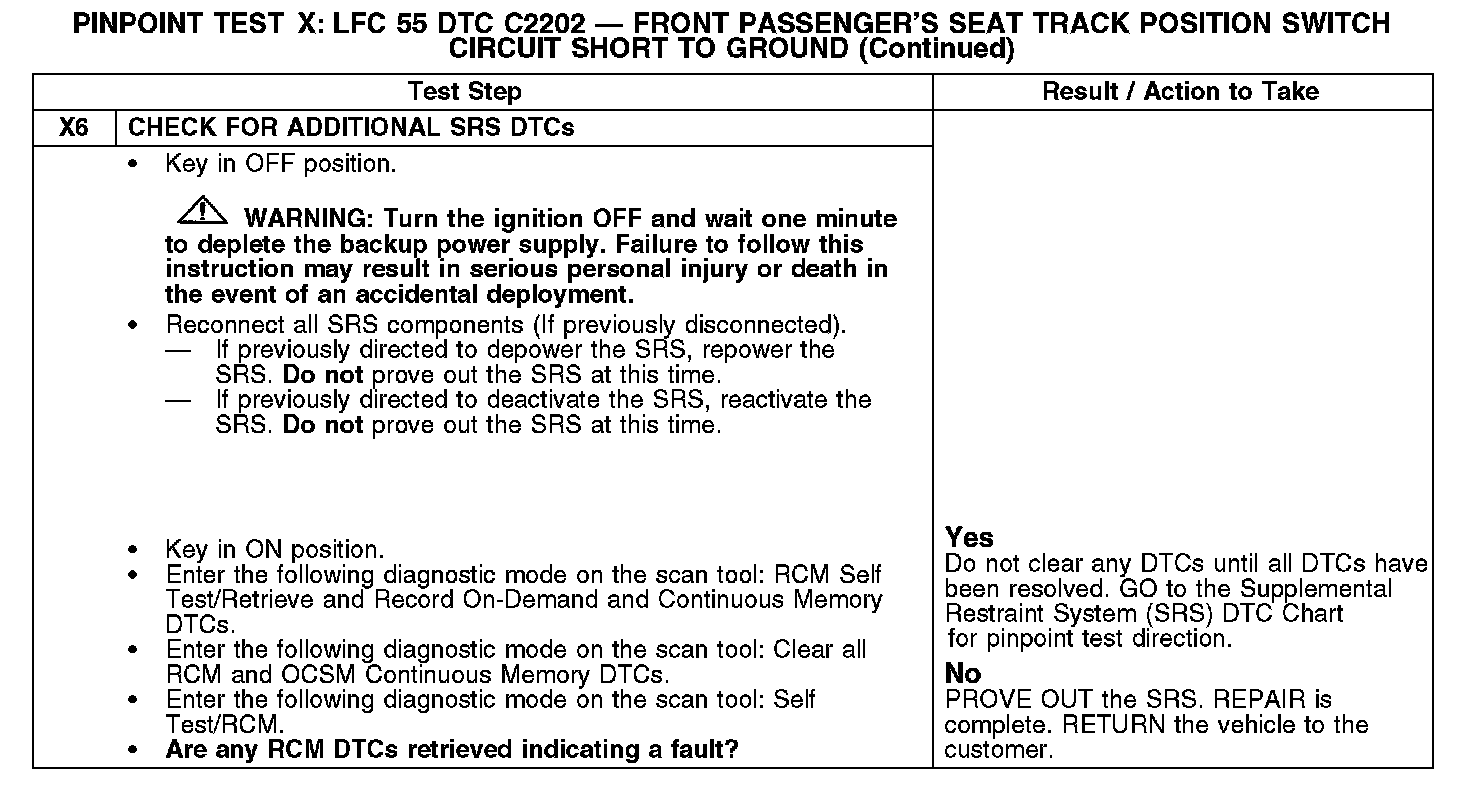

X6:
