Test T: LFC 49 DTC C1947 - Front Driver's Seat Track Position Switch Circuit Short to Ground

PINPOINT TEST T: LFC 49 DTC C1947 - FRONT DRIVER'S SEAT TRACK POSITION SWITCH CIRCUIT SHORT TO GROUND

Normal Operation
The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects a short to ground, it will store DTC C1947 in memory and send a message to the instrument cluster module to flash a LFC 49 (or higher priority code if one exists) on the air bag warning indicator.

NOTE: When monitoring fault and/or resistance PIDs with the scan tool, it may take up to 2 seconds for the scan tool display to update.

- DTC C1947 Front Driver's Seat Track Position Switch Circuit Short to Ground - If the RCM detects a short to ground on the driver seat track position sensor circuit for greater than 2.5 seconds, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Driver seat track position sensor
- RCM

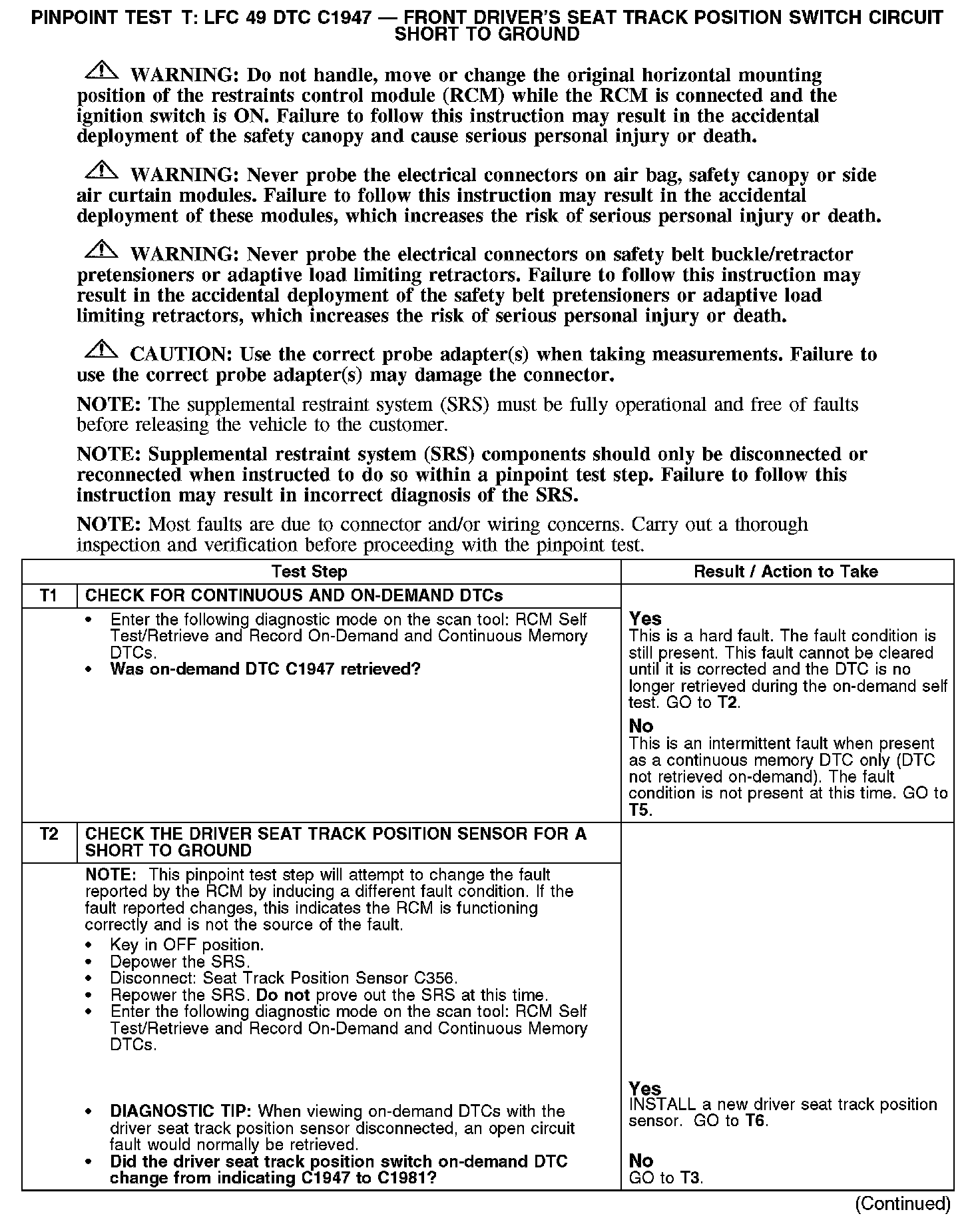

T1-T2:

T3-T5:

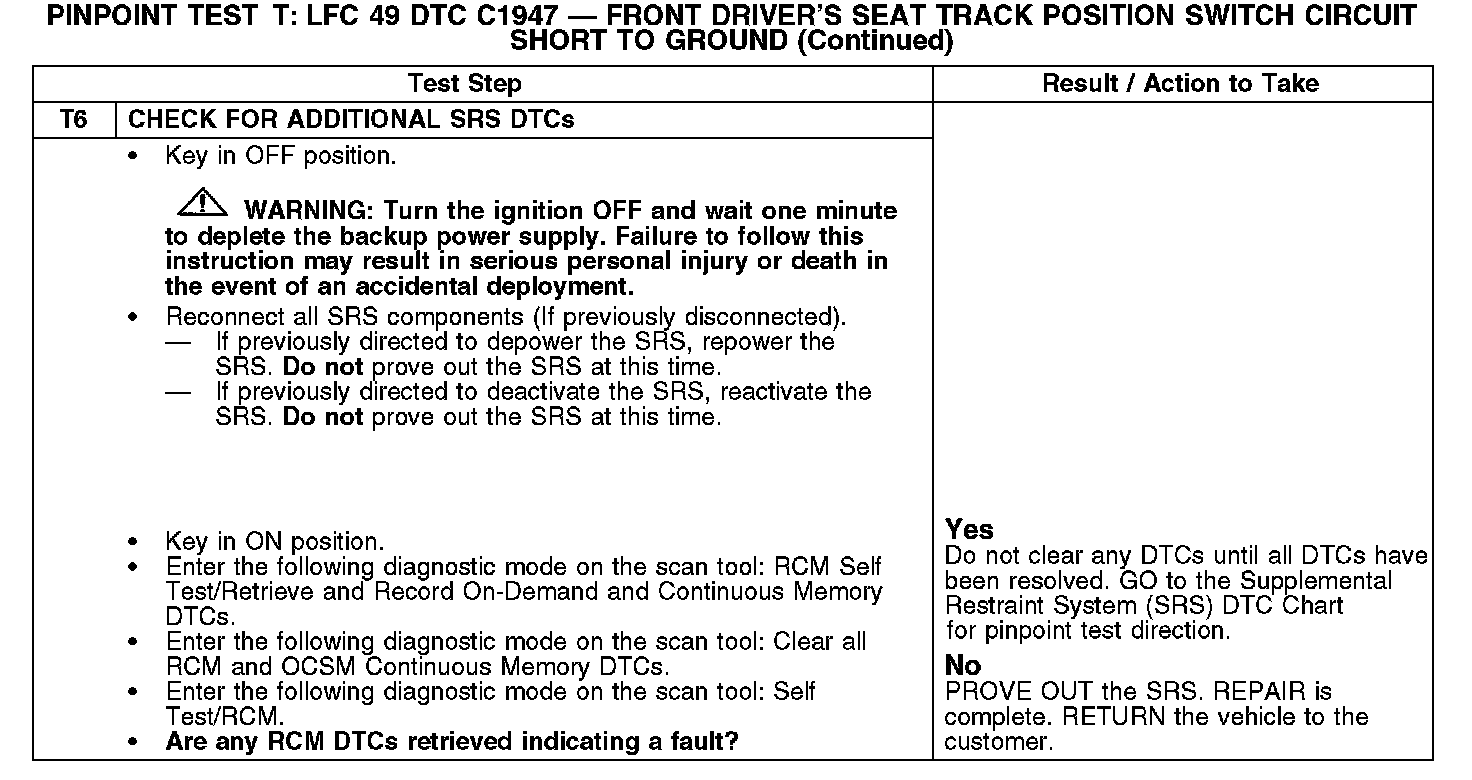

T6:
