Test Q: LFC 52 DTC B2692 - Front Passenger's Seat Belt Buckle Switch Circuit Fault

PINPOINT TEST Q: LFC 52 DTC B2692 - FRONT PASSENGER'S SEAT BELT BUCKLE SWITCH CIRCUIT FAULT

Normal Operation
The restraints control module (RCM) monitors the passenger safety belt buckle switch circuits for faults. If the RCM detects an open circuit or short to voltage fault, it will store DTC B2692 in memory and send a message to the instrument cluster module to flash a LFC 52 (or higher priority code if one exists) on the air bag warning indicator.

NOTE: When monitoring fault and/or resistance PIDs with the scan tool, it may take up to 2 seconds for the scan tool display to update.

- DTC B2692 Front Passenger's Seat Belt Buckle Switch Circuit Fault - If the RCM detects an open or short to battery on the passenger safety belt buckle switch circuit for greater than 2.5 seconds, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Passenger safety belt buckle assembly
- RCM

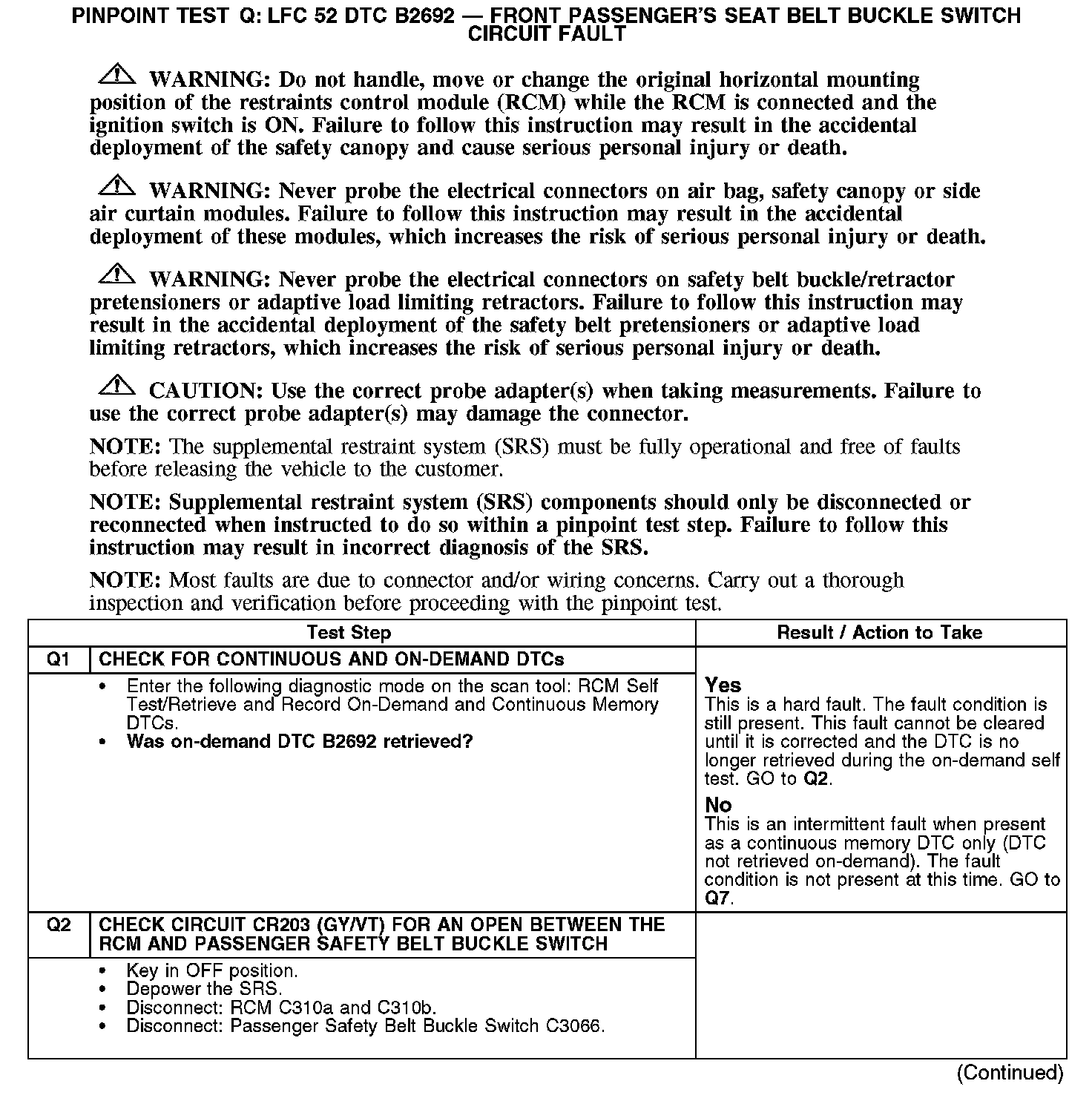

Q1-Q2:

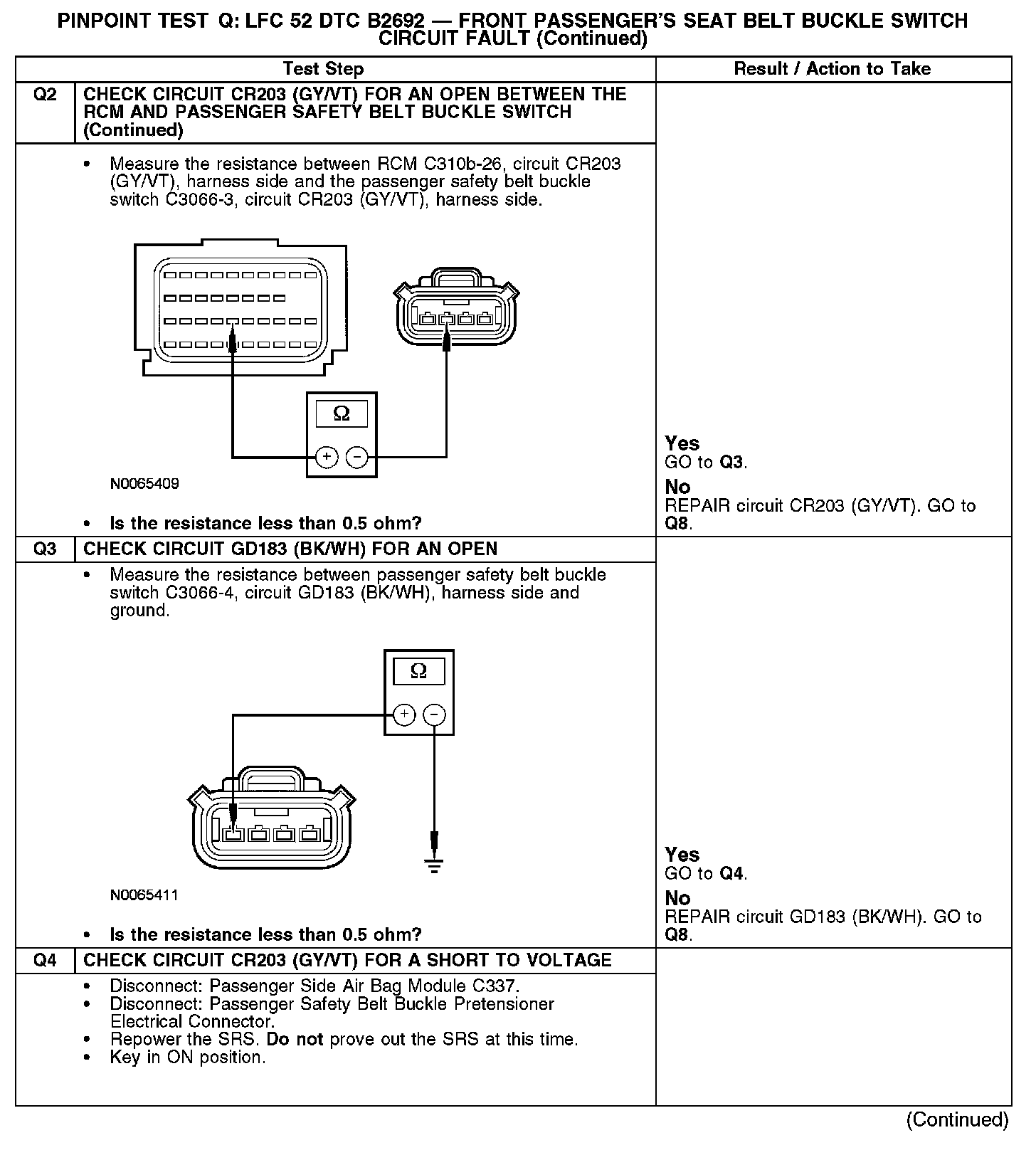

Q2-Q4:

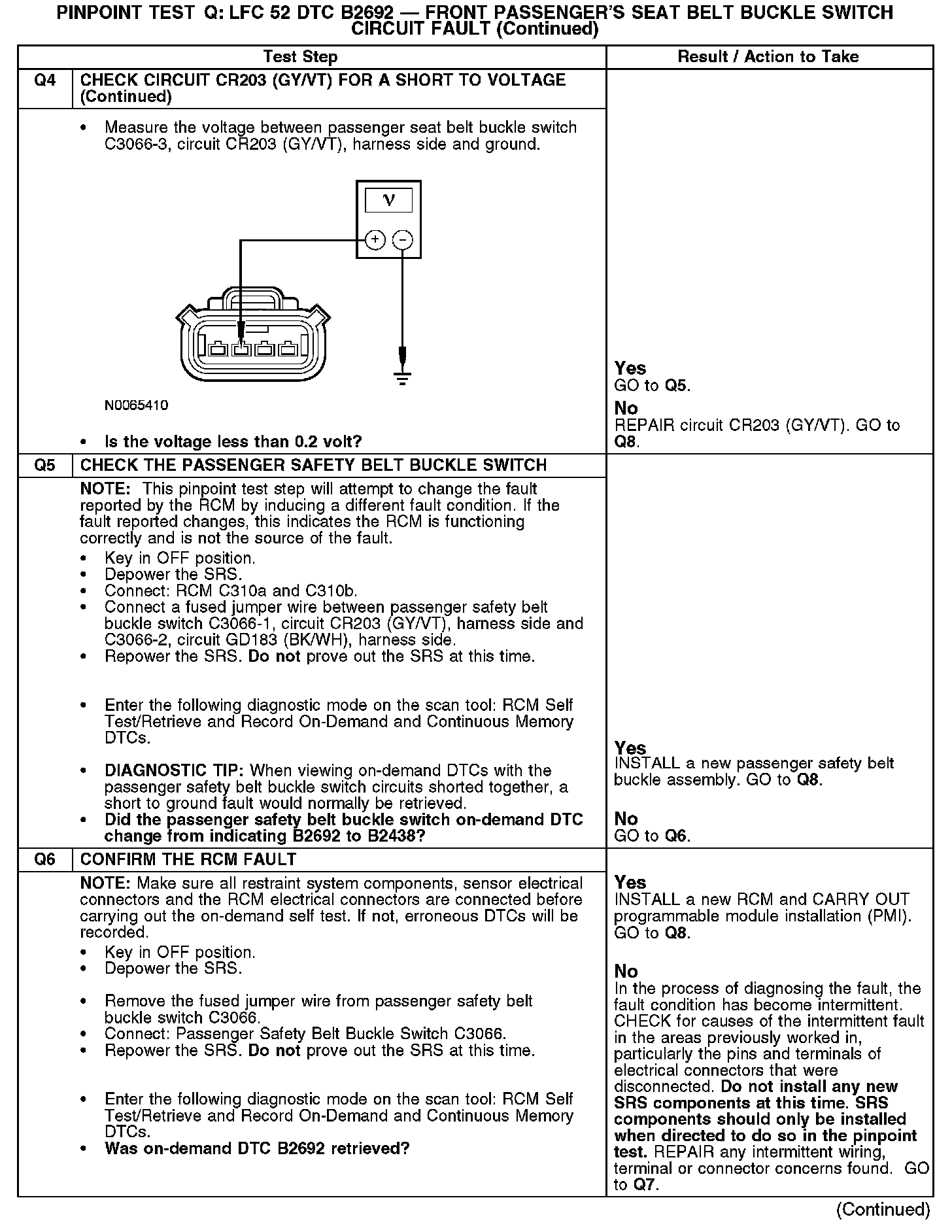

Q4-Q6:

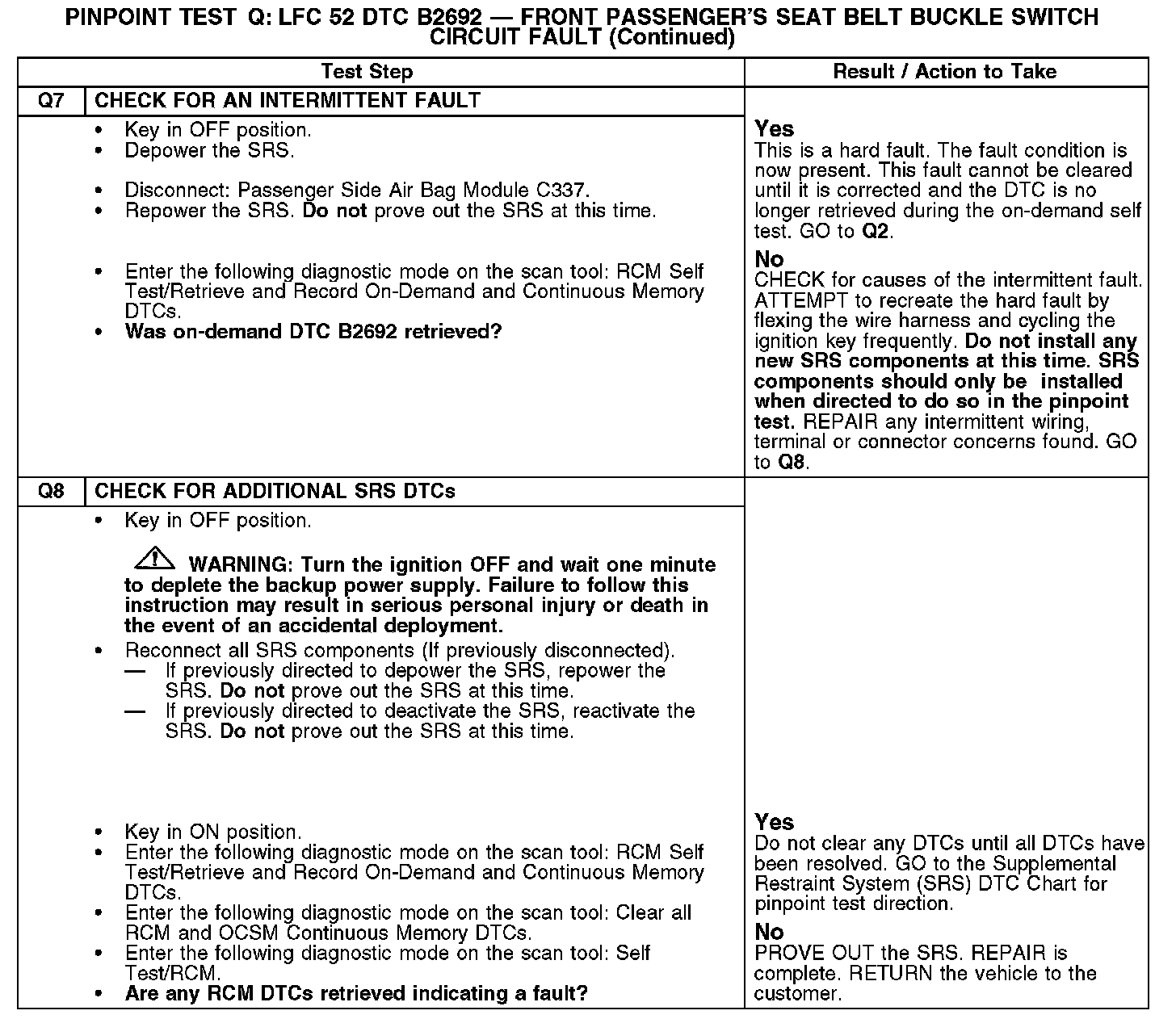

Q7-Q8:
