Test M: LFC 51 DTC B2435 - Drivers Seat Belt Buckle Switch Resistance Out of Range

PINPOINT TEST M: LFC 51 DTC B2435 - DRIVERS SEAT BELT BUCKLE SWITCH RESISTANCE OUT OF RANGE

Normal Operation
The restraints control module (RCM) monitors the driver safety belt buckle switch circuits for faults. If the RCM detects a current out of range fault, it will store DTC B2435 in memory and send a message to the instrument cluster module to flash a LFC 51 (or higher priority code if one exists) on the air bag warning indicator.

NOTE: When monitoring fault and/or resistance PIDs with the scan tool, it may take up to 2 seconds for the scan tool display to update.

- DTC B2435 Drivers Seat Belt Buckle Switch Resistance Out of Range - If the RCM detects a current out of range between buckled and unbuckled on the driver safety belt buckle switch, it will set this DTC.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Driver safety belt buckle assembly
- RCM

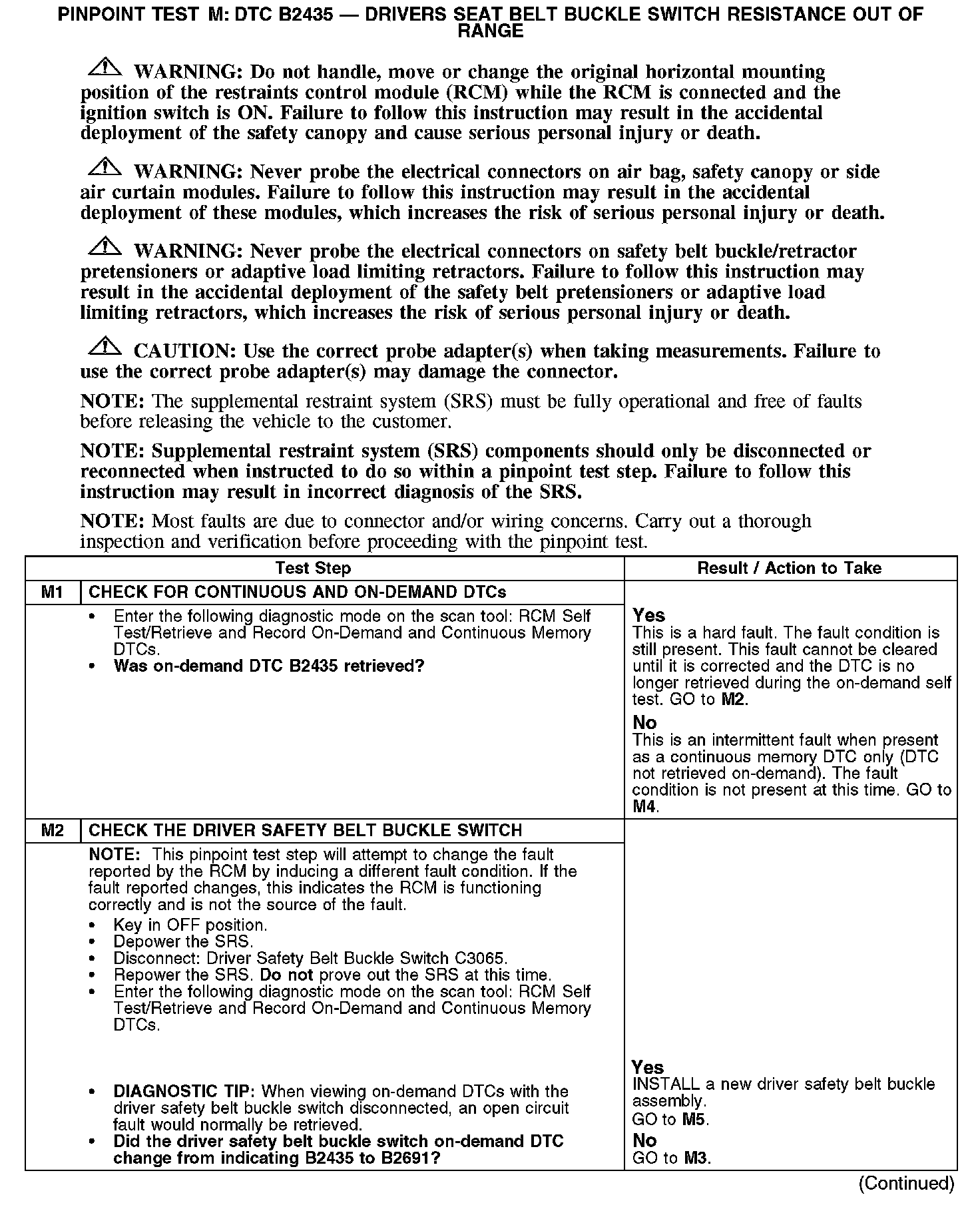

M1-M2:

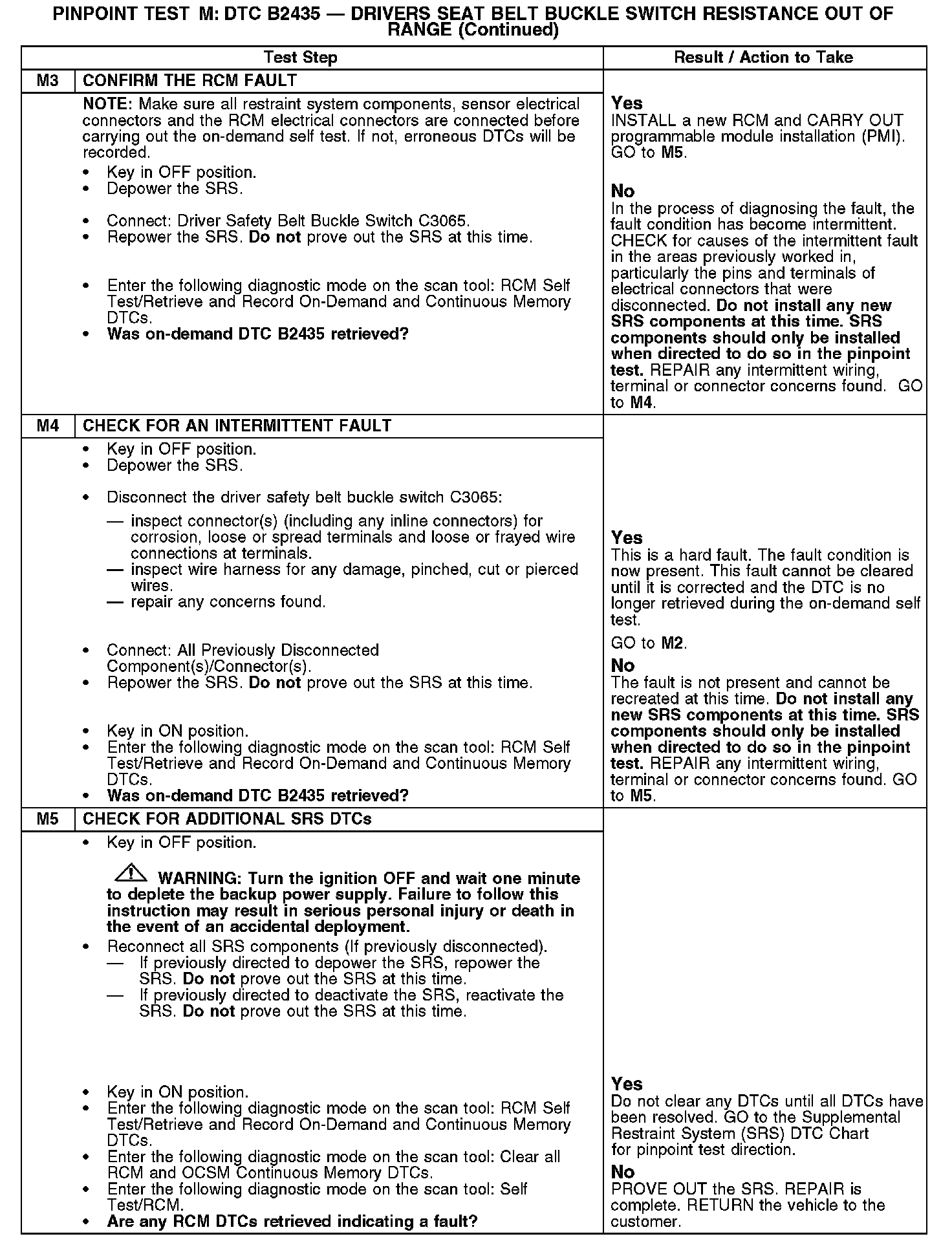

M3-M5:
