Test I: LFC 24 or 25 DTC B2294 - Restraint System - Curtain Fault

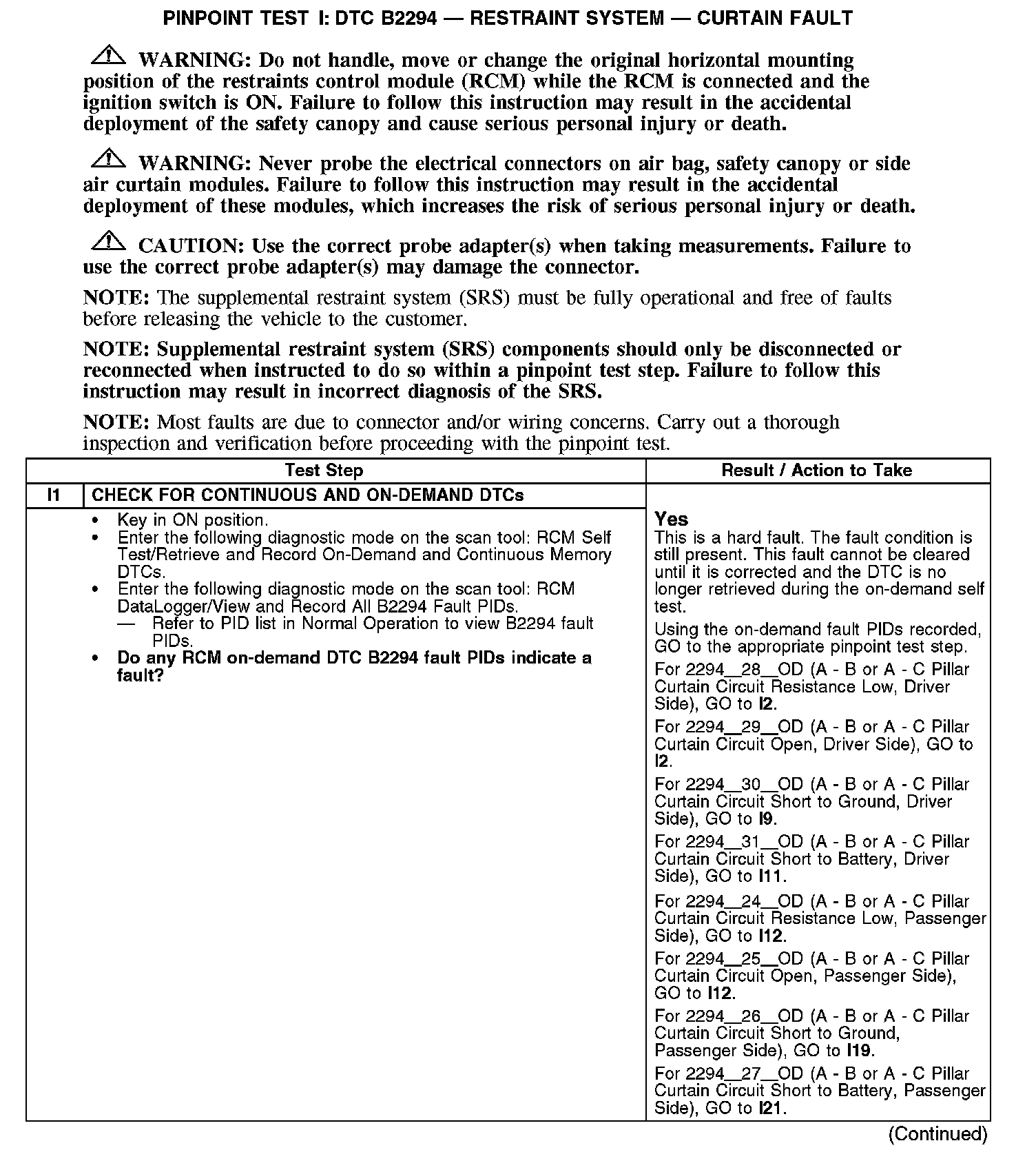

PINPOINT TEST I: LFC 24 OR 25 DTC B2294 - RESTRAINT SYSTEM - CURTAIN FAULT

Normal Operation

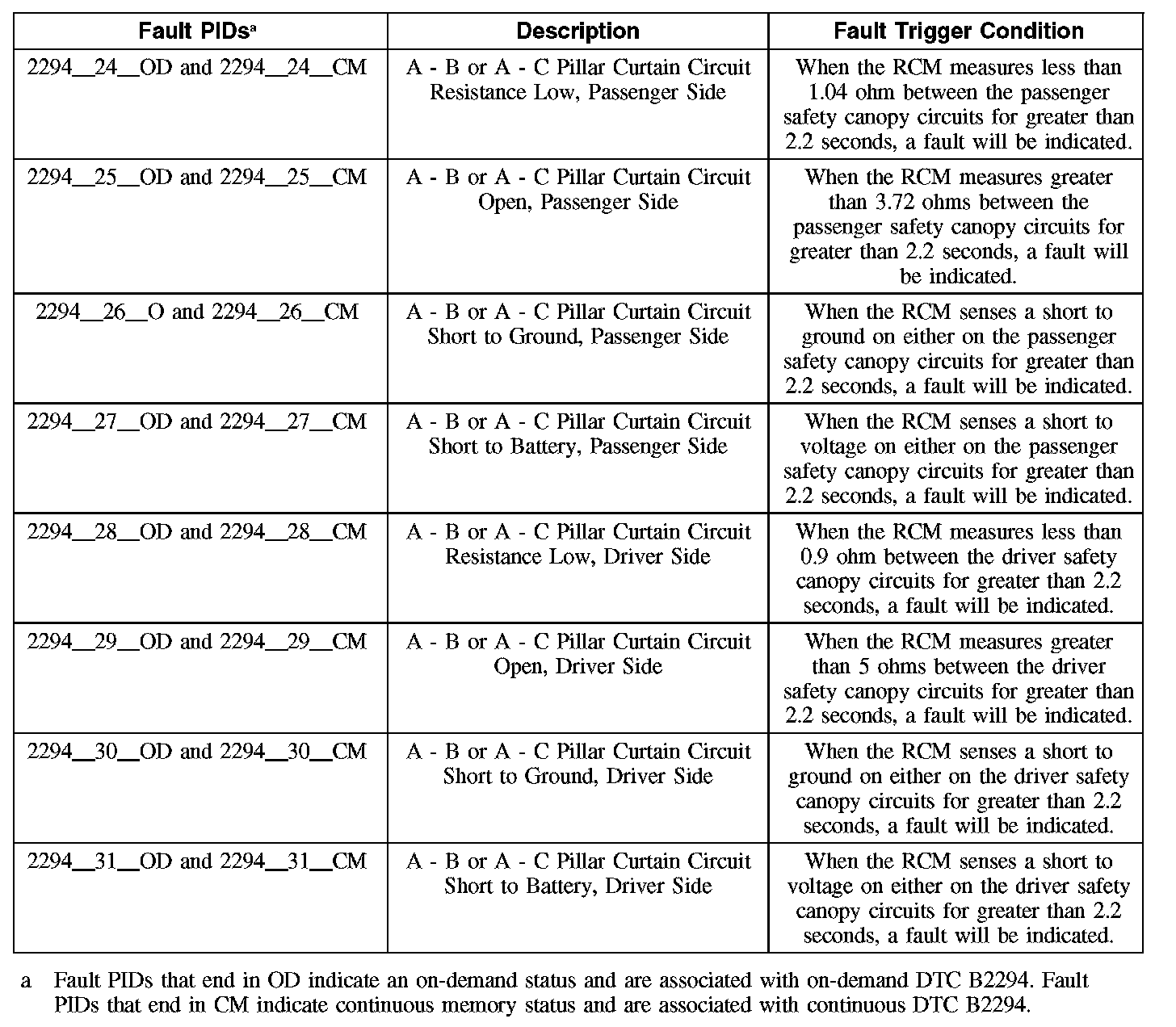

The restraints control module (RCM) monitors all safety canopy module circuits for faults. The RCM will set a DTC if a short to battery or short to ground fault is detected. The RCM will also set a DTC if the loop resistance is less than 1.04 ohm or greater than 3.72 ohms. The normal expected resistance range is 1.50 to 3.04 ohms. If a loop resistance is between 1.04 and 1.50 or between 3.04 and 3.72 ohms, a DTC may or may not set, yet there exists a strong potential for an intermittent fault. If the RCM detects a fault on any of the safety canopy module circuits, it will store DTC B2294 in memory and send a message to the instrument cluster module to flash a LFC 24 or 25 (or higher priority code if one exists) on the air bag warning indicator.
