Home >> Mercury >> 2008 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Steering >> Steering Control Module >> Diagrams

Steering Control Module: Diagrams

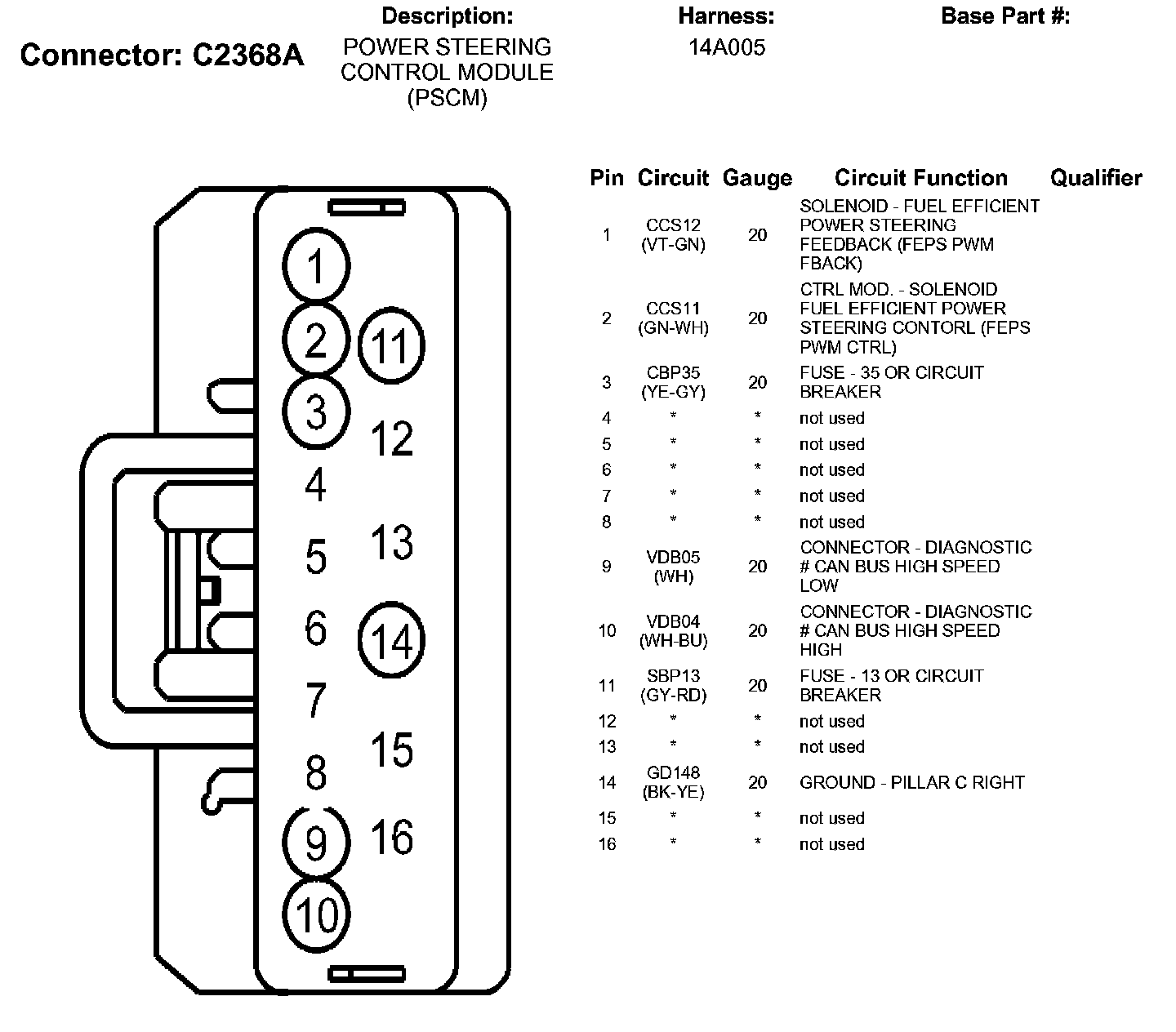

C2368A:

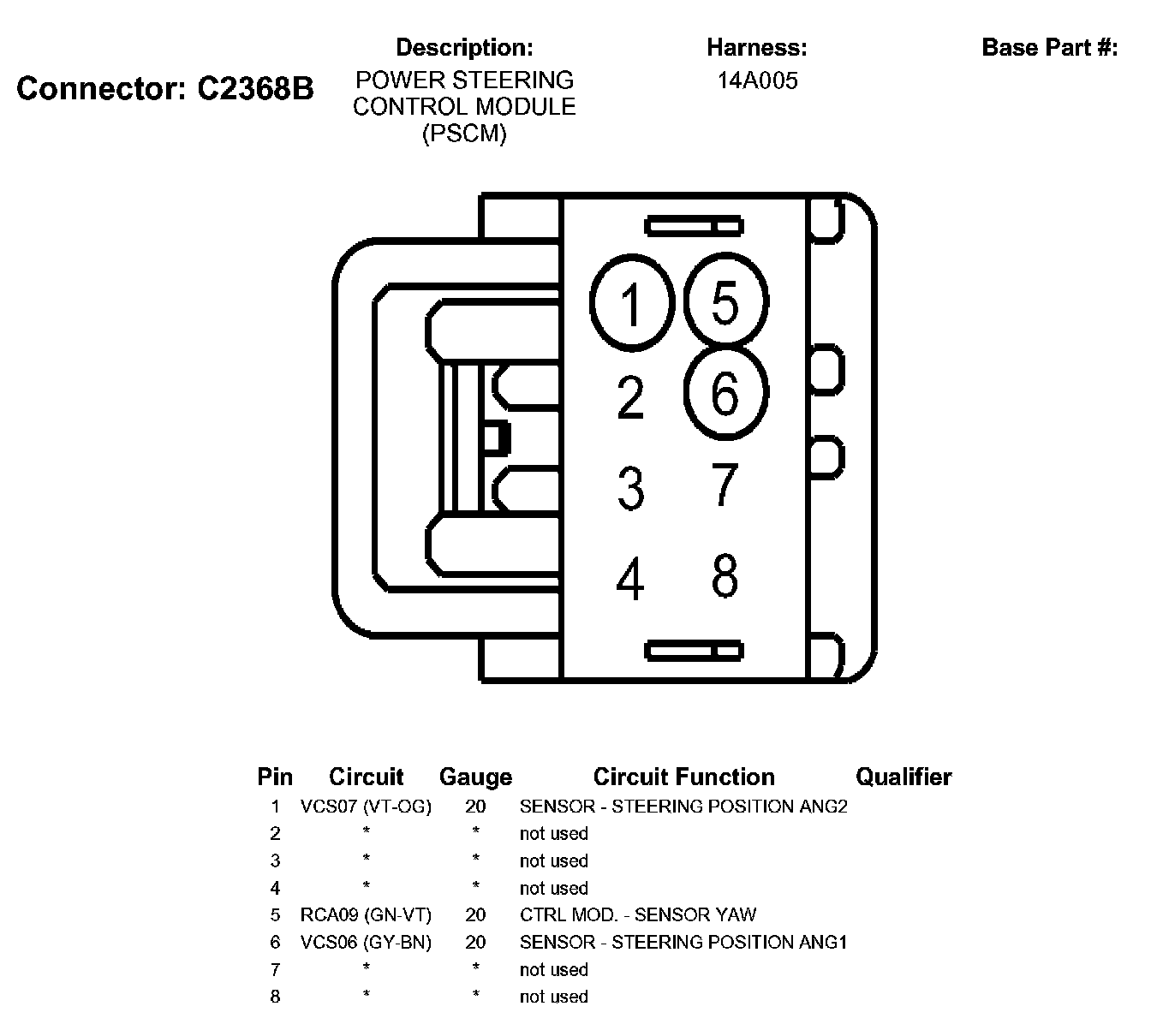

C2368B:
