Throttle Body: Service and Repair

THROTTLE BODY

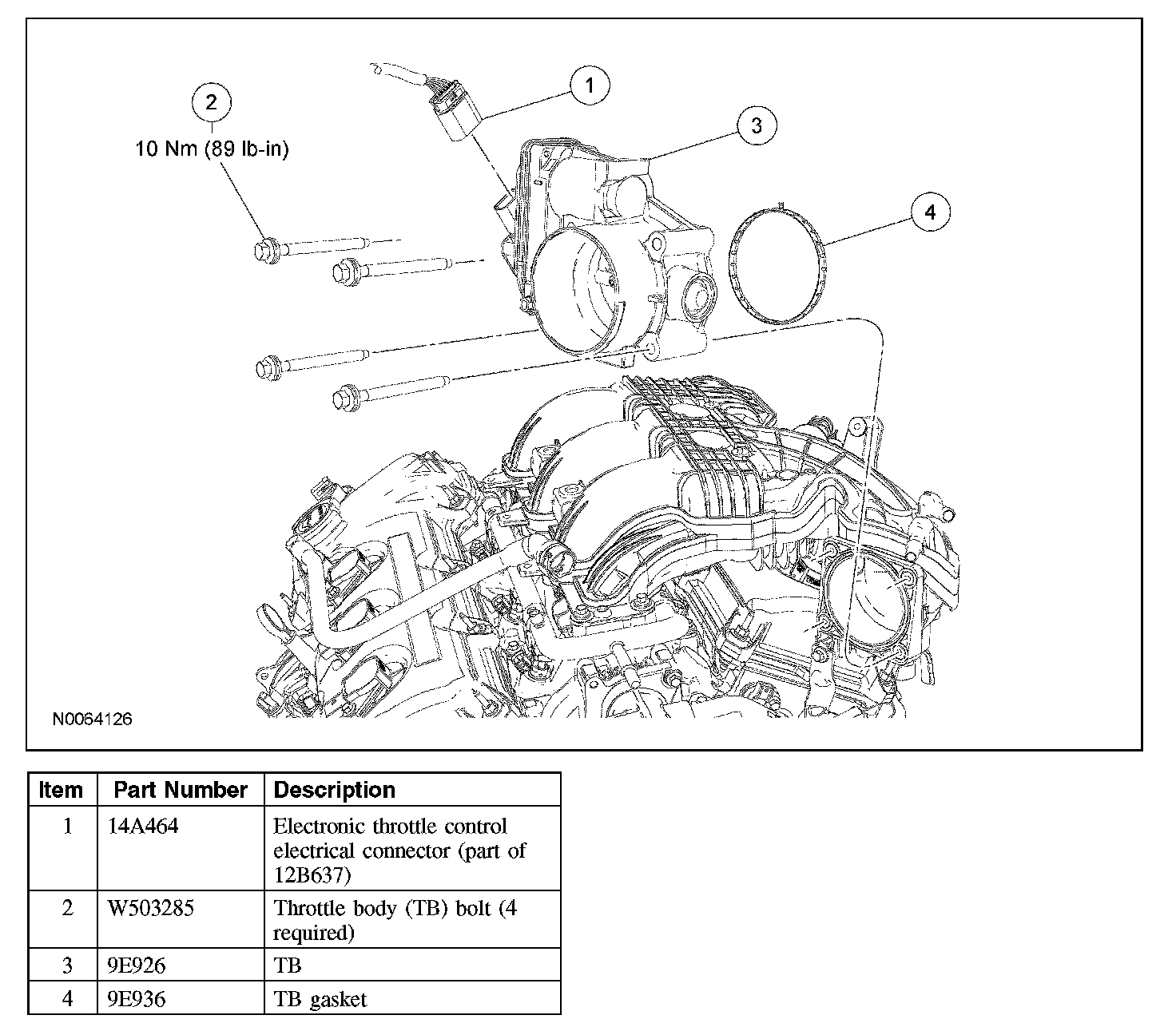

Removal and Installation

CAUTION: The throttle body must be removed from the vehicle to be cleaned. Do not hold the throttle plate open with any object that could scratch the bore or plate while servicing or cleaning the throttle body.

1. Remove the air cleaner outlet pipe.
2. Disconnect the electronic throttle control electrical connector.
3. Remove the 4 bolts and the throttle body (TB).
- Discard the TB gasket.
- To install, tighten to 10 Nm (89 lb-in).

4. NOTE: Install a new TB gasket.

To install, reverse the removal procedure.
