Tests TA: Clutch Pedal Position (CPP) Switch
Tests TA: Clutch Pedal Position (CPP) Switch
PINPOINT TEST TA: CLUTCH PEDAL POSITION (CPP) SWITCH

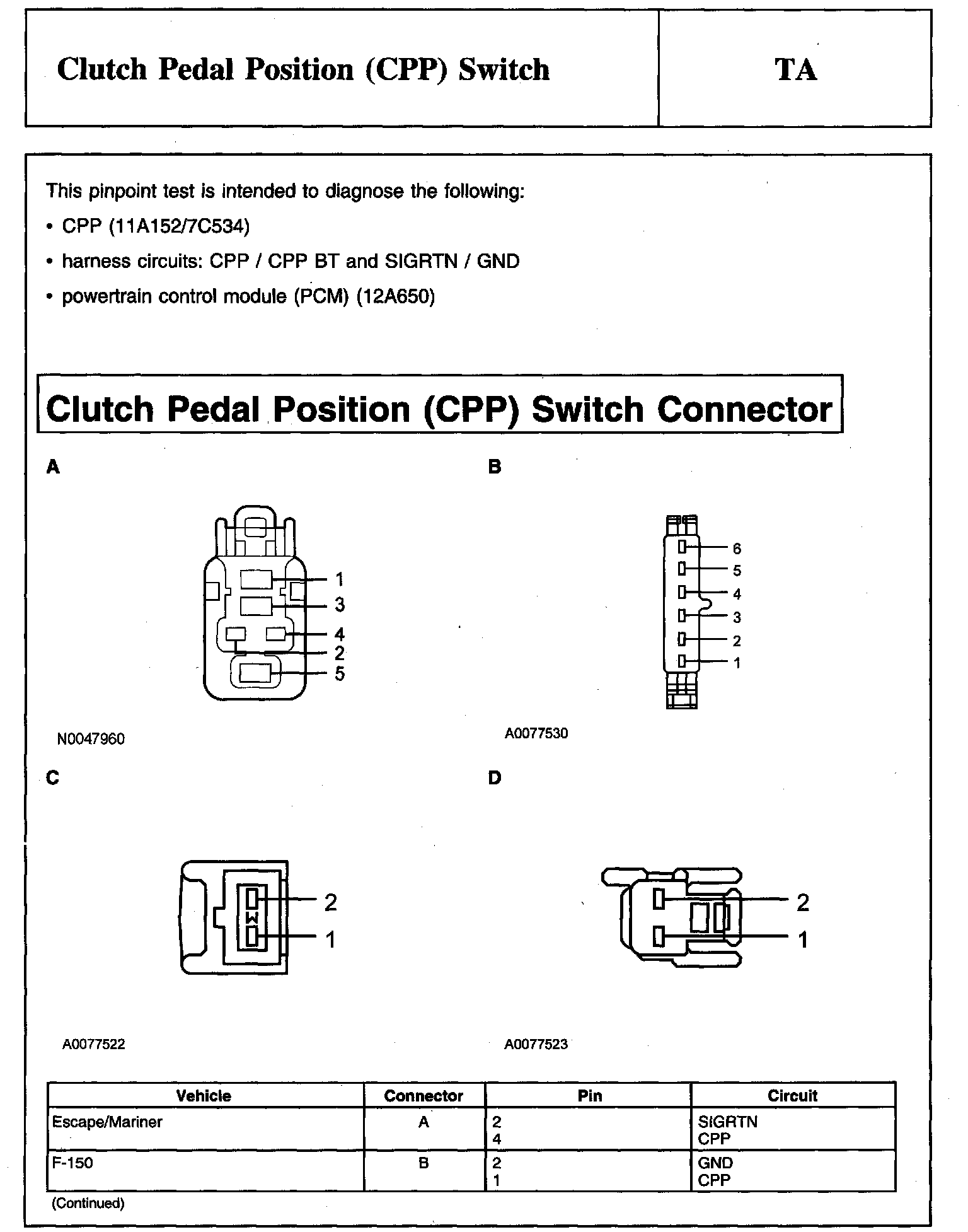

Description And Clutch Pedal Position (CPP) Switch Connector:

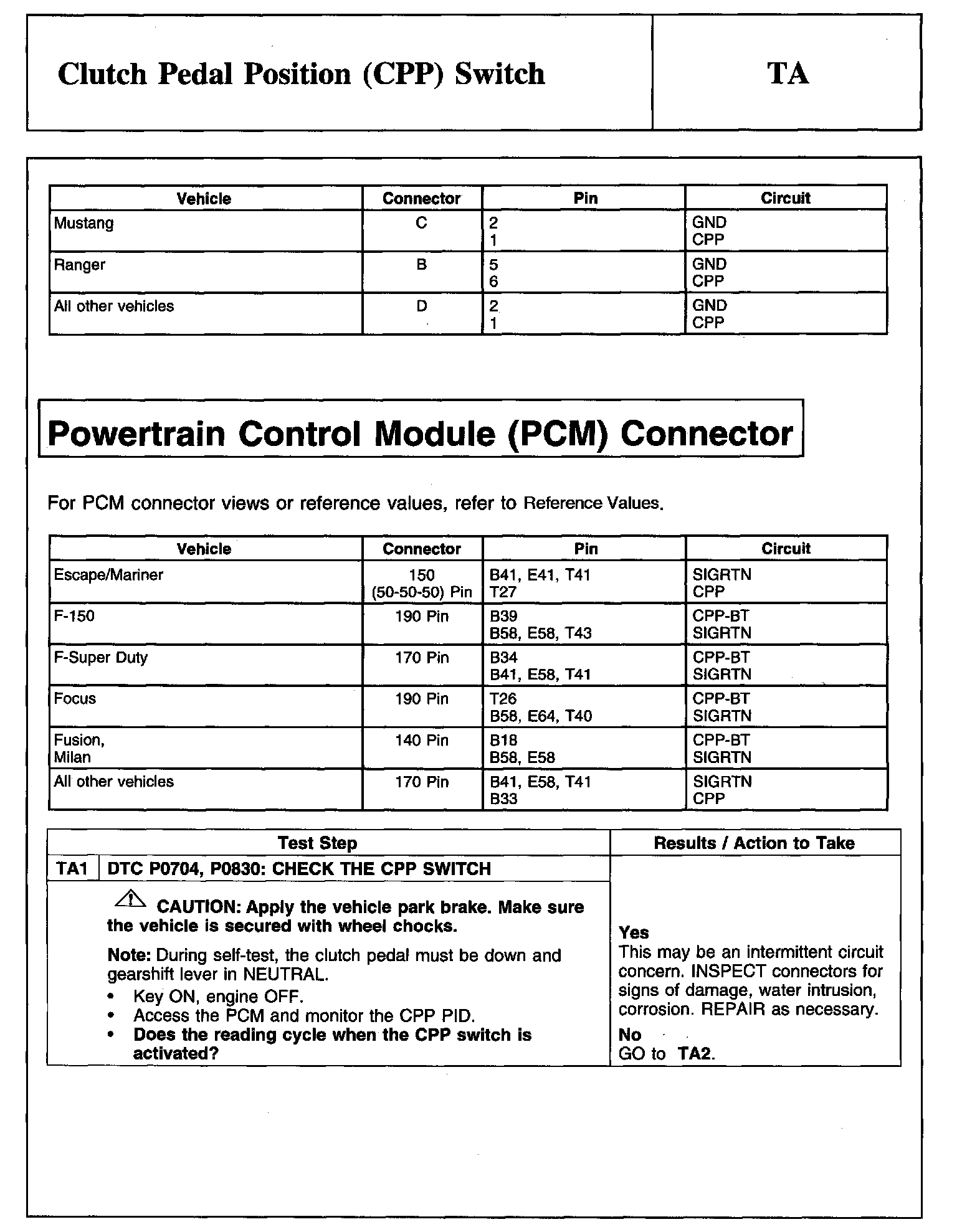

TA1:
TA2-TA3:

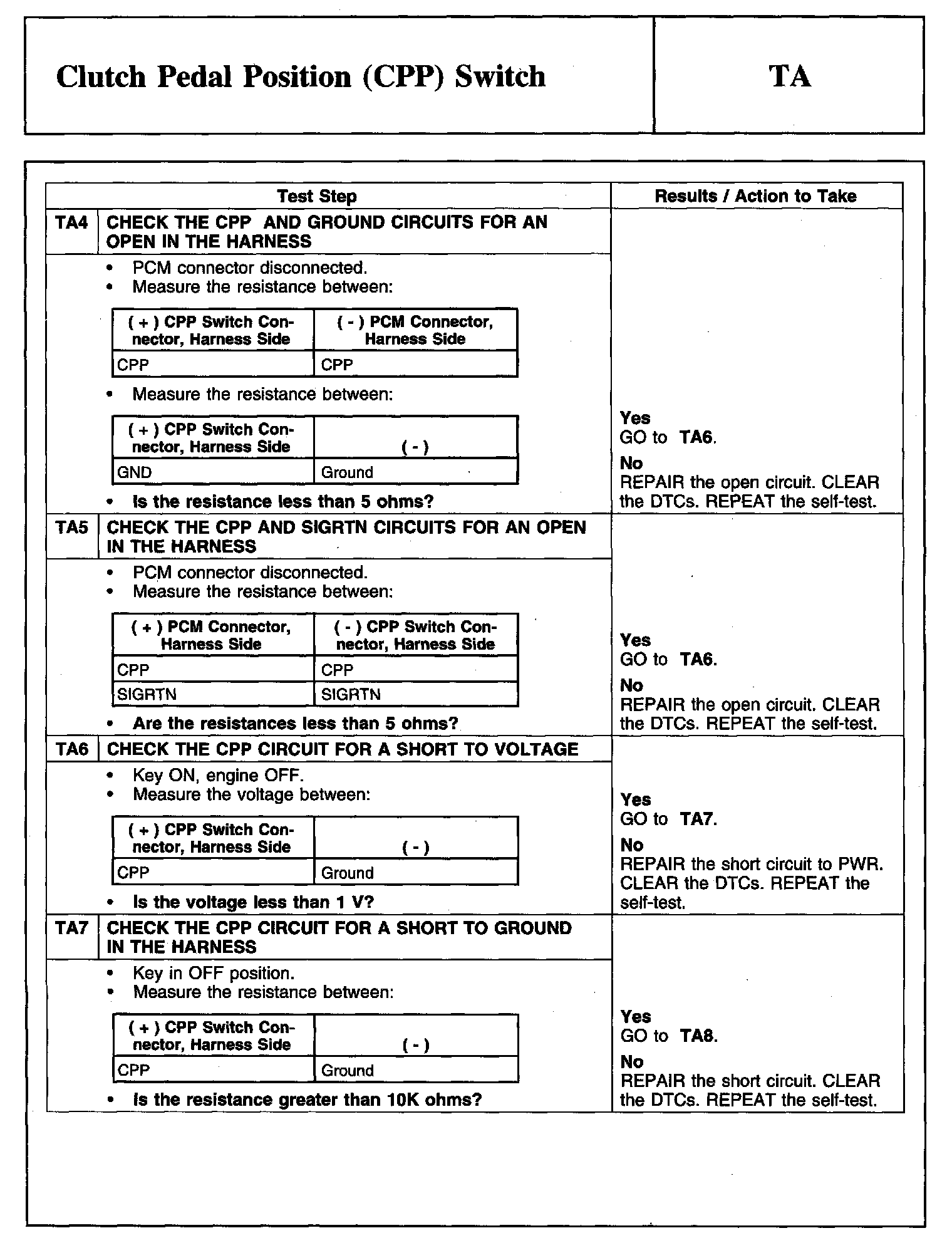

TA4-TA7:

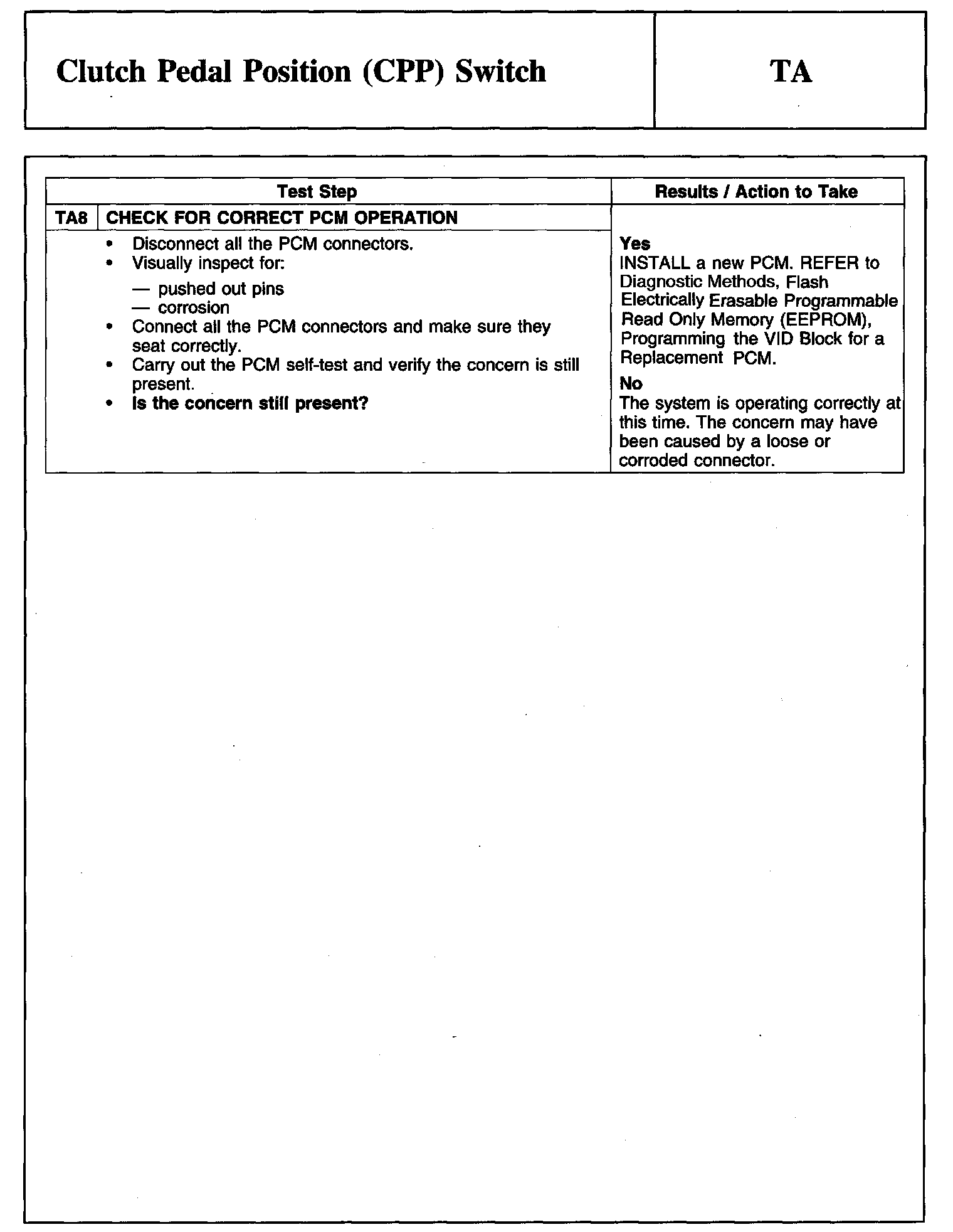

TA8:
