Test S: Intermittent No High Speed Controller Area Network (HS-CAN) Communication, One Or More Modules Are Not Responding Durin

PINPOINT TEST S: INTERMITTENT NO HIGH SPEED CONTROLLER AREA NETWORK (HS-CAN) COMMUNICATION, ONE OR MORE MODULES ARE NOT RESPONDING DURING NETWORK TEST

Normal Operation
An open circuit VDB04 (WH/BU) (HS-CAN +) or VDB05 (WH) (HS-CAN -) may cause intermittent or unreliable communication to all modules on the HS-CAN. The following modules communicate on the HS-CAN:
- PCM
- Power steering control module
- ABS module
- Restraints control module (RCM)
- Four-wheel drive (4WD) control module
- Instrument cluster

In the event that one of the 2 network circuits (HS-CAN + or HS-CAN -) becomes open to a module on the network, unreliable network communication to all modules on the network may result.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors

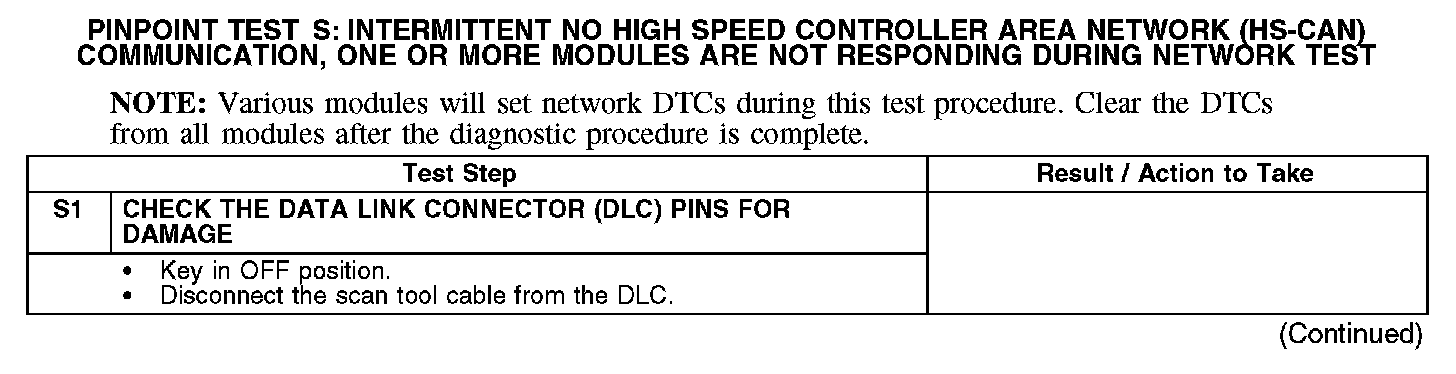

S1:

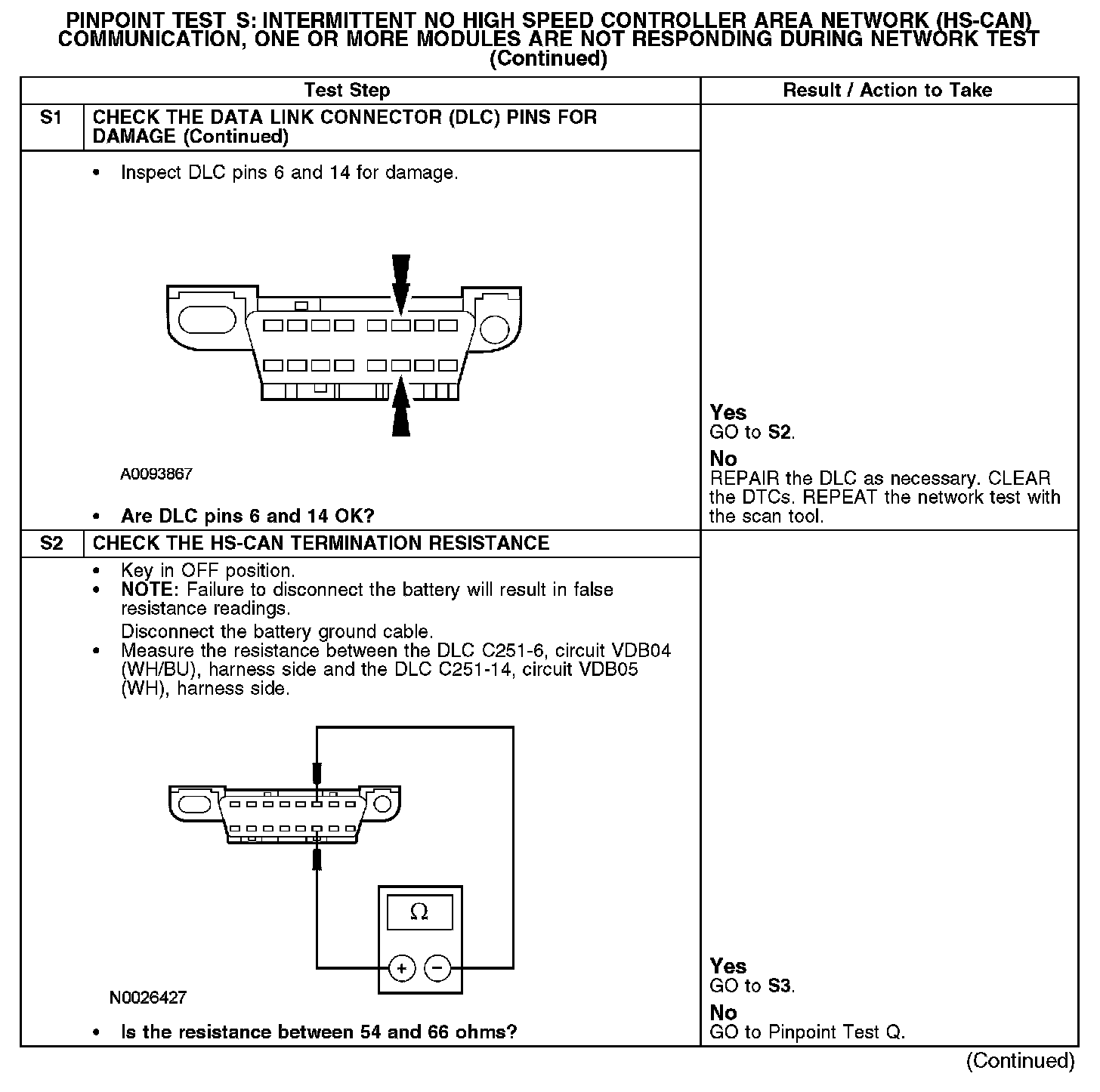

S1-S2:

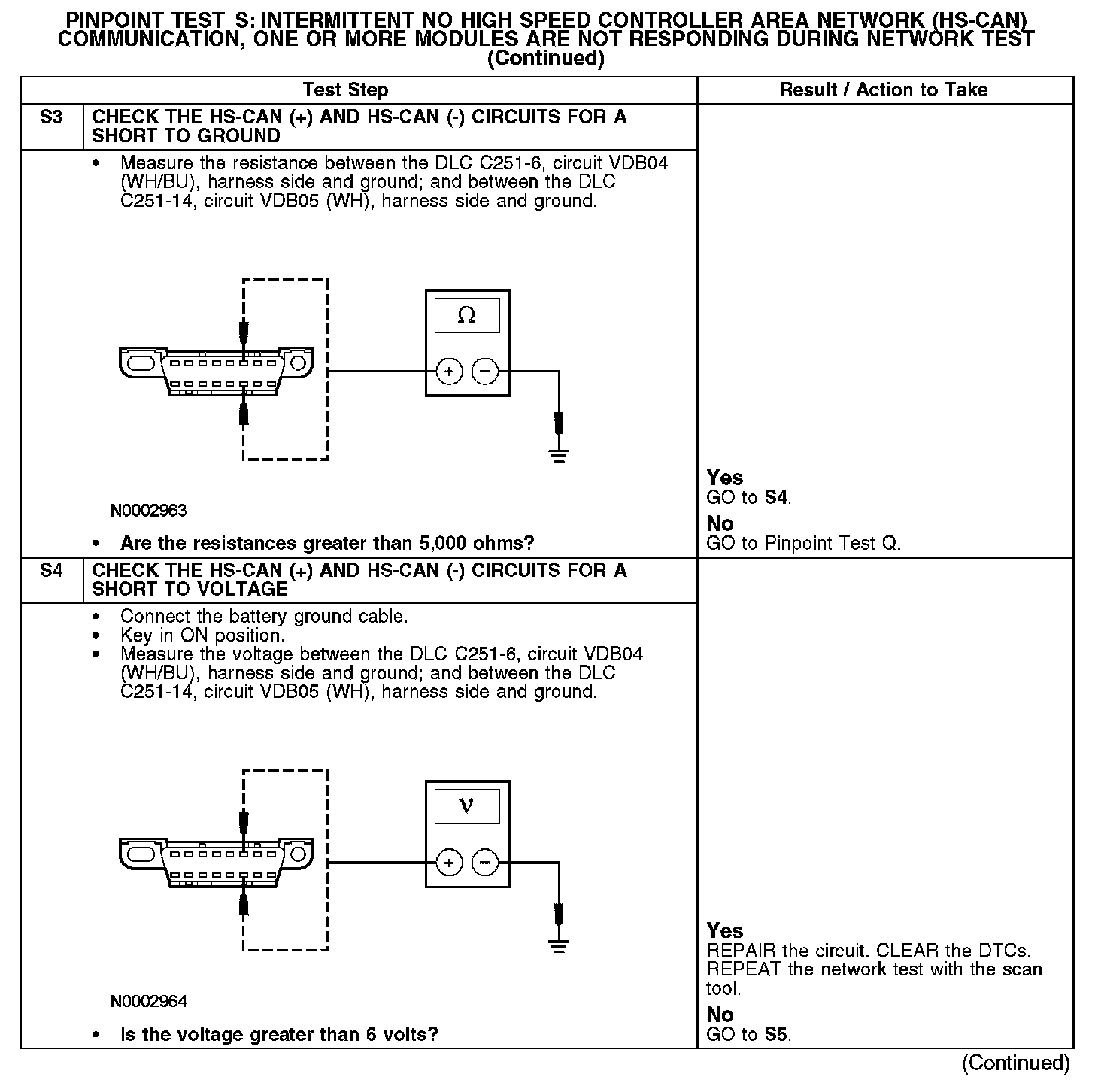

S3-S4:

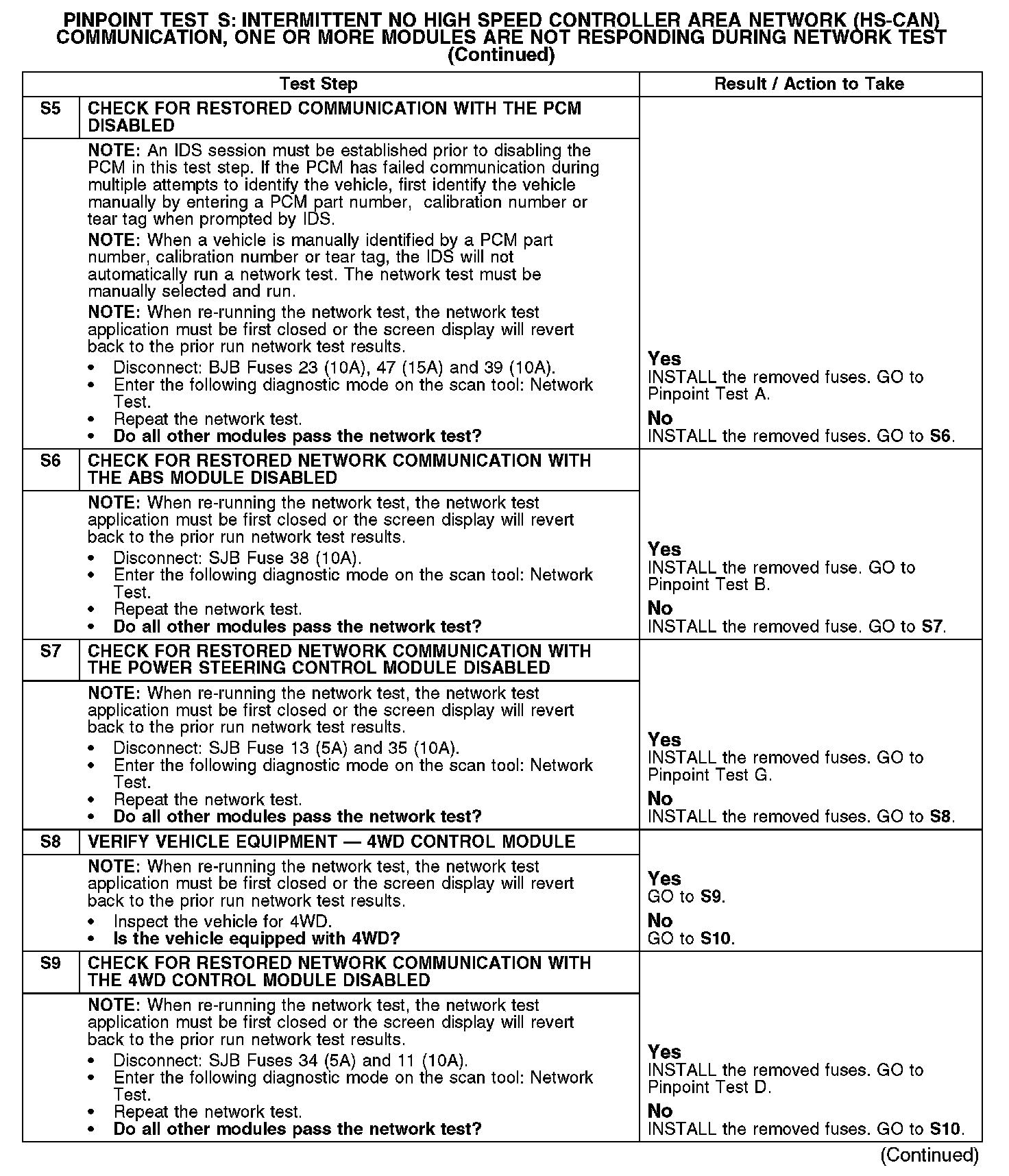

S5-S9:

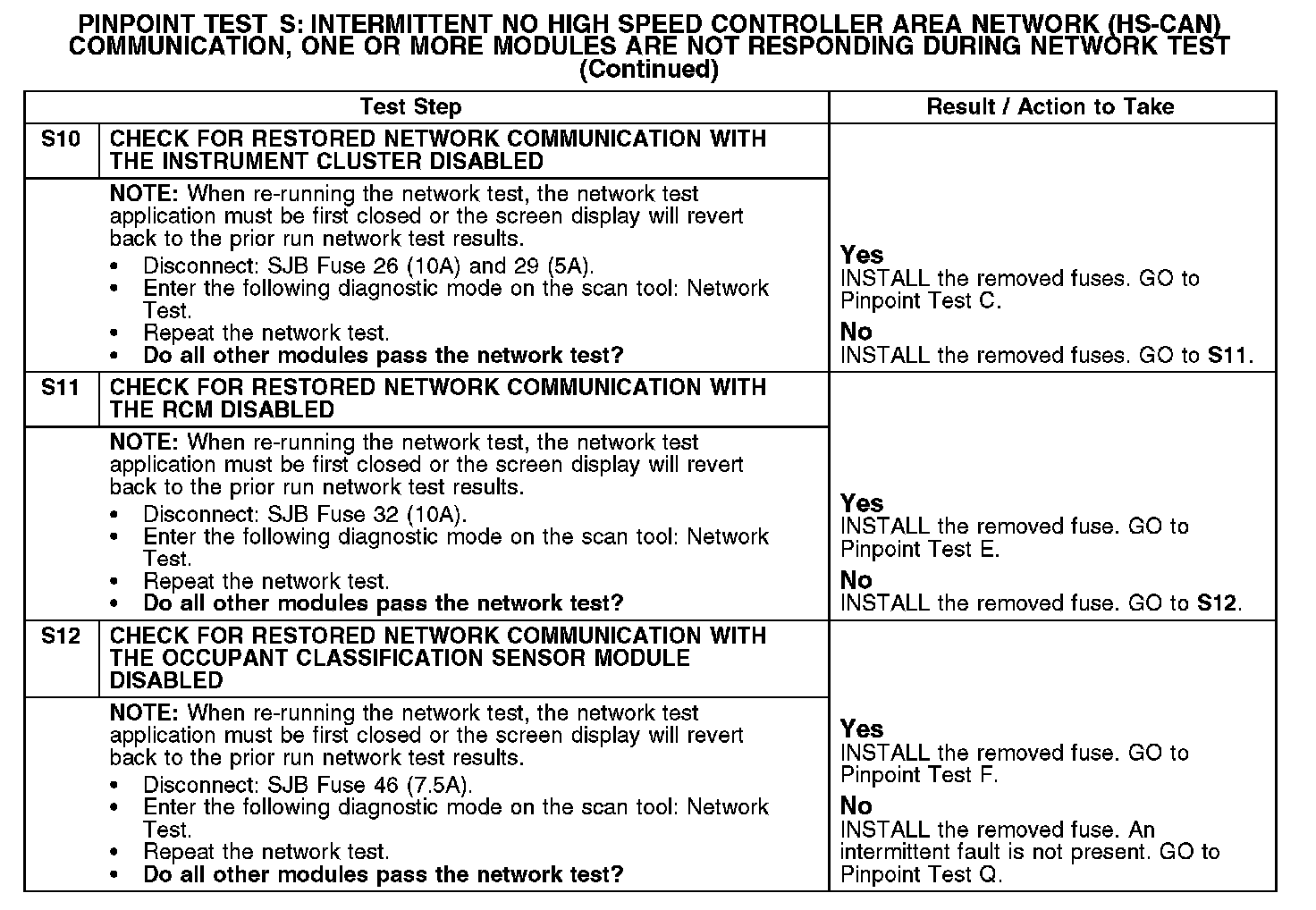

S10-S12:
