Test P: The Parking, Rear Or License Plate Lamps Are On Continuously
PINPOINT TEST P: THE PARKING, REAR OR LICENSE PLATE LAMPS ARE ON CONTINUOUSLYNormal Operation
The SJB monitors the parking lamp request input from the headlamp switch through circuit CLS34 (GY). The SJB provides a ground for the parking lamp relay coil (integral to the SJB) when a request for the parking lamps is received. When the parking lamp relay is energized, voltage is routed through circuit CLS30 (VT) to the rear parking lamps and through circuit CLS30 (VT/WH) to the front parking lamps.
- DTC B1578 (Lamp Park Input Circuit Short to Ground) - is an on-demand DTC that sets when the SJB detects a short to ground in the parking lamps on input circuit.
This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Headlamp switch
- SJB

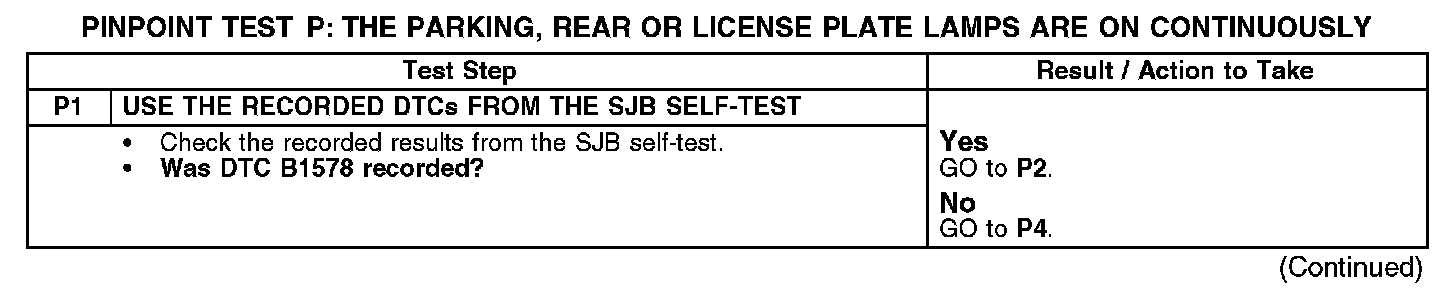

P1:
P2-P6:
