Fog/Driving Lamp: Service and Repair

FOG LAMP

Taurus:

Sable:

Taurus X:

Removal and Installation

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the fog lamp electrical connector.

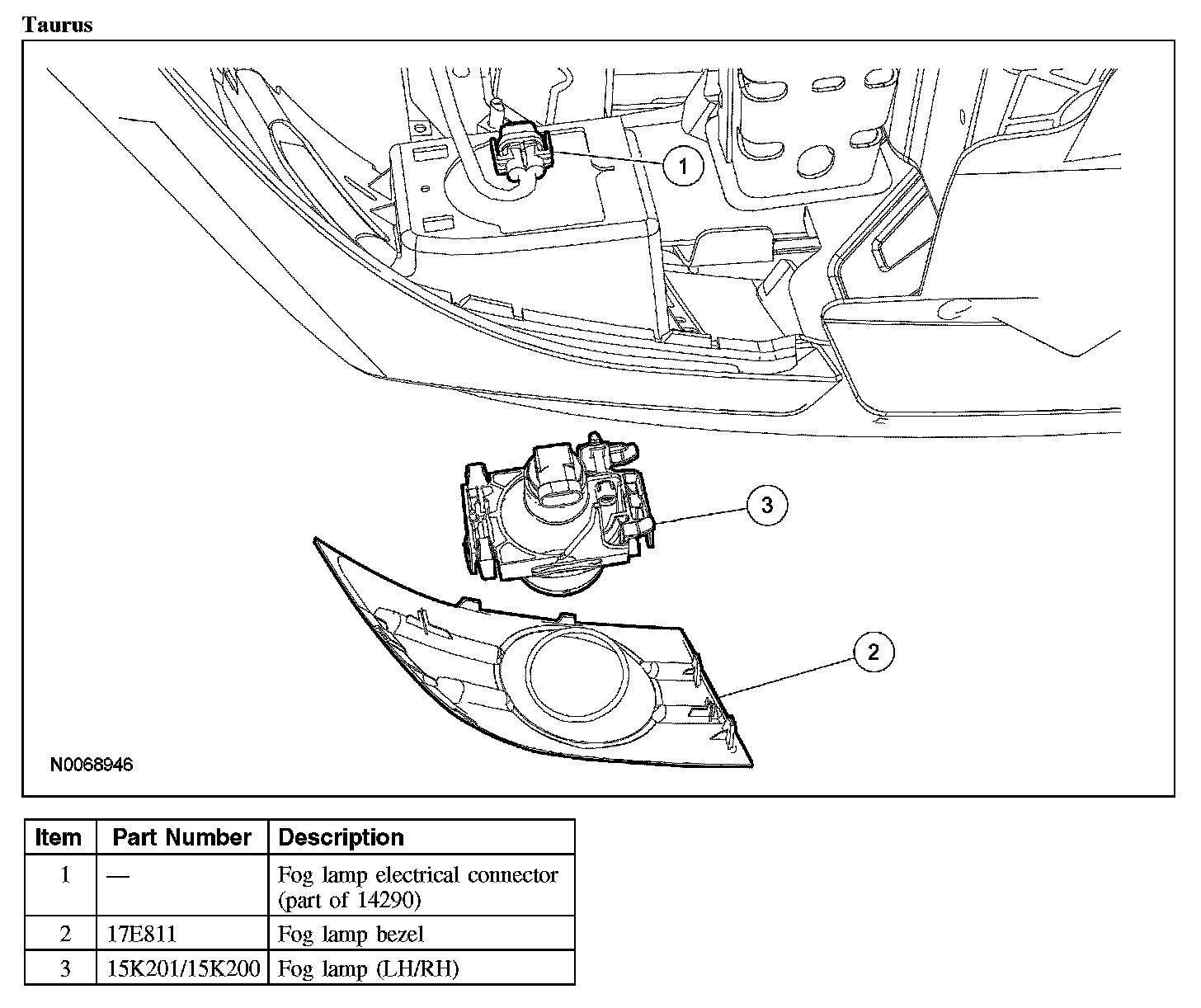

Taurus
3. Release the tabs and remove the fog lamp bezel.

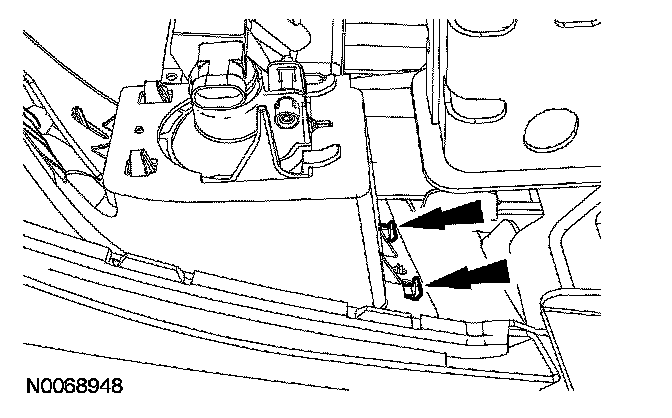

4. Release the 2 tabs and remove the fog lamp.

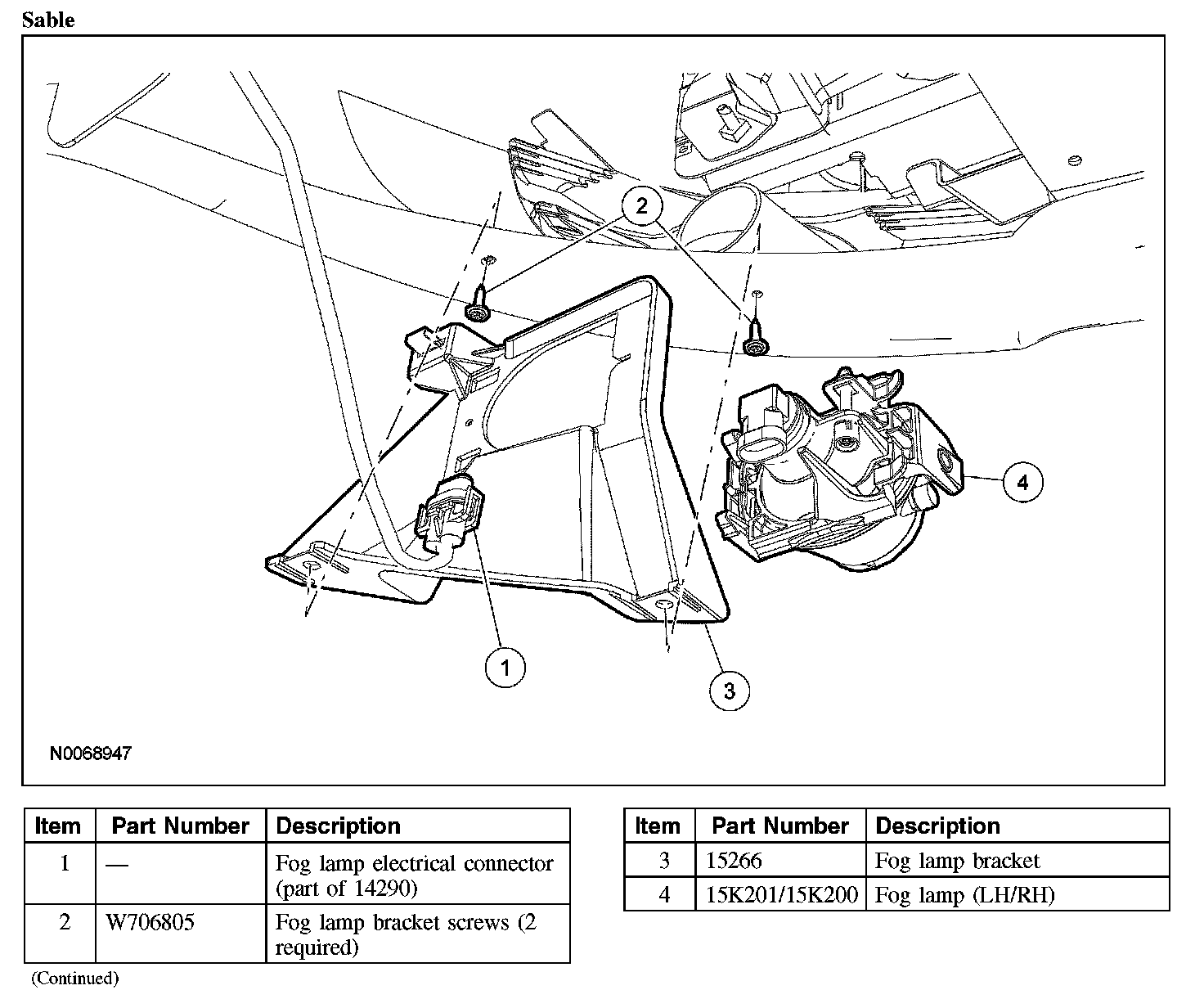

Sable
5. Remove the 2 screws and the fog lamp bracket assembly.

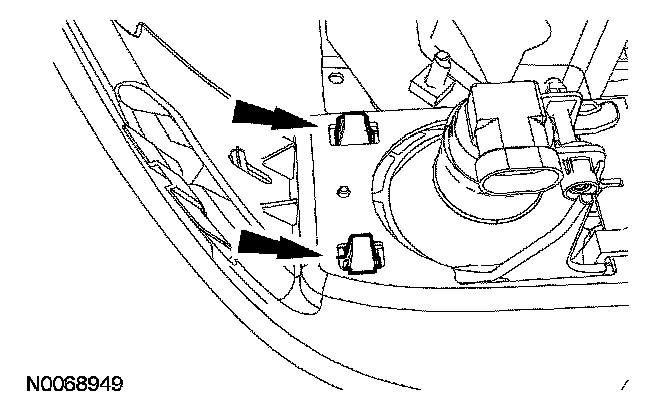

6. NOTE: Taurus shown, Sable similar.

Release the 2 tabs and remove the fog lamp.

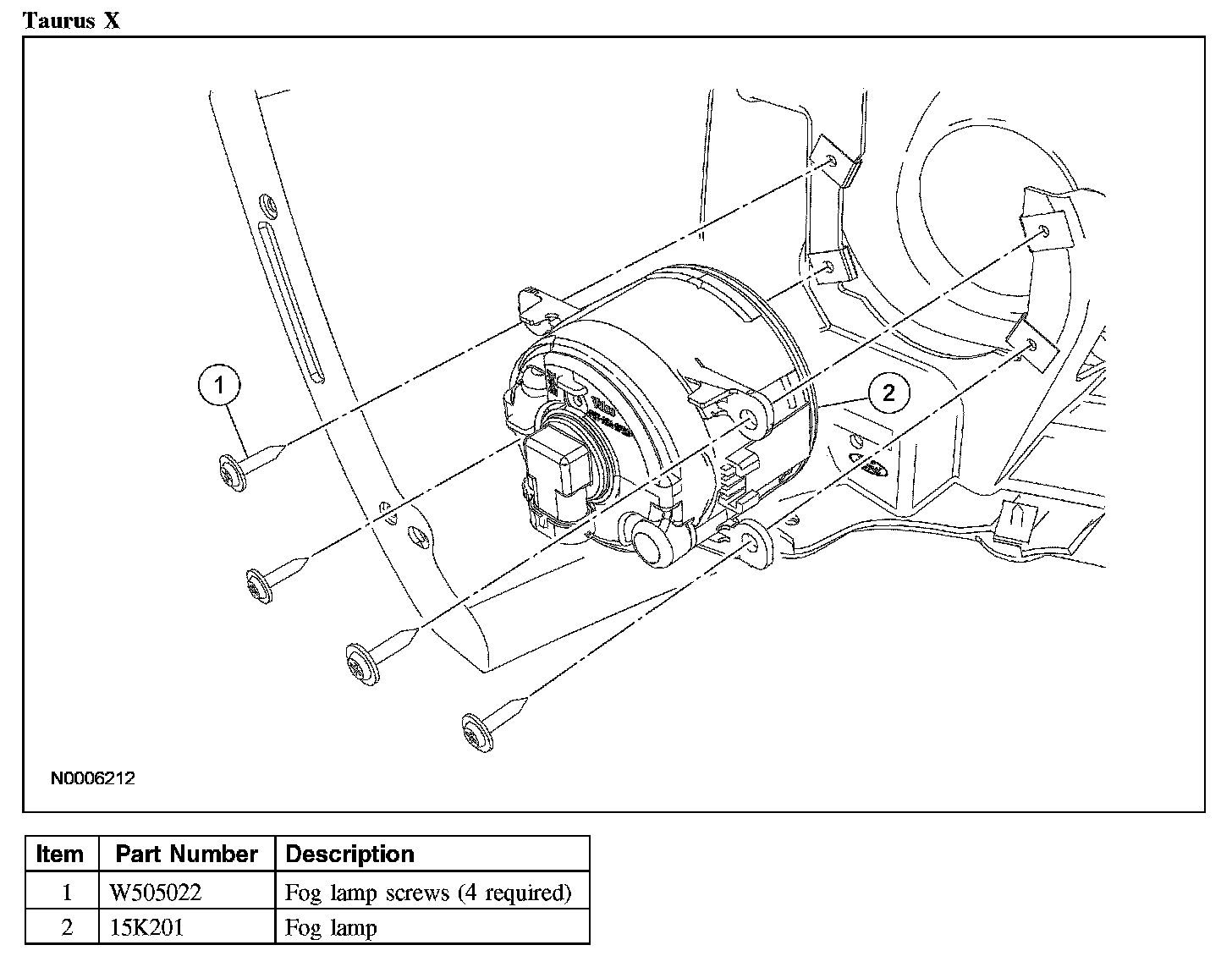

Taurus X
7. Remove the 4 screws and the fog lamp.

All vehicles
8. To install, reverse the removal procedure.
