Test L: The Battery Saver Does Not Deactivate After Time-Out

PINPOINT TEST L: THE BATTERY SAVER DOES NOT DEACTIVATE AFTER TIME-OUT

Normal Operation
The smart junction box (SJB) provides a battery saver function. The battery saver function provides automatic shutoff of the interior lamps (courtesy lamps and demand lamps) after 10 minutes has elapsed in order to save battery power.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- SJB

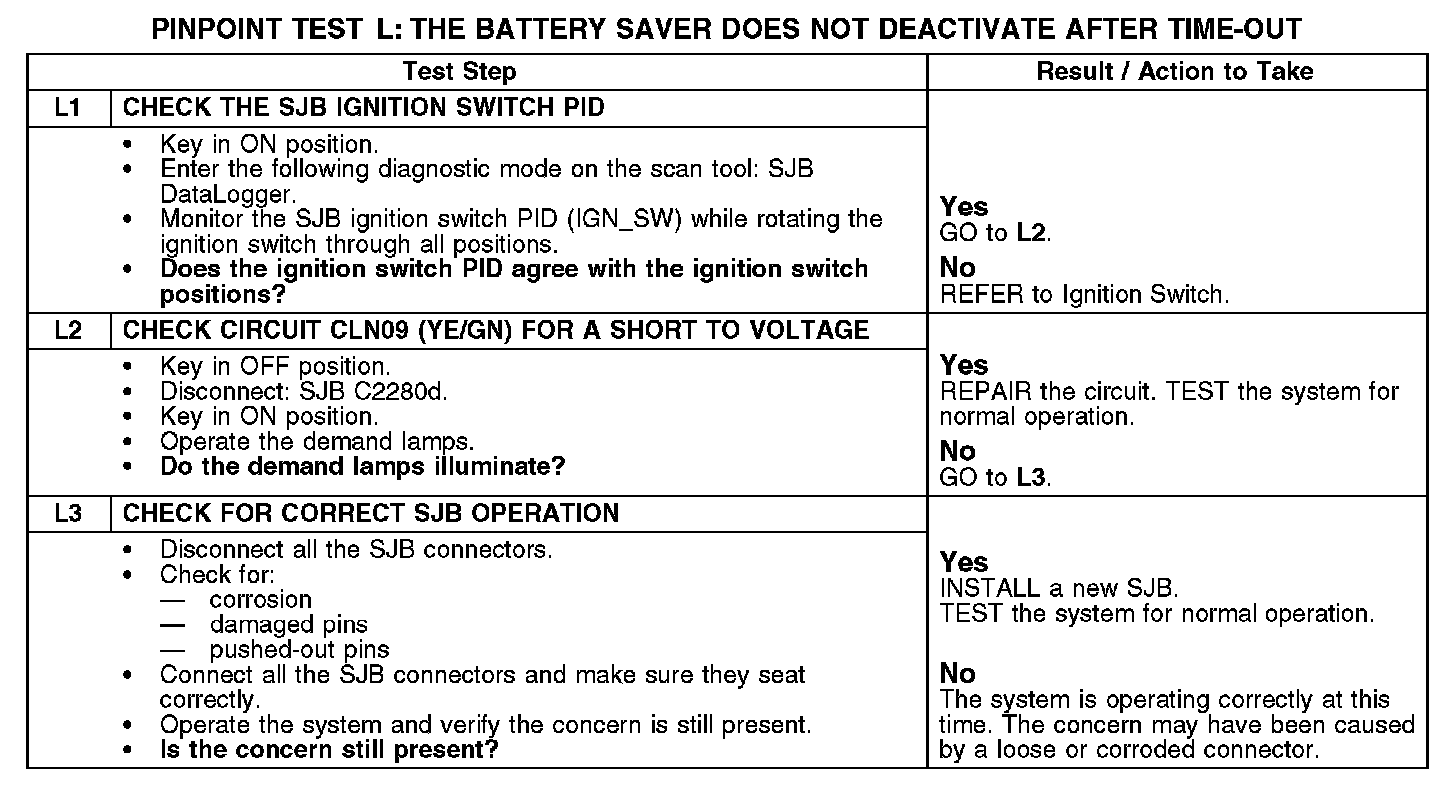

L1-L3:
