Test J: An Individual Demand Lamp Is Inoperative

PINPOINT TEST J: AN INDIVIDUAL DEMAND LAMP IS INOPERATIVE

Normal Operation
The smart junction box (SJB) supplies voltage to the demand lamps on circuit CLN09 (YE/GN). The demand lamps are grounded through circuits GD133 (BK) and GD147 (BK/VT).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Interior lamp

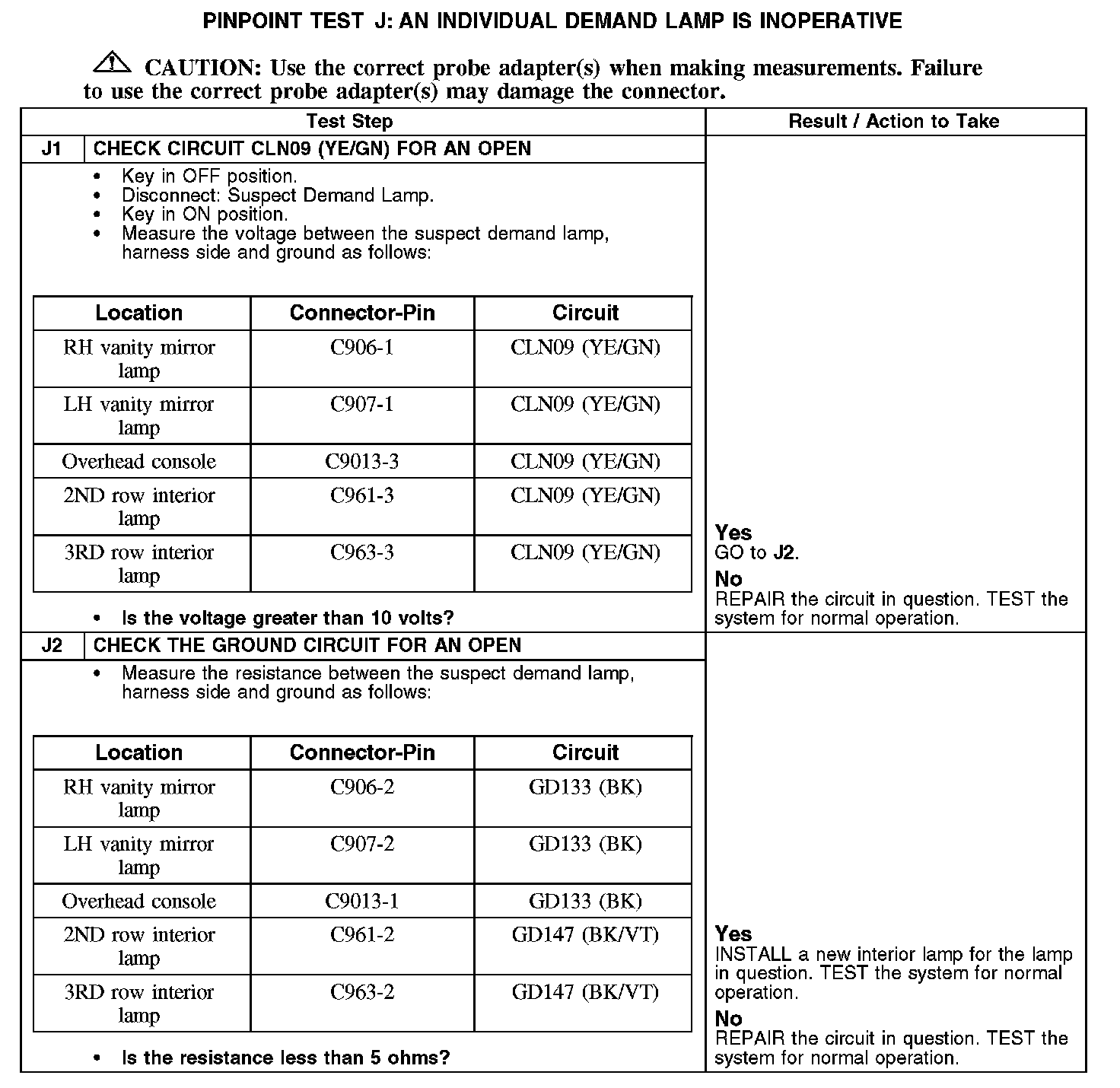

J1-J2:
