Tests AA: The Tire Pressure Monitoring System (TPMS) Warning Indicator Is Never/Always On

PINPOINT TEST AA: THE TIRE PRESSURE MONITORING SYSTEM (TPMS) WARNING INDICATOR IS NEVER/ALWAYS ON

Normal Operation
The instrument cluster receives the TPMS messages from the SJB over the medium speed controller area network (MS-CAN) communication bus. If the SJB determines that the tire pressure has exceeded the low tire pressure limits, a message is sent to the instrument cluster to turn the TPMS warning indicator on. If a TPMS fault condition exists, the SJB sends a message to the instrument cluster to flash the TPMS warning indicator. If the TPMS status message is missing for less than 5 seconds, the instrument cluster defaults the TPMS warning indicator to the last setting (on or off), based upon the last known good message received. If the TPMS status message is missing for more than 5 seconds, the instrument cluster sets DTC U0140 and flashes the TPMS indicator for approximately 75 seconds then turns on the indicator steady.

NOTE: If DTC U0140 is set in the SJB, other symptoms may also be present such as high beam indicator, RH/LH turn indicators, instrument panel backlighting, and door ajar indication.

This pinpoint test is intended to diagnose the following:
- TPMS concern
- SJB
- Instrument cluster

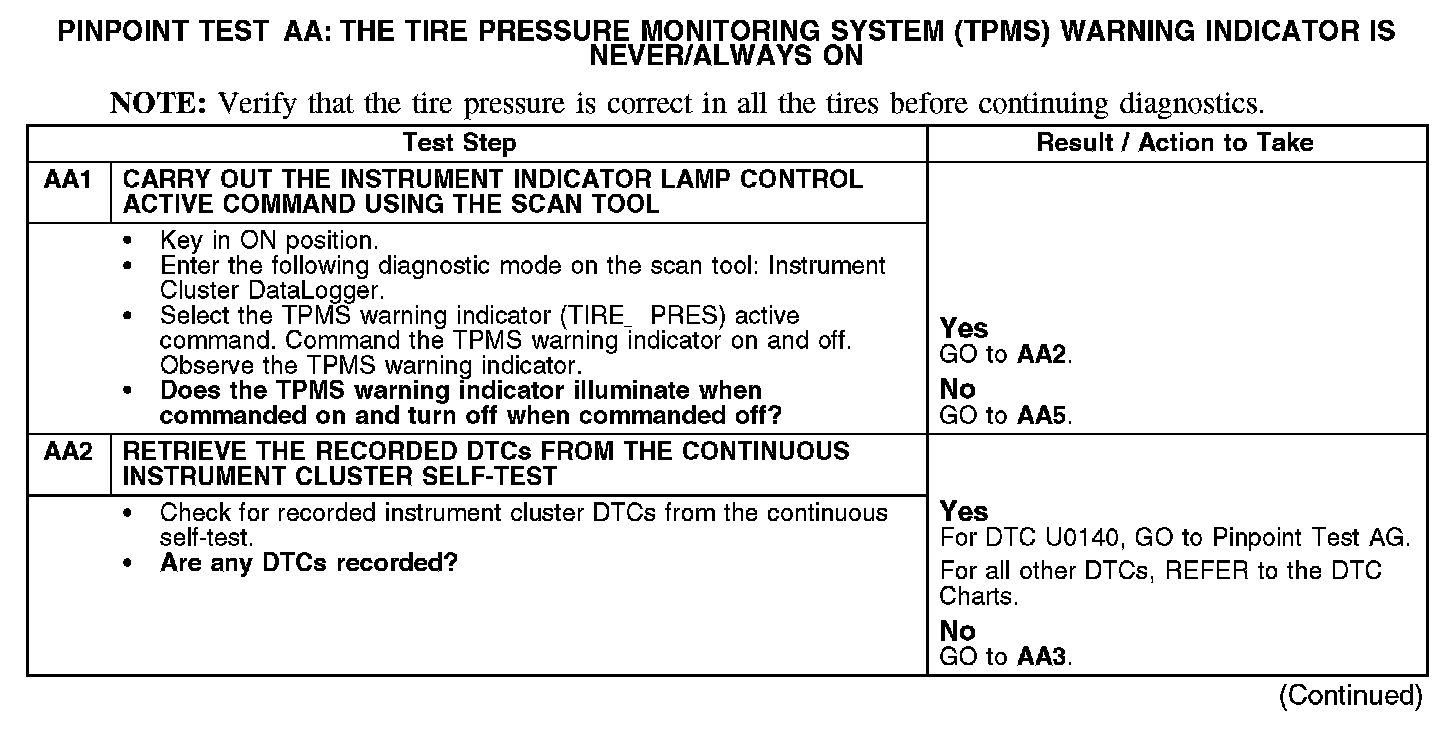

AA1-AA2:

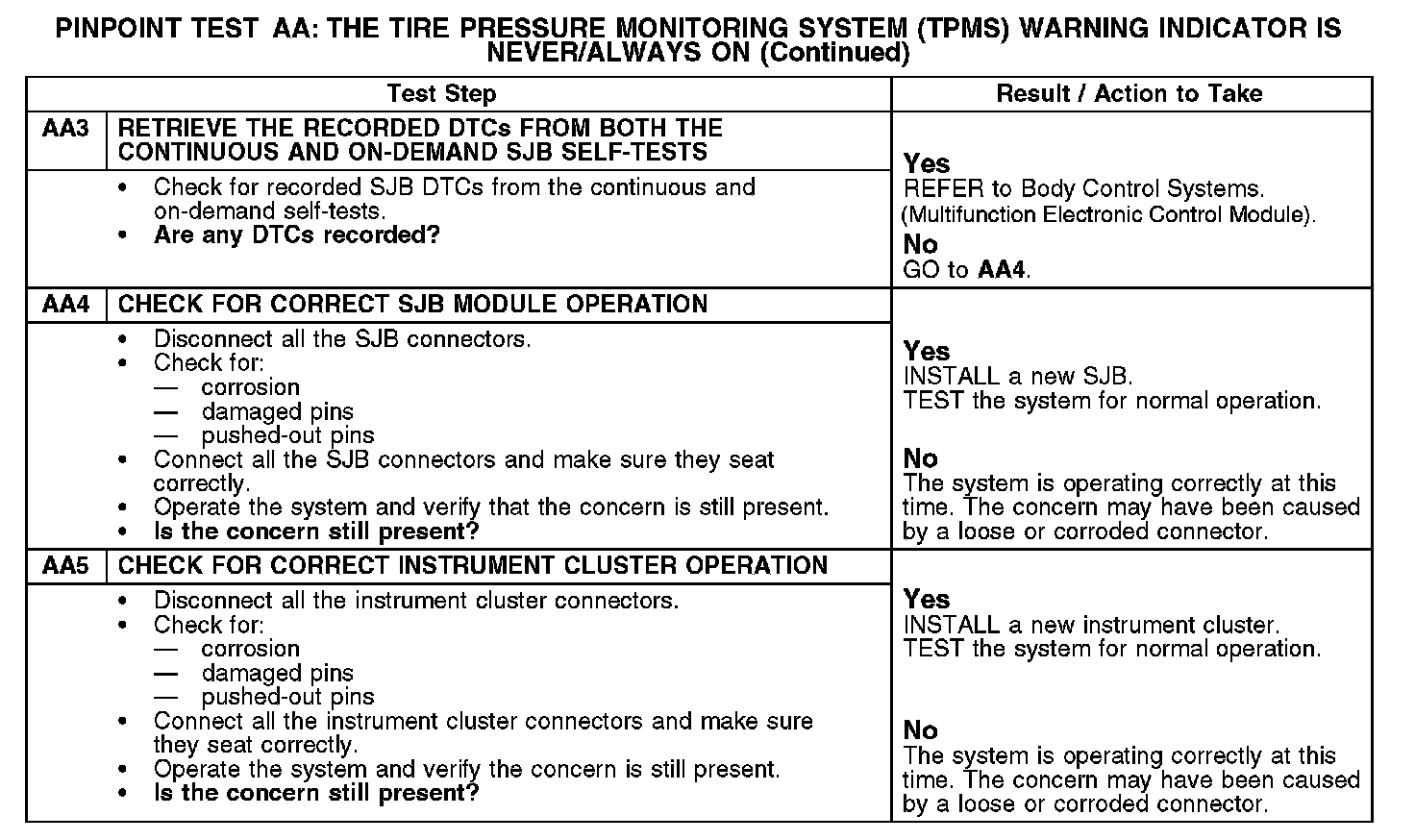

AA3-AA5:
