Instrument Cluster (IC) Lens




INSTRUMENT CLUSTER (IC) LENS

Removal and Installation
1. Remove the instrument cluster. Instrument Cluster (IC)

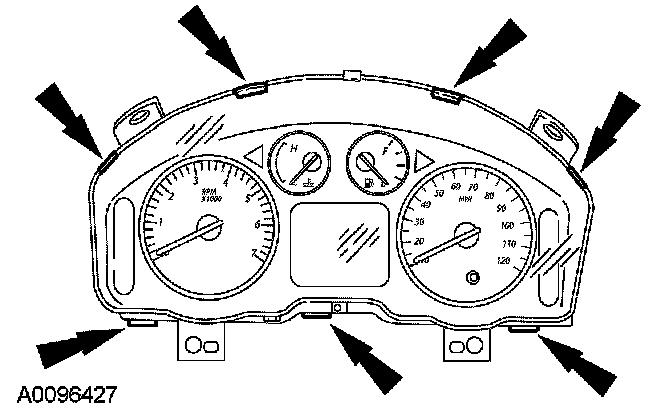

2. Release the retaining tabs and remove the instrument cluster lens.







3. To install, reverse the removal procedure.
