Instrument Cluster (IC)

INSTRUMENT CLUSTER (IC)

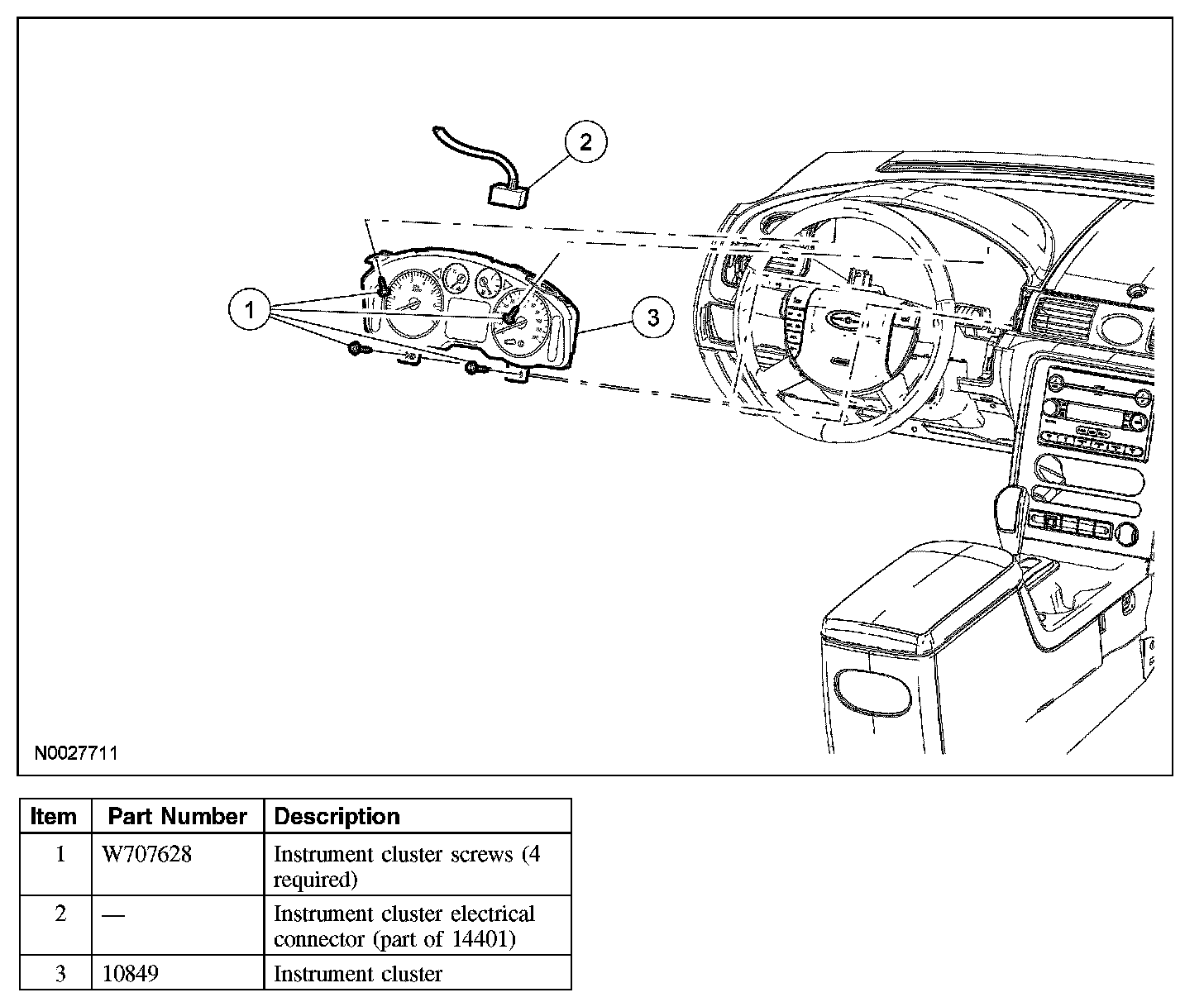

Removal
1. If installing a new instrument cluster, upload the module configuration information to the scan tool. Programming and Relearning
2. Remove the instrument cluster finish panel. Instrument Cluster Finish Panel
3. Remove the 4 screws and the instrument cluster.
- Disconnect the electrical connector.

Installation
1. Position the instrument cluster in the instrument panel, connect the electrical connector and install the 4 screws.
2. Install the instrument cluster finish panel. Instrument Cluster Finish Panel
3. If installing a new instrument cluster, download the instrument cluster configuration information from the scan tool into the new instrument cluster. Programming and Relearning

4. NOTE: If a new instrument cluster is installed, the instrument cluster and the PCM require a parameter reset to allow the instrument cluster and the PCM to recognize each other. Failure to carry out the parameter reset to the instrument cluster and the PCM may result in a no start condition.

If installing a new instrument cluster, carry out the parameter reset procedure. Programming and Relearning

5. NOTE: If equipped, the vehicles passive anti-theft system (PATS) keys must be programmed to the new instrument cluster.

If installing a new instrument cluster, carry out the PATS key programming. Programming and Relearning
