Symptom Chart - Climate Control Systems

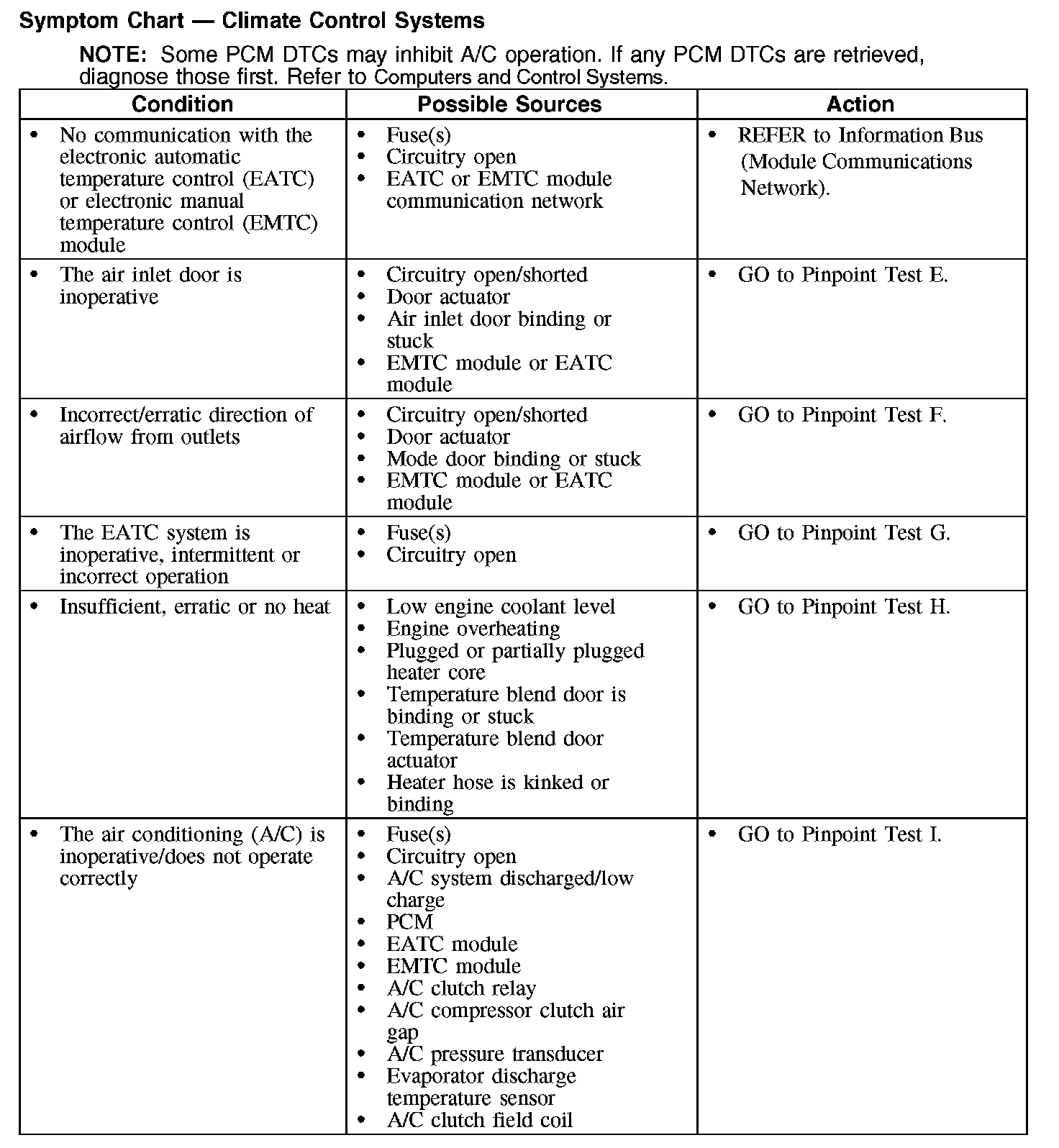

Symptom Chart - Climate Control Systems (Part 1):

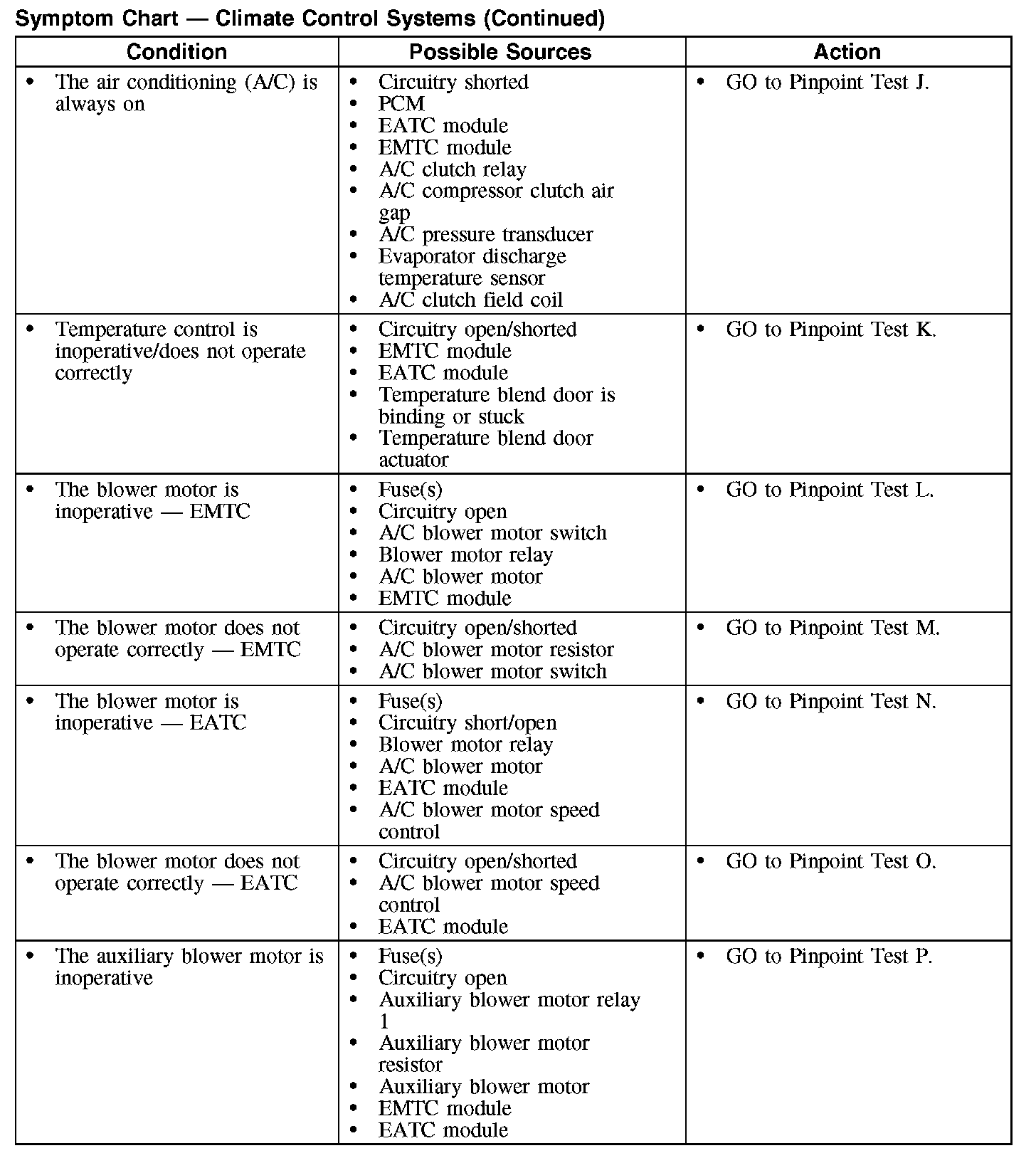

Symptom Chart - Climate Control Systems (Part 2):

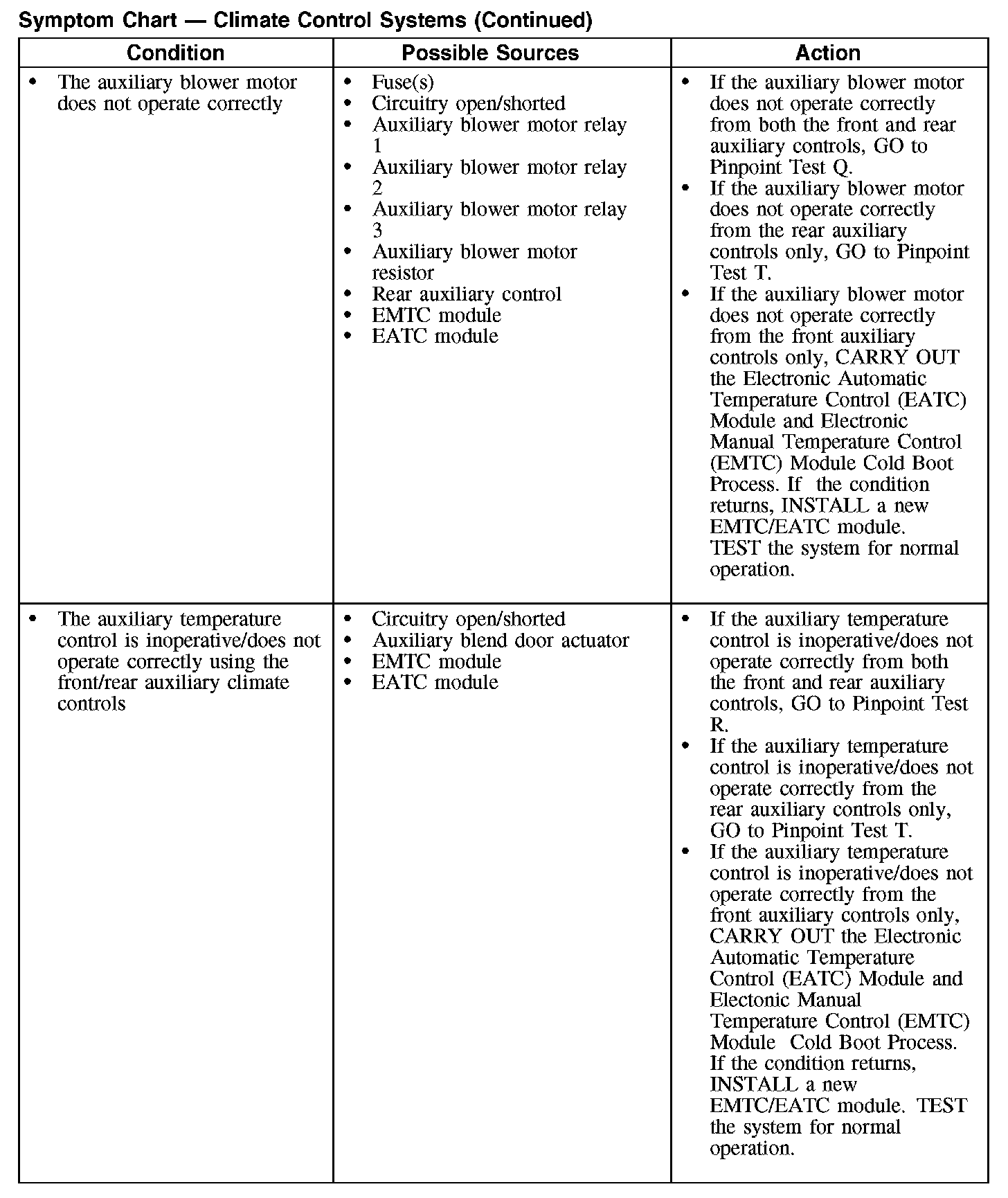

Symptom Chart - Climate Control Systems (Part 3):

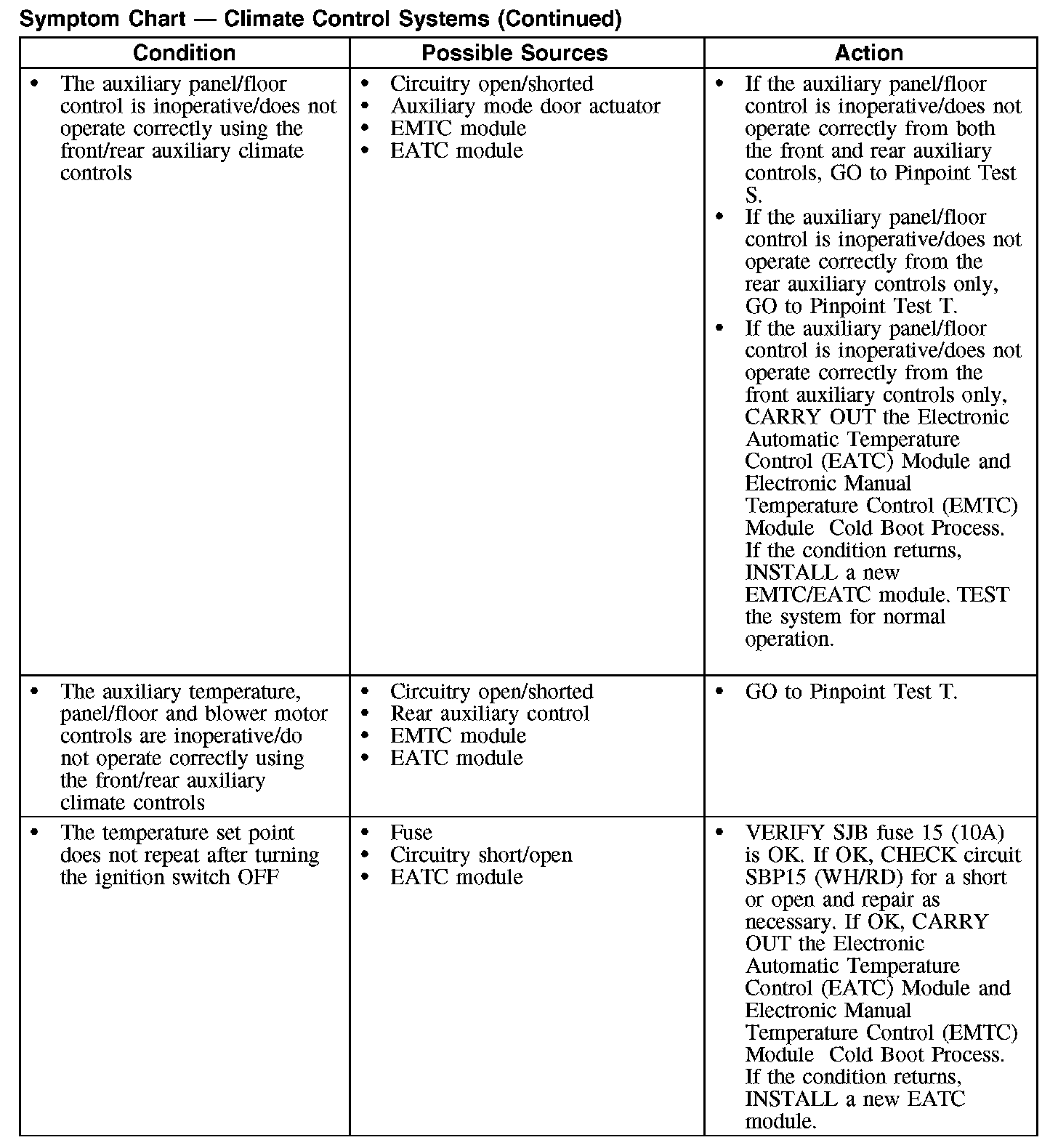

Symptom Chart - Climate Control Systems (Part 4):

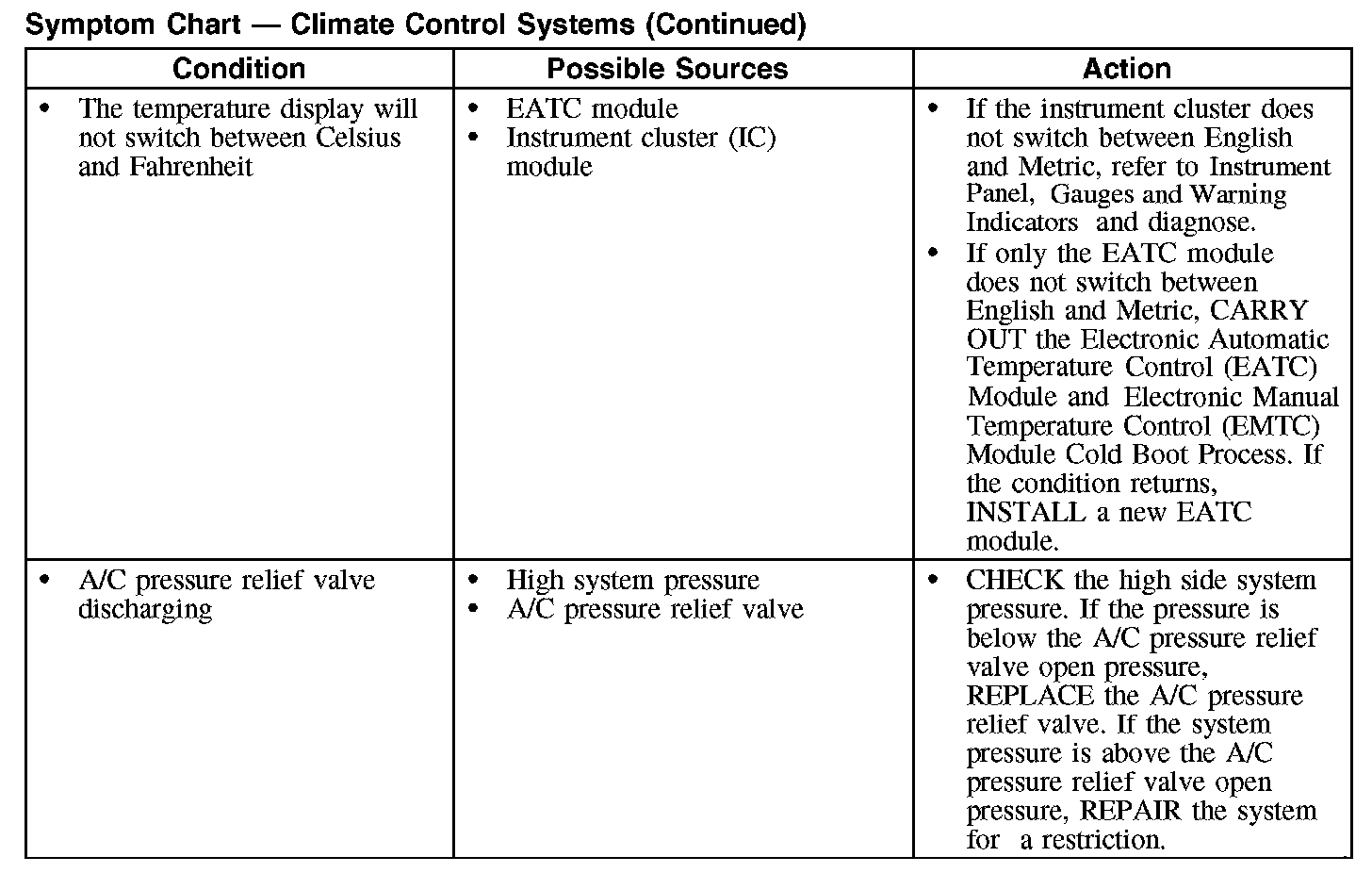

Symptom Chart - Climate Control Systems (Part 5):
