Compressor Clutch Coil: Service and Repair

CLUTCH AND CLUTCH FIELD COIL

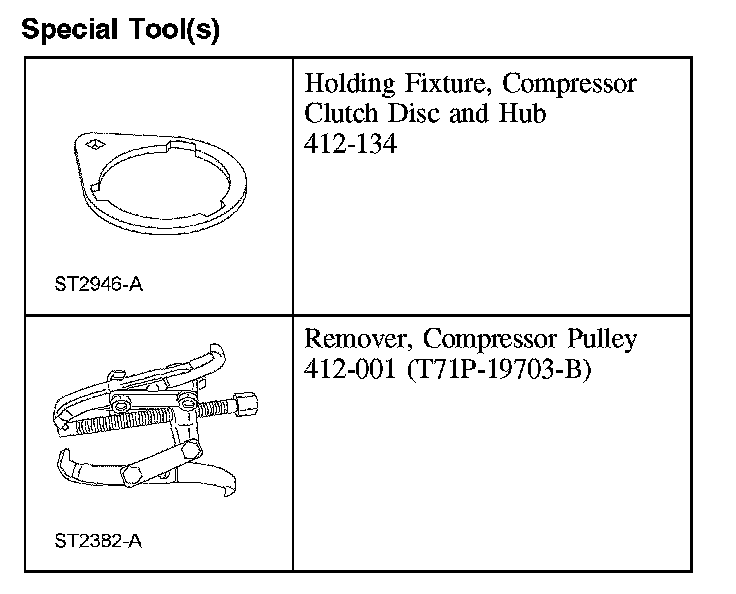

Special Tool(s)

Special Tool(s):

Removal
1. Remove the A/C compressor.

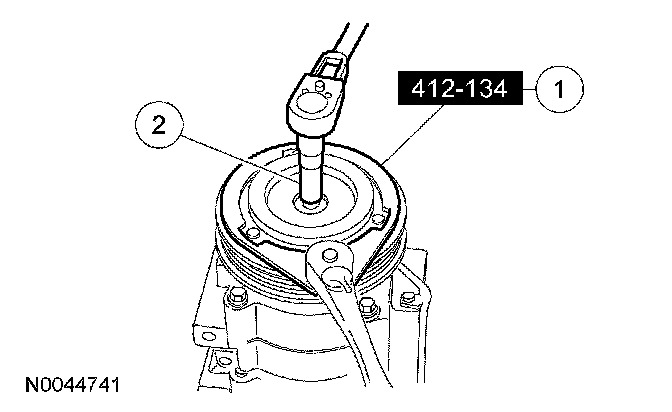

2. Remove the A/C clutch disc and hub bolt.
1 Using the special tool, hold the A/C clutch disc and hub.
2 Remove the A/C clutch disc and hub bolt.







3. Remove the A/C clutch disc and hub.
4. Remove the A/C clutch disc and hub spacer(s).
5. Remove the A/C compressor pulley snap ring.

6. CAUTION: Do not use air tools. Damage to the air conditioning (A/C) clutch pulley or A/C compressor may result.

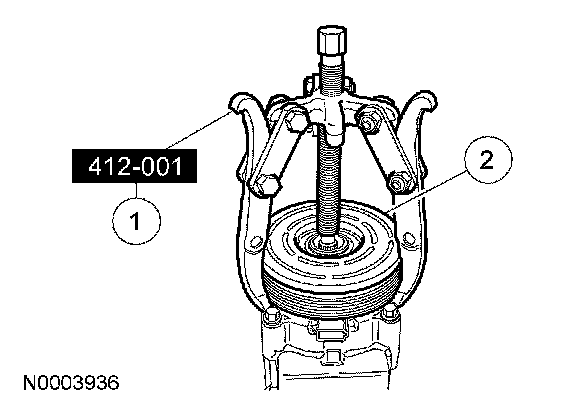

Remove the A/C compressor pulley.
1 Install the special tool.
2 Using the special tool, remove the A/C compressor pulley.







7. Remove the A/C clutch field coil snap ring.
8. Remove the A/C clutch field coil electrical connector bracket screw.
9. Remove the A/C clutch field coil.

Installation

NOTE: The A/C clutch components should be reused unless obvious signs of damage are found. If excessive grooving is found, a new A/C clutch disc and hub and a new A/C compressor pulley must be installed together. Otherwise, each component may be installed individually where needed.

1. Visually inspect the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil for damage.
- Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
- Inspect for excessive wear, including grooving in the A/C clutch disc and hub or A/C compressor pulley that is more than fingernail depth.
- Inspect for roughness in the A/C compressor pulley bearing.

2. Clean the A/C clutch field coil and pulley mounting surfaces.
3. Install the A/C clutch field coil.
4. Install the A/C clutch field coil snap ring with the bevel side up.
5. Install the A/C clutch field coil electrical connector bracket screw.

6. CAUTION: To prevent A/C compressor pulley damage, apply pressure to the inner bearing race only, or the inner and outer bearing races simultaneously.

NOTE: The A/C compressor pulley is a tight fit on the A/C compressor. It must be correctly aligned during installation.

Install the A/C compressor pulley.

7. Install the A/C compressor pulley snap ring with the bevel side out.
8. Place one nominal thickness A/C clutch disc and hub spacer inside the clutch hub spline opening.
9. Install the A/C clutch disc and hub.

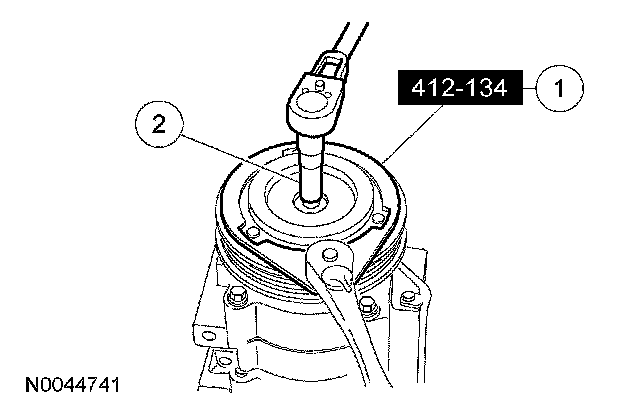

10. Using the special tool, install the A/C compressor clutch disc and hub bolt.
1 Hold the A/C clutch disc and hub with the special tool.
2 Tighten to 14 Nm (10 lb-ft).

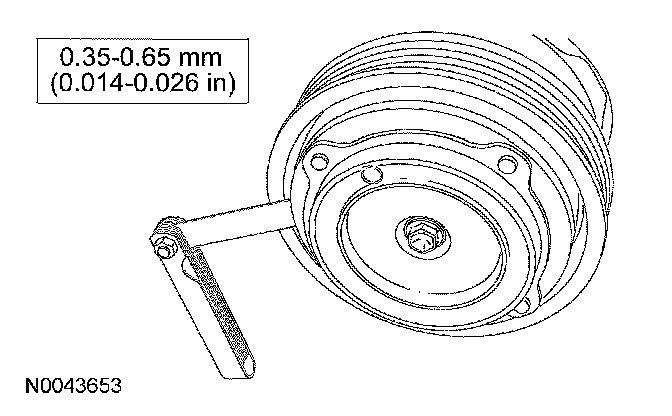

11. Measure and adjust the clutch air gap.
- Measure the clutch air gap at 3 equally spaced locations around the A/C compressor pulley and calculate the average.
- Adjust the clutch air gap by removing or adding A/C clutch disc and hub spacers.







12. Install the A/C compressor.
