Removal and Replacement

Exhaust System - Exploded View

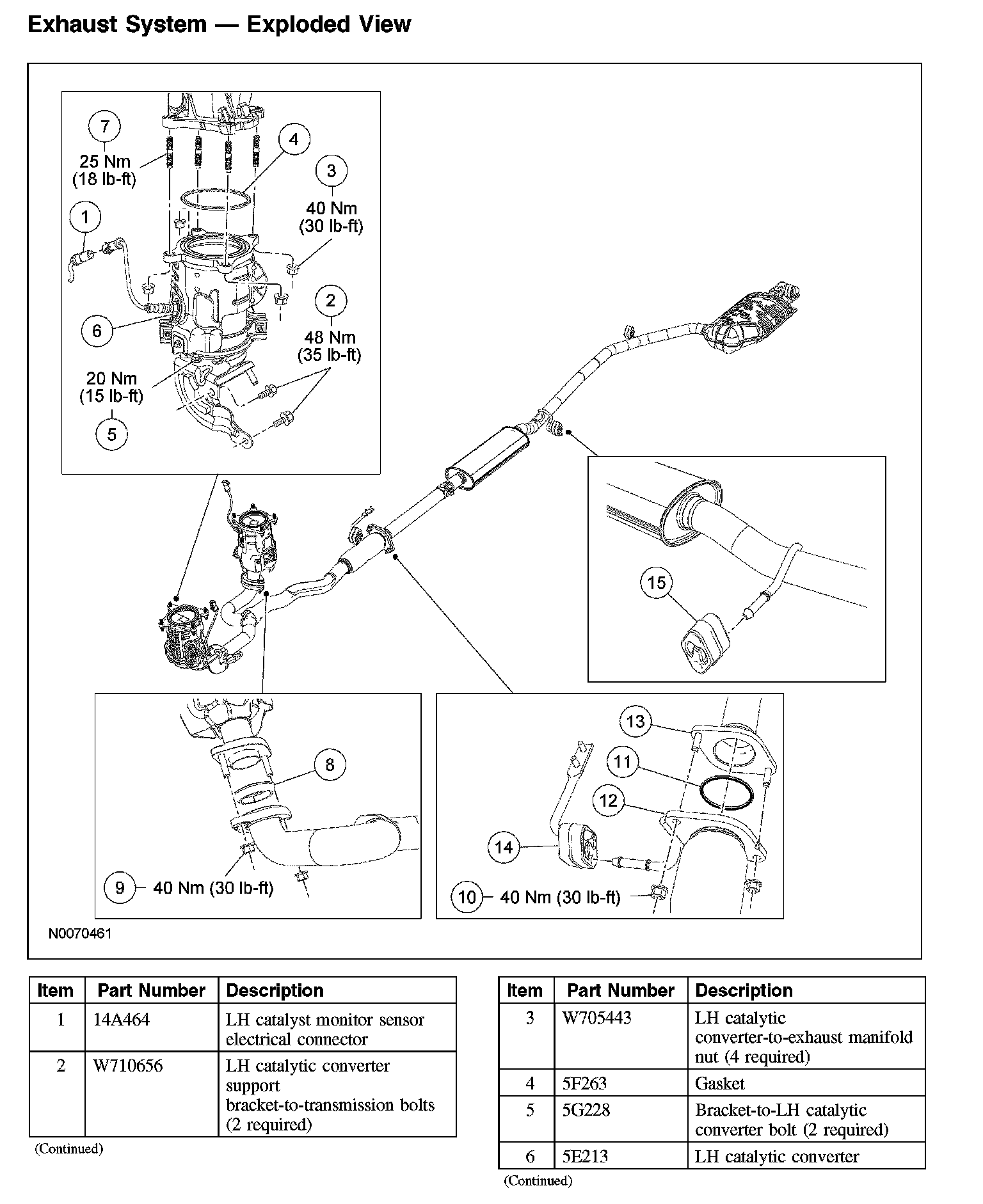

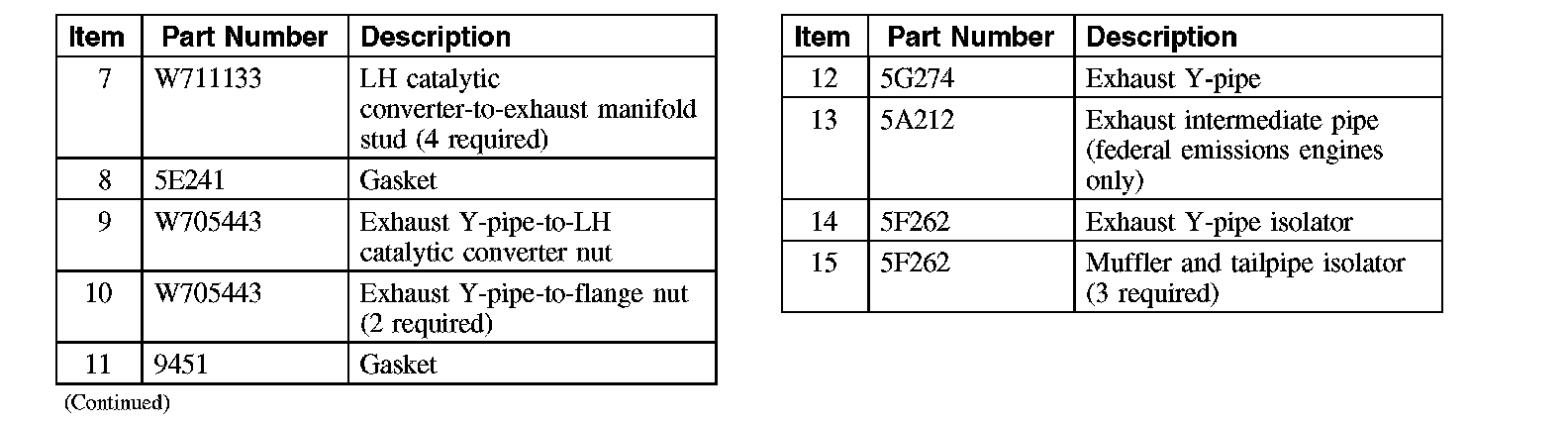

Exhaust System - Exploded View (Part 1):

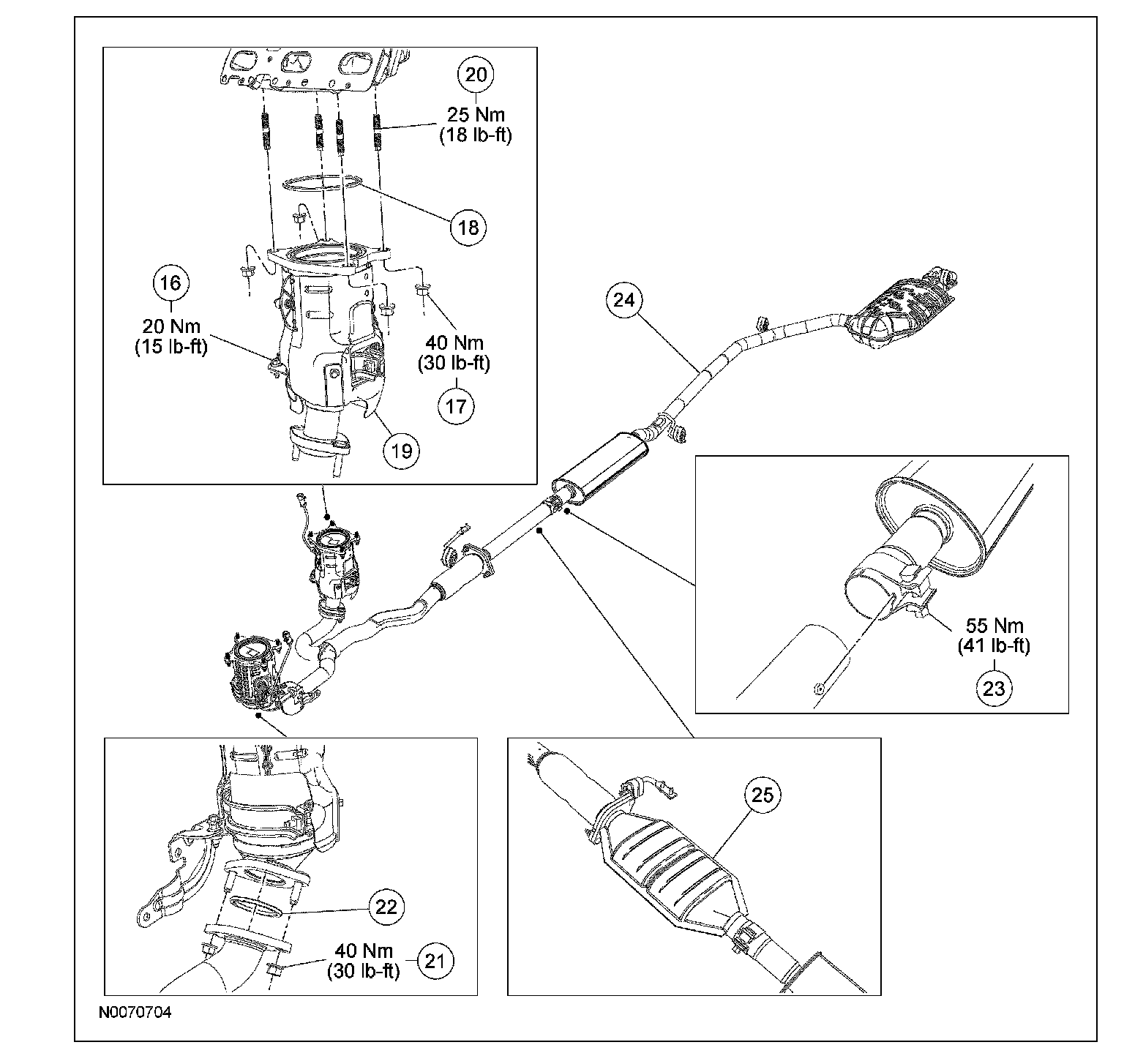

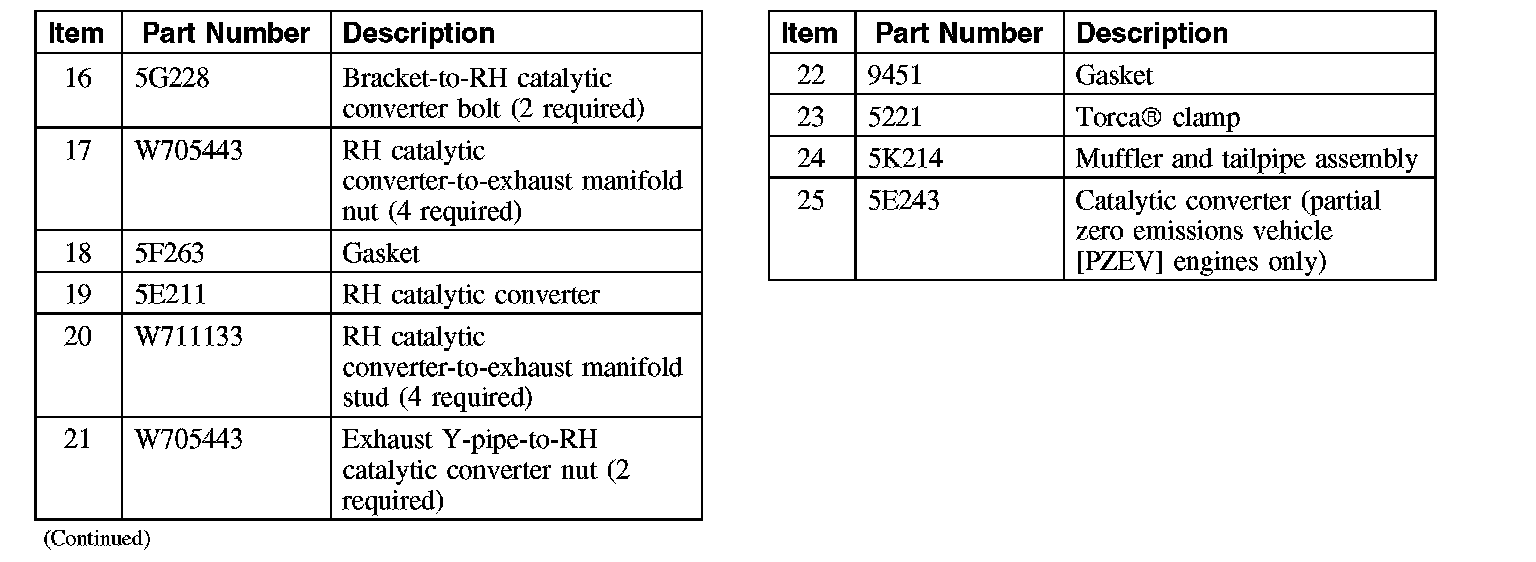

Exhaust System - Exploded View (Part 2):

Part 1:

Part 2:
