Crankshaft: Service and Repair

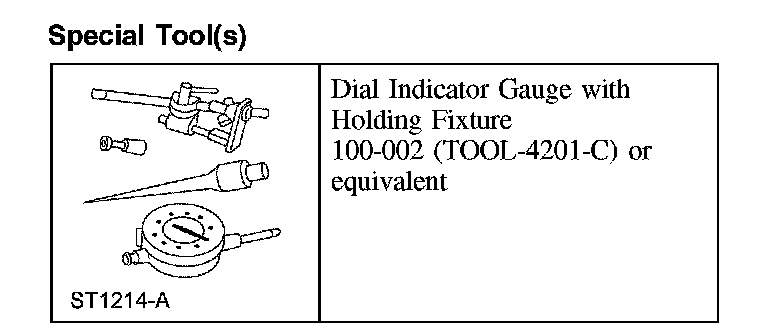

Crankshaft End PlaySpecial Tool(s)
NOTE: Refer to the appropriate specification.

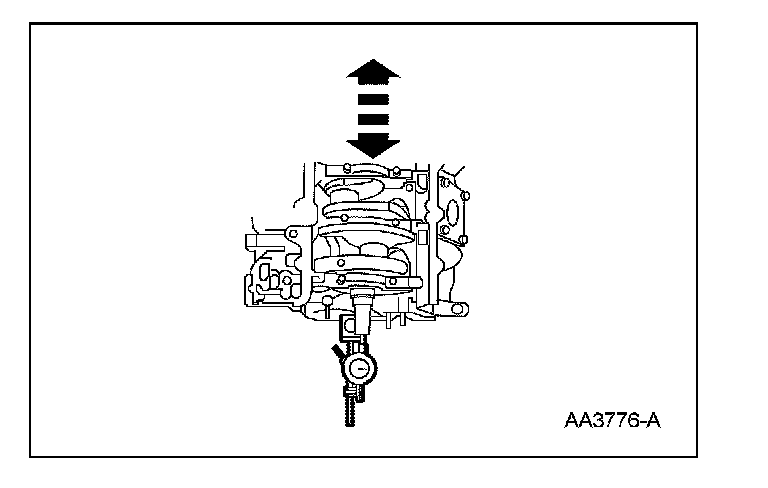

1. Using the Dial Indicator Gauge, measure the crankshaft end play.
2. Position the crankshaft to the rear of the cylinder block.
3. Zero the indicator.
4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
