Home >> Mercury >> 2008 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension

Suspension

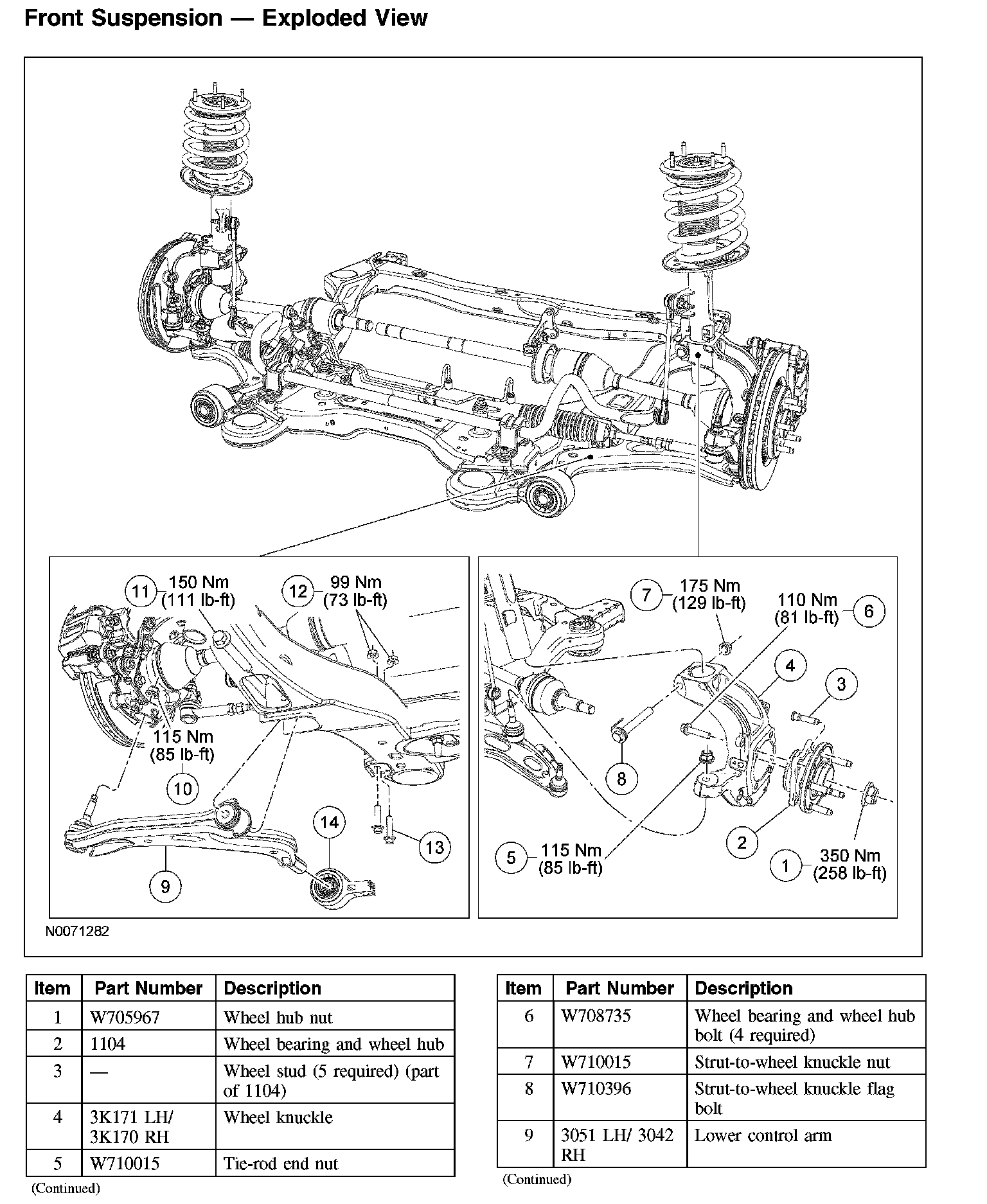

Front Suspension - Exploded View

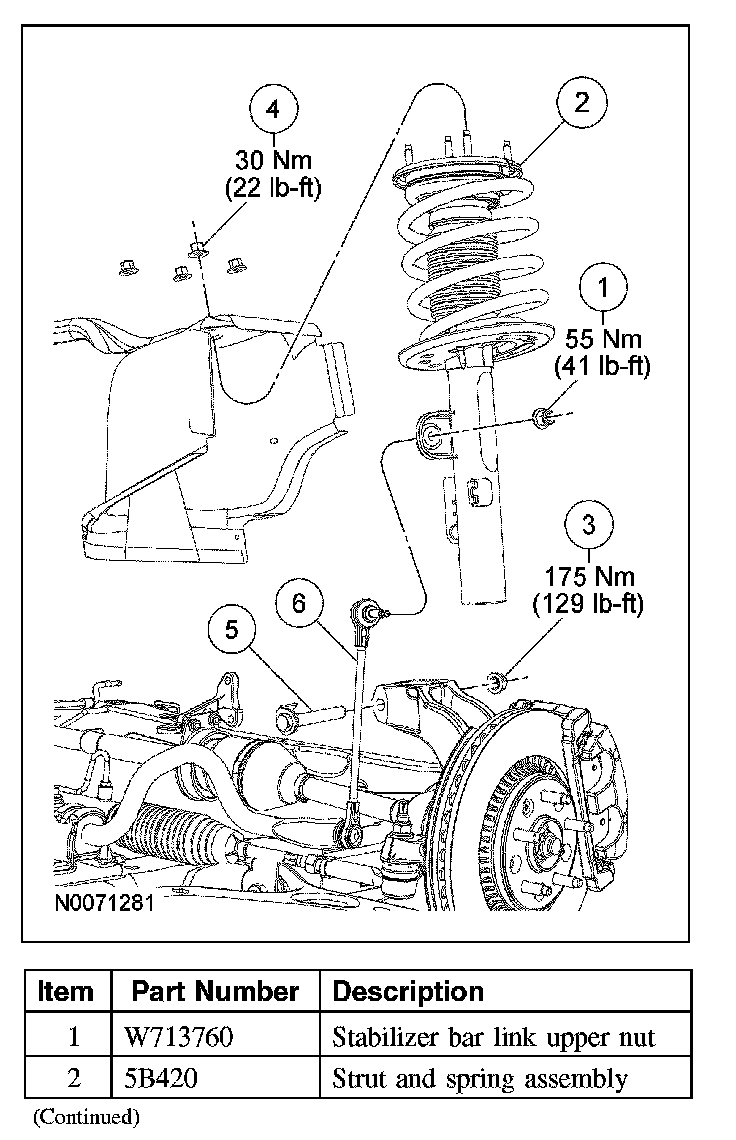

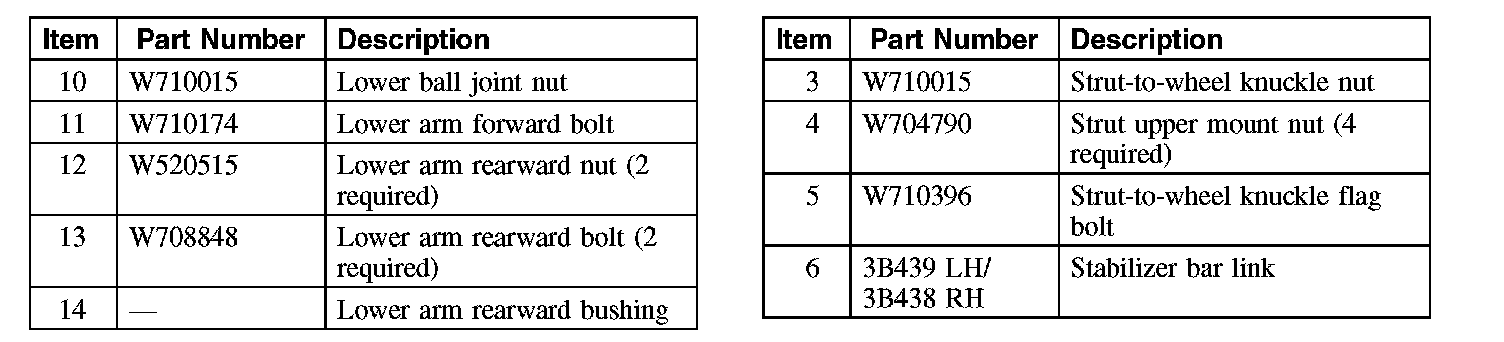

Front Suspension - Exploded View (Part 1):

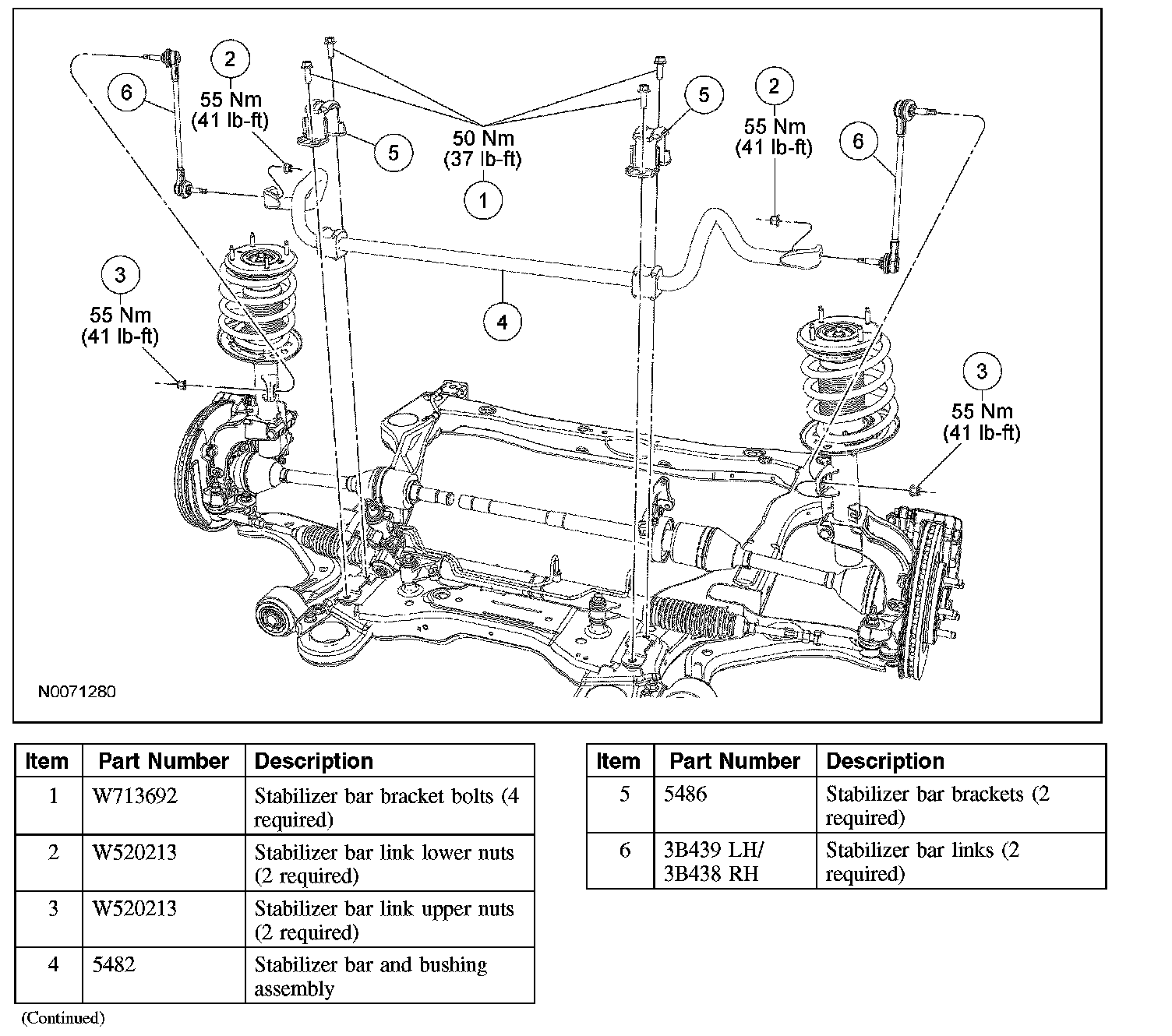

Front Suspension - Exploded View (Part 2):
