Home >> Mercury >> 2008 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 12 (Charging System)

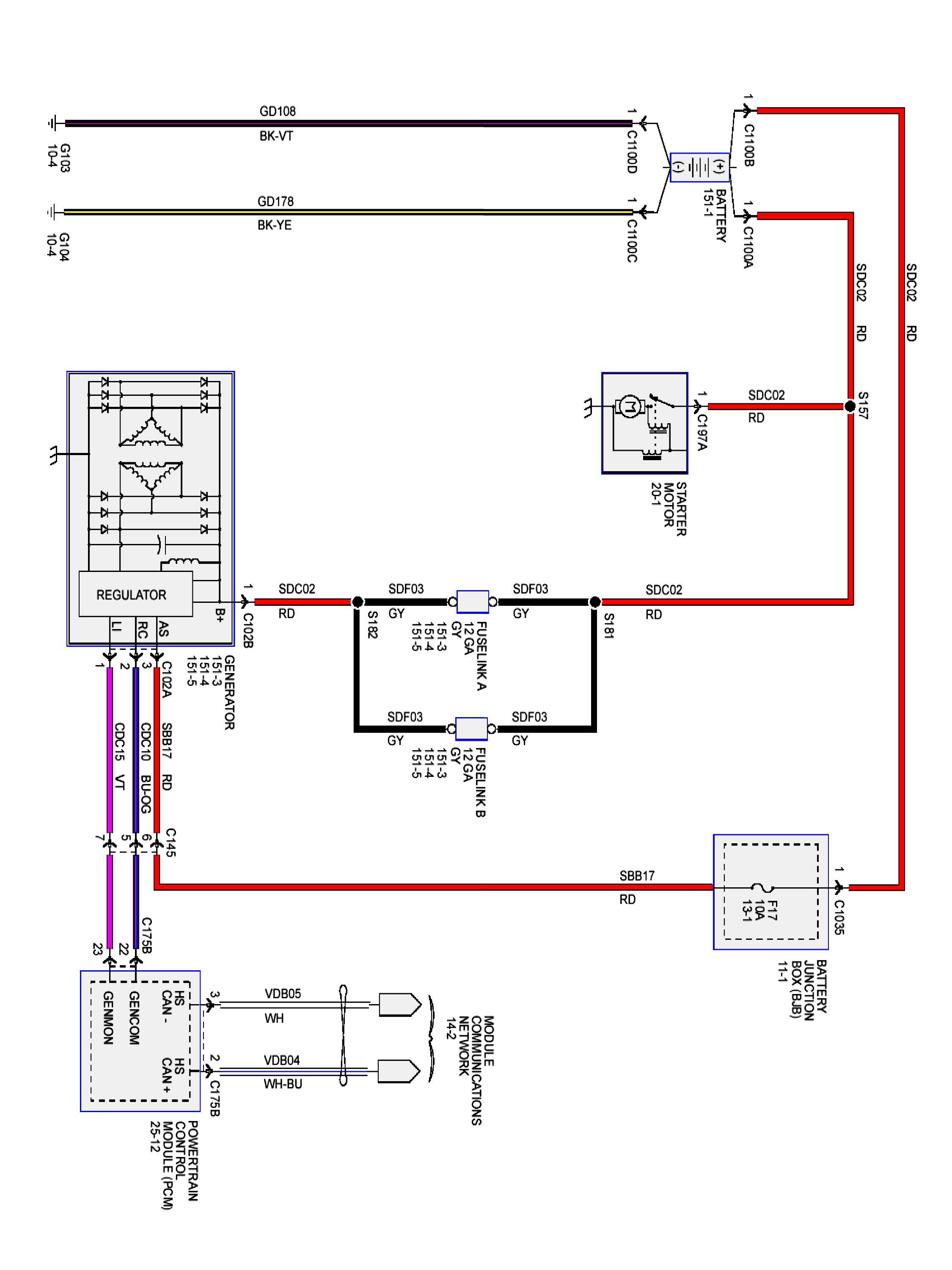

Diagram Set 12 (Charging System)

12-1:
