Inspection and Verification - Adjustable Pedals Without Memory Feature

Inspection and Verification - Adjustable Pedals Without Memory Feature
1. Verify the customer concern by operating the adjustable pedals.
2. Visually inspect for obvious signs of mechanical or electrical damage. Refer to the following chart:

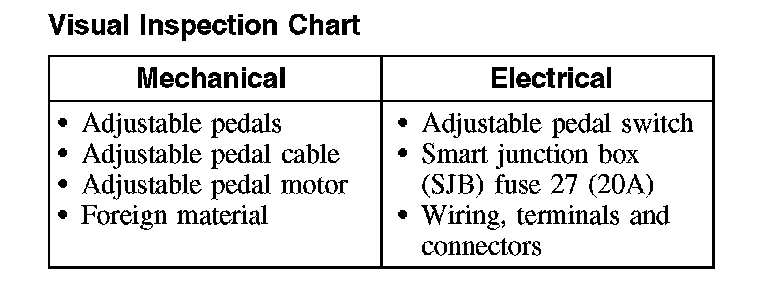

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, GO to Symptom Chart - Adjustable Pedals Without Memory Feature. Symptom Chart - Adjustable Pedals Without Memory Feature
