Home >> Mercury >> 2008 >> Sable FWD V6-3.5L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> ABS Module DTC Chart

ABS Module DTC Chart

ABS Module DTC Chart

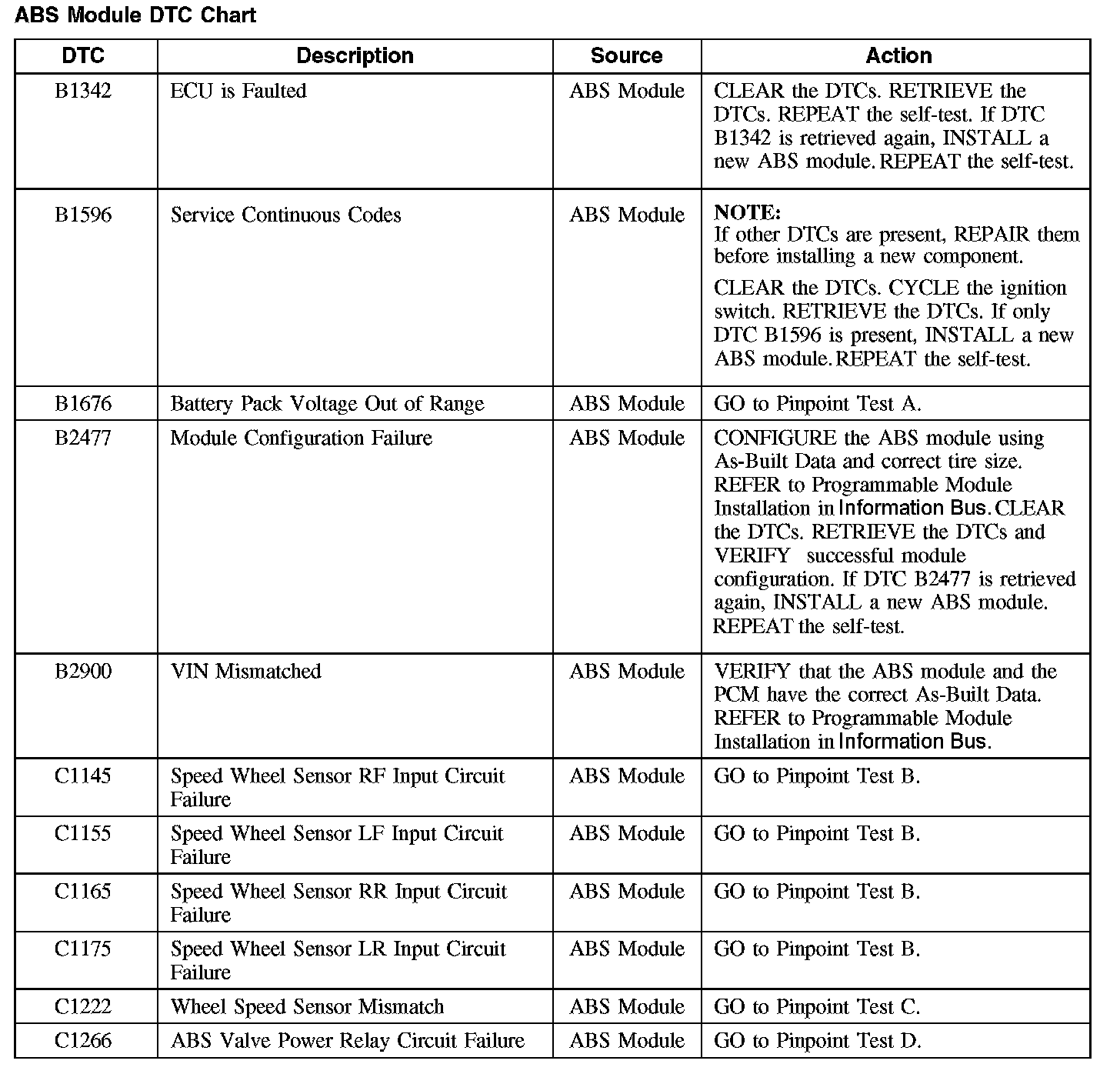

B1342-B2900 / C1145-C1266:

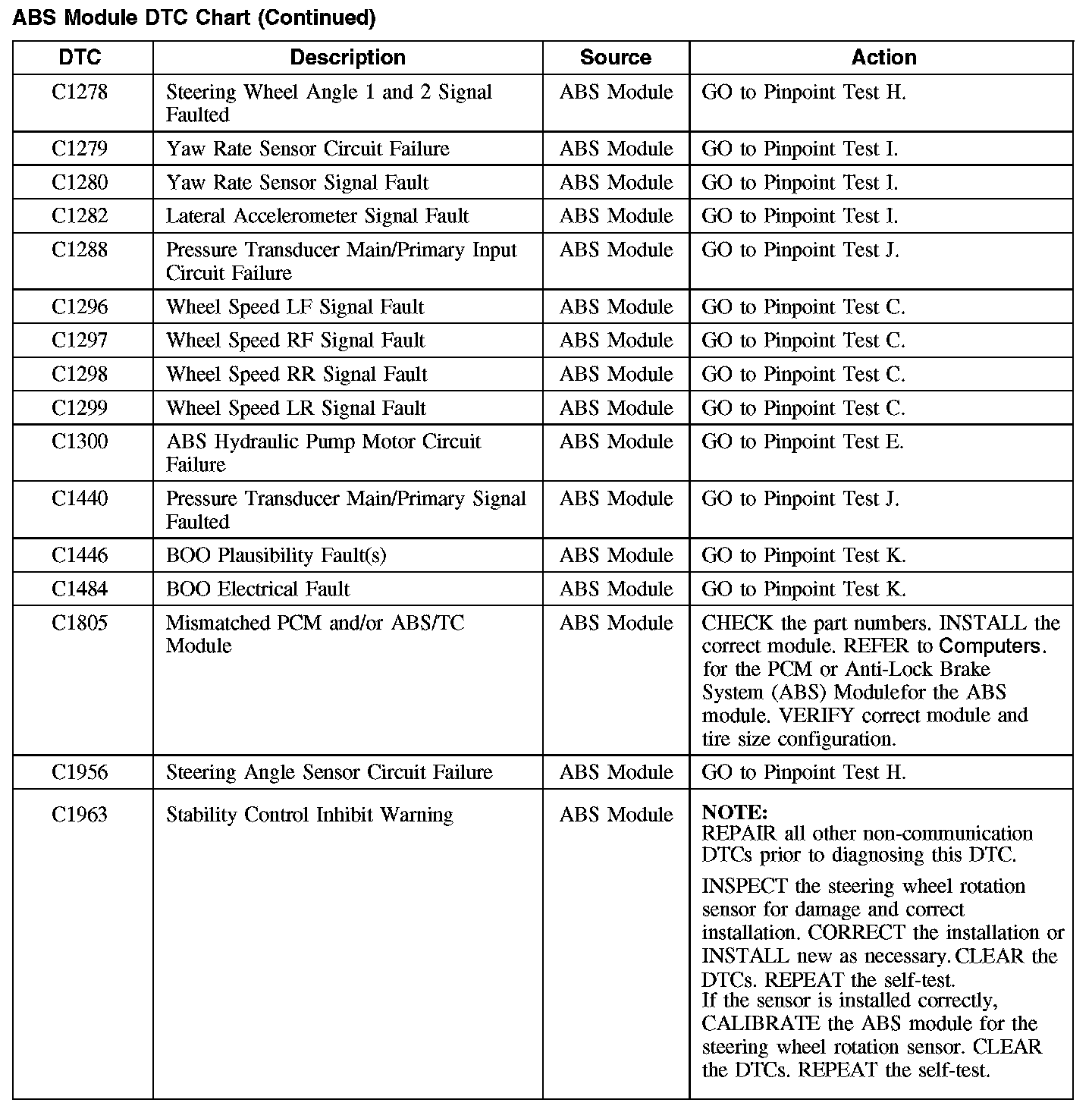

C1278-C1963:

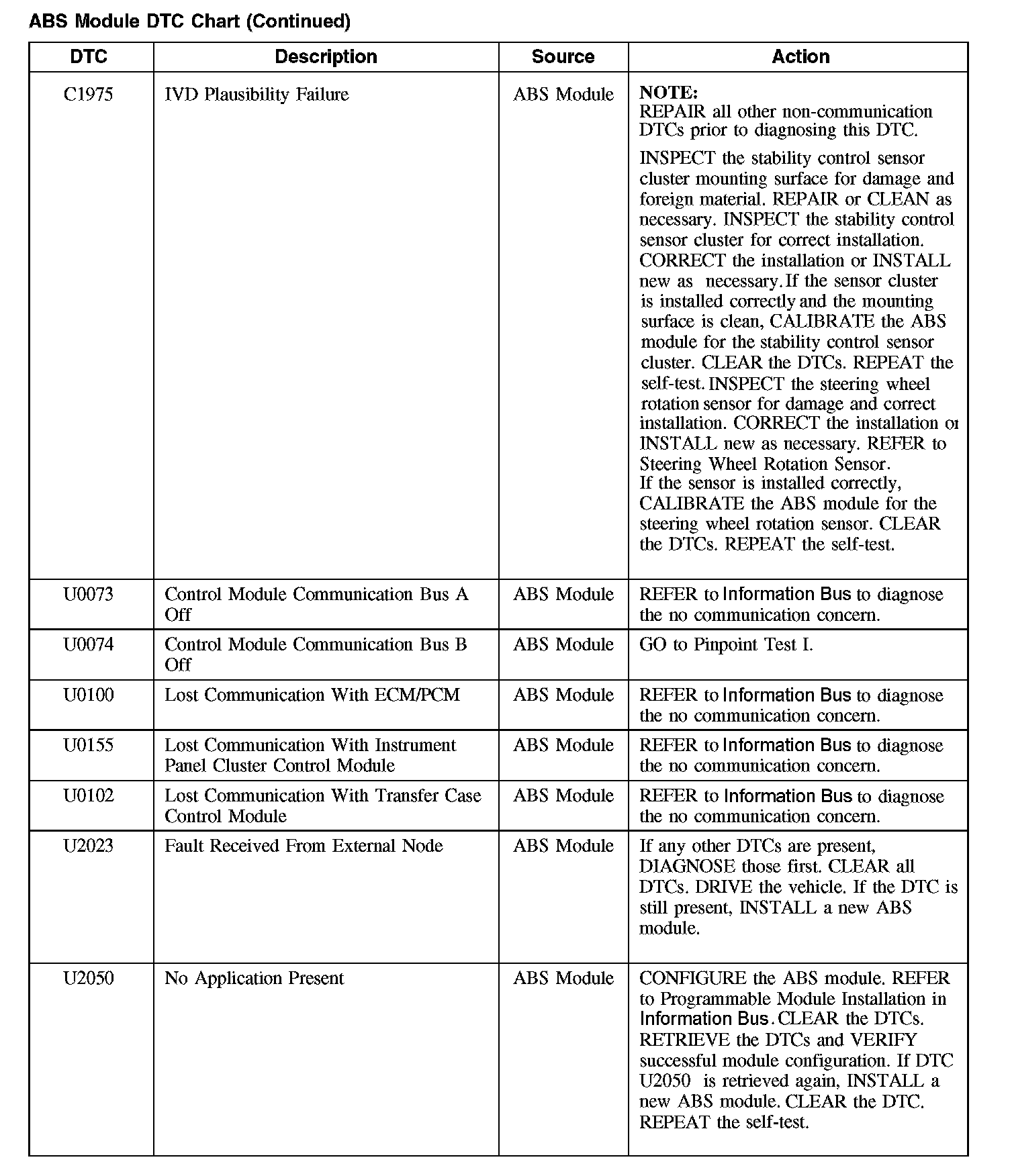

C1975 / U0073-U2050:
