Power Trunk / Liftgate Hazard Sensor: Service and Repair

PINCH STRIP SWITCH







Removal and Installation
1. Remove the liftgate trim panel.

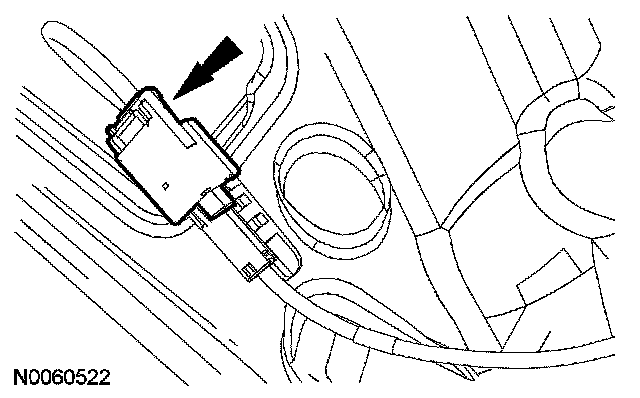

2. Disconnect the pinch strip electrical connector.

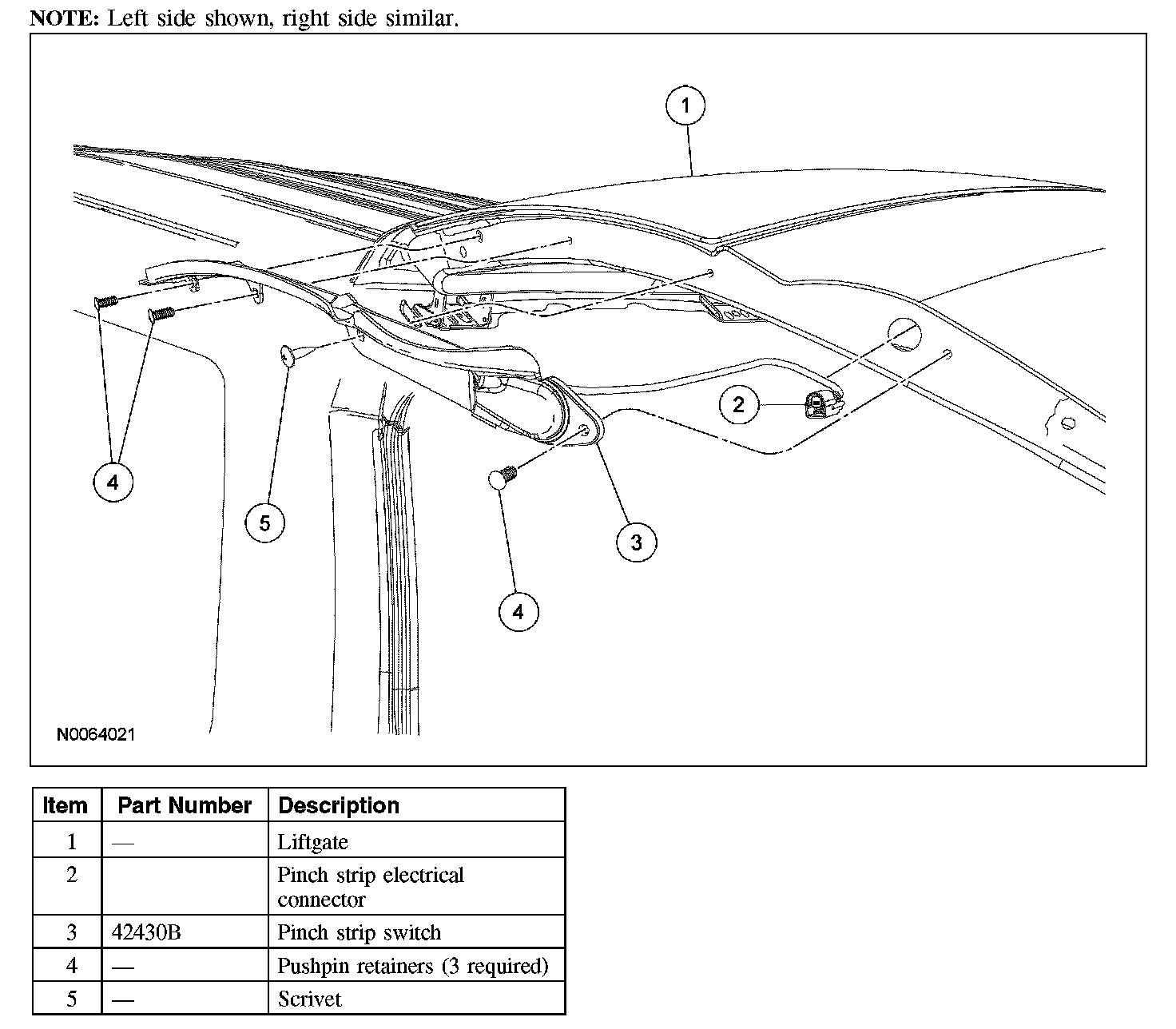

3. Remove the pinch strip.

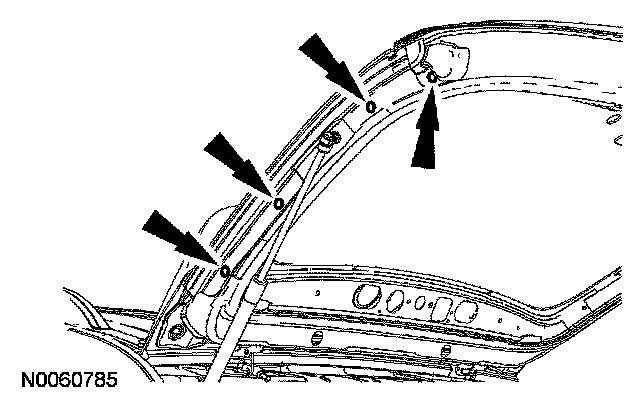

- Remove the pin-type retainers.
- Remove the grommet and route the harness out of the vehicle.







4. To install, reverse the removal procedure.
