Power Trunk / Liftgate Hazard Sensor
>>
Diagrams
>>

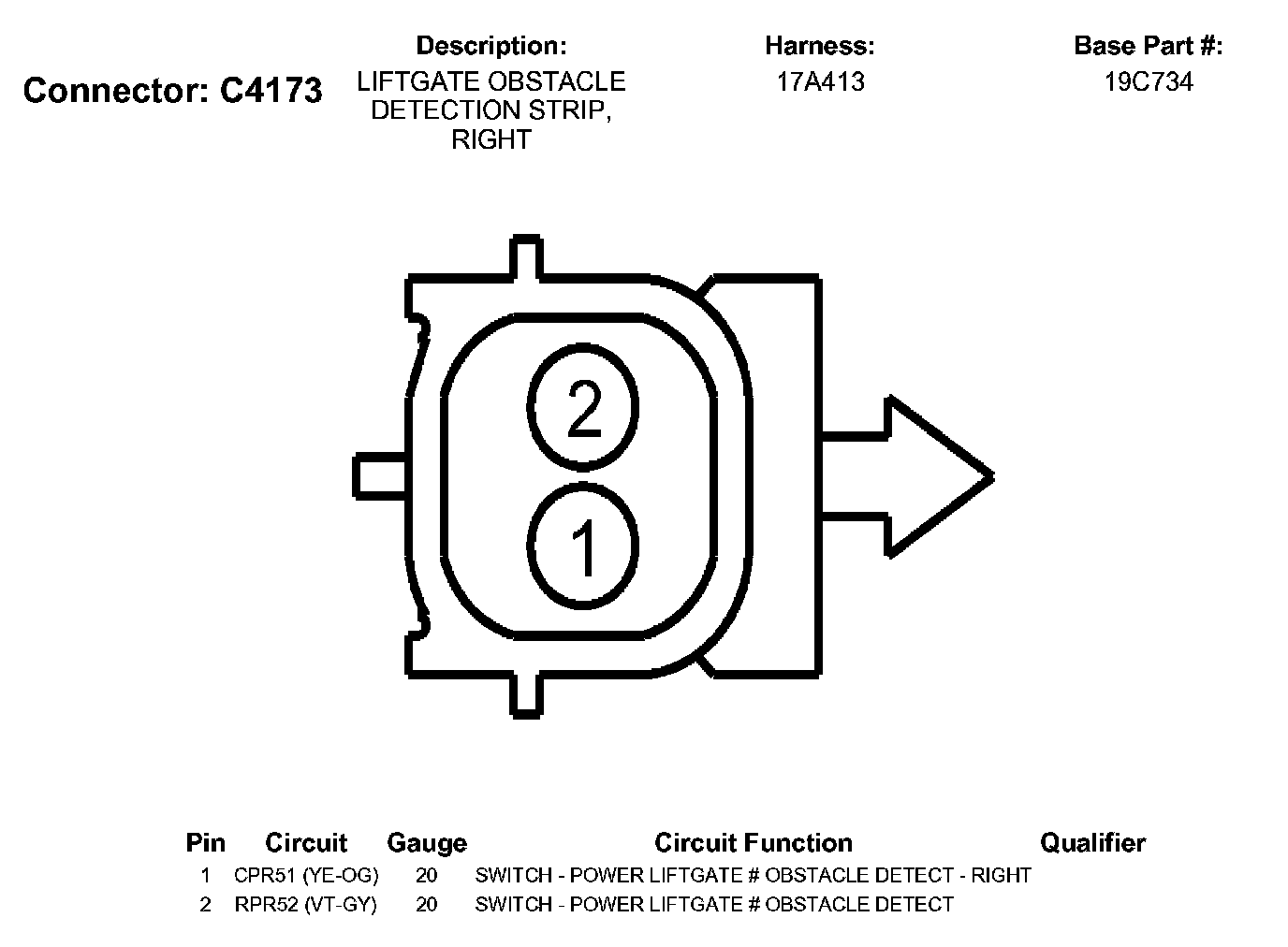

Liftgate Obstacle Detection Strip, Right
Liftgate Obstacle Detection Strip, Right
C4173:
